SKU: ksl1200x-m-f

Price: RFQ

Specifications

 KSL1200X-M-F is a muffle furnace with a 310S alloy chamber and a working temperature of 1100°C. The 9x9x10" refractory alloy chamber has a gas inlet and outlet which can remove bender or glue to prepare porous materials or fill inert gas for sintering oxygen-sensitive materials. The programmable temperature controller is separated from the furnace for safe operation. SPECIFICATIONS Heating Chamber Size: 12" x 12" x 12" ( 304 x 304 x 304 mm) Capacity: 27 liters Heating element: Ni-Cr-Al wire inserted a high purity fibrous alumina Three sides heating Max. Temperature: 1200 ° C Refractory Alloy Chamber 310S alloy chamber with hinged type door is placed inside the heating chamber Size: 9"x9"x10" ( 230x230 x 250 mm ) Capacity: ( ~13.2 Liter ) 8 mm ID gas inlet tube is put to the back of the furnace 8 mm ID" gas outlet tube is connected to the top of the furnace K type thermal couple is inserted into the inside chamber for temperature control Max. working Temperature: 1000 ° C Note: This is not an airtight chamber, but it is enough to keep smoking leaking to damage the heating chamber For air-sensitive material, suggest use 5%H2 + 95% Ar to keep the sample from oxidation Power 208~240V AC, Single phase, 50/60 Hz 12.5KW 60 A Breaker (installed) Note Power cable included, but without the plug. Please install a plug on your own Max Operating Temperature 1000 ° C with refractory alloy chamber inside 1200 ° C without refractory alloy chamber inside Temperature Stability: ±1 °C Suggested heating Rate: 10 ° C/min Temperature Controller The FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port with PC operation software included Eurotherm temperature controller with +/- 0.1 accuracies is available at the extra cost Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.

Heating Chamber

  • Size: 12" x 12" x 12" ( 304 x 304 x 304 mm)
  • Capacity: 27 liters
  • Heating element: Ni-Cr-Al wire inserted a high purity fibrous alumina
  • Three sides heating
  • Max. Temperature: 1200 °C
Refractory Alloy Chamber

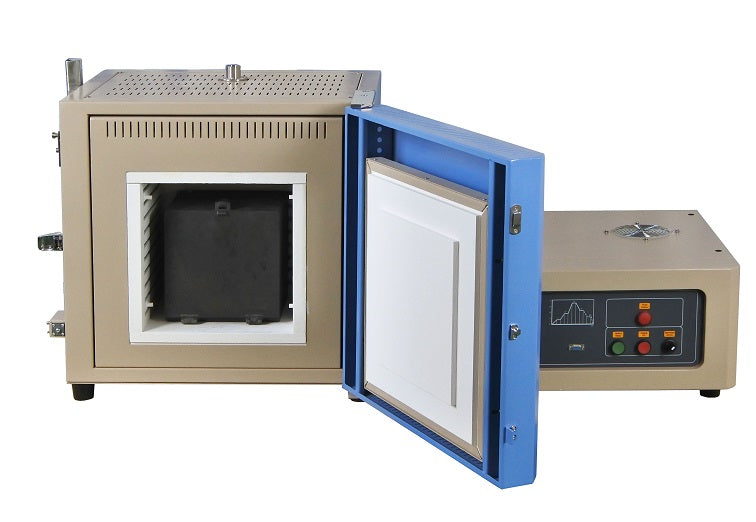

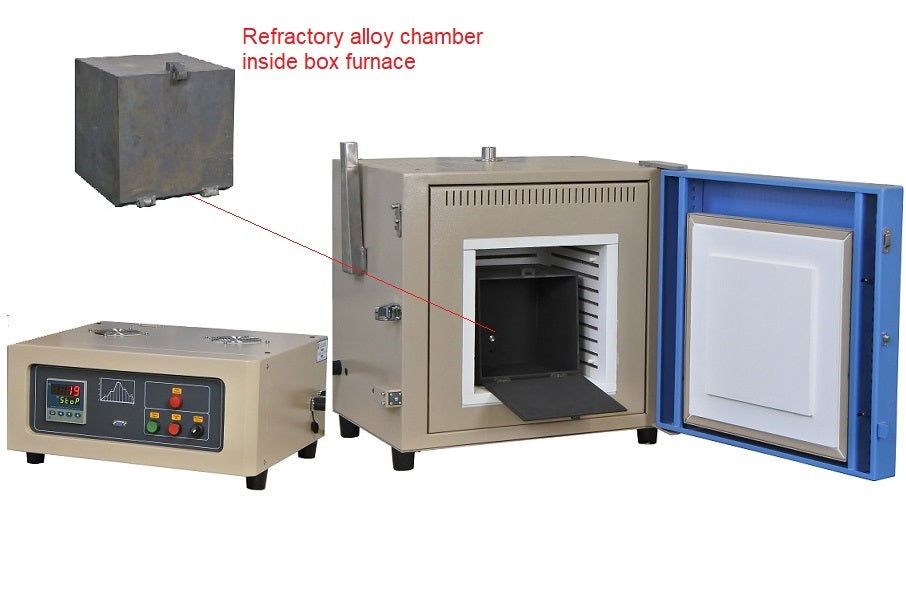

  • 310S alloy chamber with hinged type door is placed inside the heating chamber

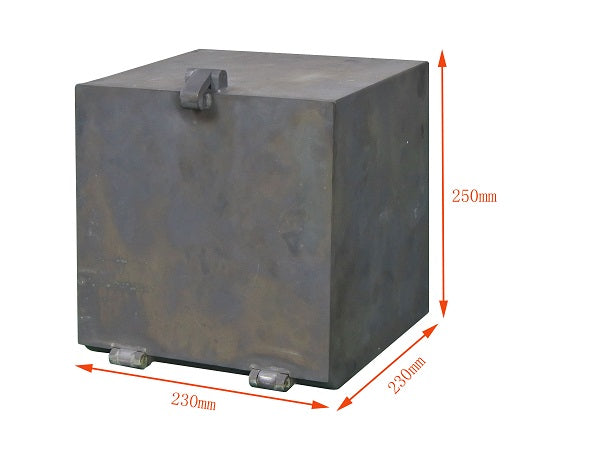

  • Size: 9"x9"x10" ( 230x230 x 250 mm )
  • Capacity: ( ~13.2 Liter )

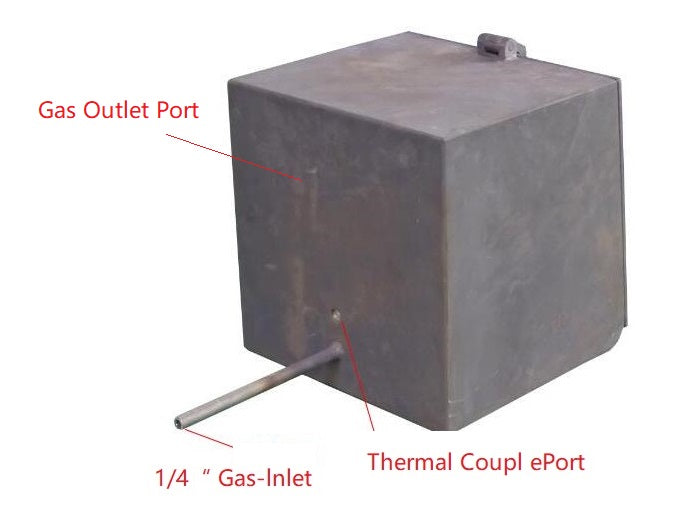

  • 8 mm ID gas inlet tube is put to the back of the furnace
  • 8 mm ID" gas outlet tube is connected to the top of the furnace
  • K type thermal couple is inserted into the inside chamber for temperature control
  • Max. working Temperature: 1000°C
  • Note:
    • This is not an airtight chamber, but it is enough to keep smoking leaking to damage the heating chamber
    • For air-sensitive material, suggest use 5%H2 + 95% Ar to keep the sample from oxidation

Power
  • 208~240V AC, Single phase, 50/60 Hz
  • 12.5KW
  • 60 A Breaker (installed)
  • Note Power cable included, but without the plug. Please install a plug on your own
Max Operating Temperature
  • 1000°C with refractory alloy chamber inside
  • 1200 °C without refractory alloy chamber inside
  • Temperature Stability: ±1 °C
  • Suggested heating Rate: 10 °C/min

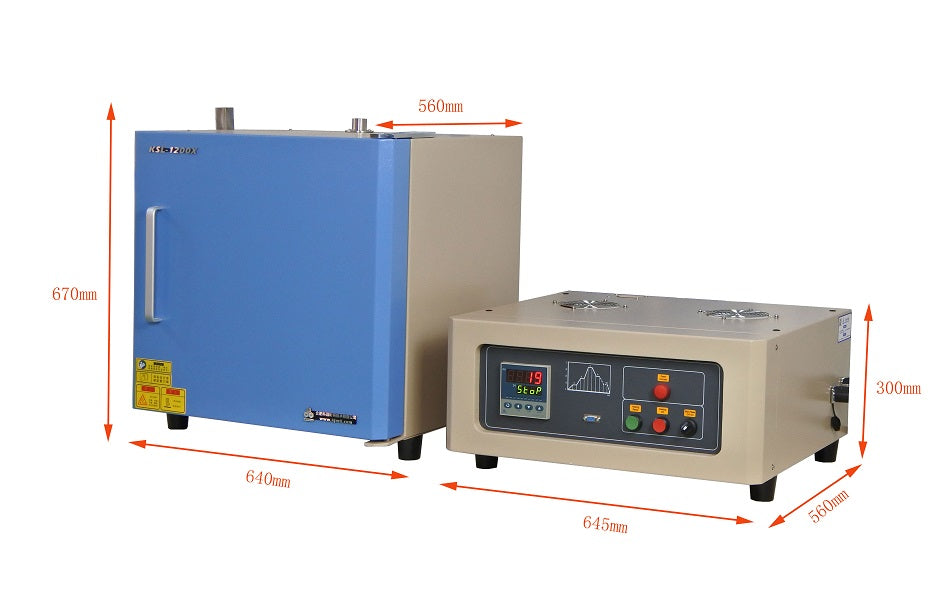

Temperature Controller

  • The FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port with PC operation software included
  • Eurotherm temperature controller with +/- 0.1 accuracies is available at the extra cost
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
