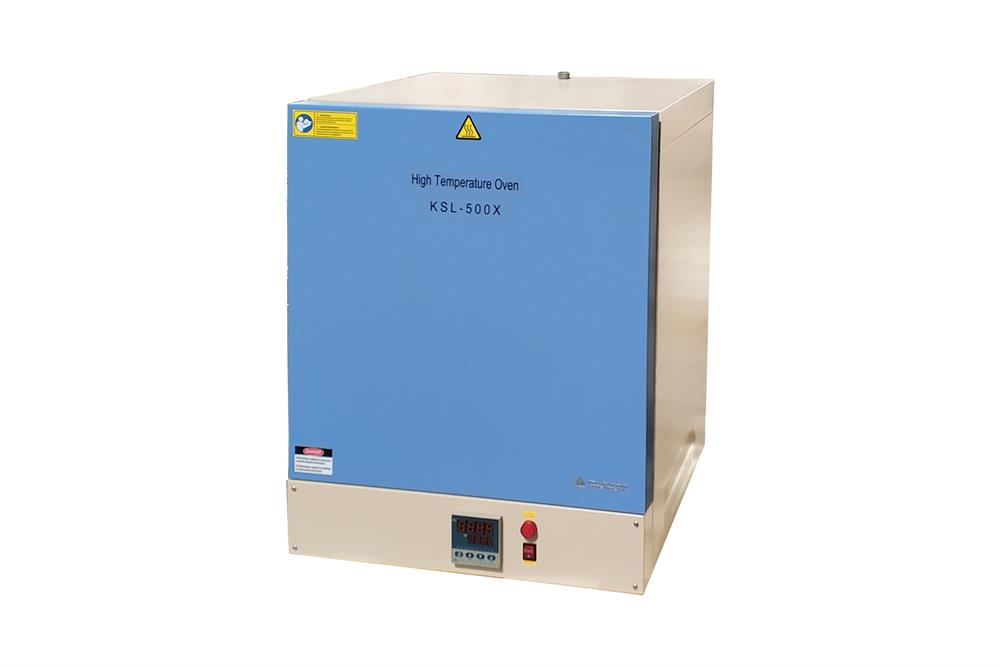

500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71
  • 500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71
  • 500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71
500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71

500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71

SKU: ksl-500x-71

Price: RFQ

Specifications

 KSL-500X-71 is a 500°C Oven that combines forced-air circulation and programmable temperature controller to achieve a uniform furnace for a variety of laboratory applications like drying, storing, annealing.It is cost-effective for heating equipment of material R&D laboratories. Note: MTI performs test runs prior to shipment to ensure the quality of the oven, as a result, the oven chamber will come with a slight brown tint indicating the furnace has been heated up to a high temperature once. SPECIFICATIONS: Working Voltage 208-240V AC, Single Phase, 50/60Hz 6 ft L Power cable is included, but no plug. Please install the plug by yourselves or order a plug at the link below based on your lab power panel Max. Power Consumption 2200W ( 15A break required ) Max. Operating Temperature 500°C for < 30 minutes Continuous Working Temperature 0~400°C Max. Heating Rate 7°C/min (0~300°C); 4°C/min (300~400°C); 0.5°C/min ( 400 - 500°C) Temperature Uniformity ± 2°C Temperature Controller 30 segments programmable digital temperature controller with +/- 1°C accuracy PID auto-tune function Over-temperature and thermal couple break protection PC control software and module are available at extra cost Chamber Interior Material: Stainless Steel and Fibrous Refractory Shell Dimensions: 335mm (L) x 450mm (W) x 450mm (H) Volume: 67L Exhaust port: 1 " diameter on top of the oven Note: chamber color is yellow because testing in the air before shipping Thermocouple Type K type included Sensor The overheat protection sensor automatically cuts power if over-heated Shelves 2 stainless steel shelves were included , and and max loading of 8 Kg per shelf Compliance CE Certificate NRTL or CSA Certificate is available upon request at extra cost.

Working Voltage 208-240V AC, Single Phase, 50/60Hz
6 ft L Power cable is included, but no plug. Please install the plug by yourselves or order a plug at the link below based on your lab power panel
Max. Power Consumption 2200W ( 15A break required )
Max. Operating Temperature 500°C for < 30 minutes
Continuous Working Temperature 0~400°C
Max. Heating Rate
  • 7°C/min (0~300°C);
  • 4°C/min (300~400°C);
  • 0.5°C/min ( 400 - 500°C)
Temperature Uniformity ± 2°C
Temperature Controller
  • 30 segments programmable digital temperature controller with +/- 1°C accuracy
  • PID auto-tune function
  • Over-temperature and thermal couple break protection
  • PC control software and module are available at extra cost
Chamber
  • Interior Material: Stainless Steel and Fibrous Refractory Shell
  • Dimensions: 335mm (L) x 450mm (W) x 450mm (H)
  • Volume: 67L
  • Exhaust port: 1 " diameter on top of the oven
  • Note: chamber color is yellow because testing in the air before shipping
Thermocouple Type K type included
Sensor The overheat protection sensor automatically cuts power if over-heated
Shelves 2 stainless steel shelves were included , and and max loading of 8 Kg per shelf
Compliance

 CE Certificate
NRTL or CSA Certificate is available upon request at extra cost.
