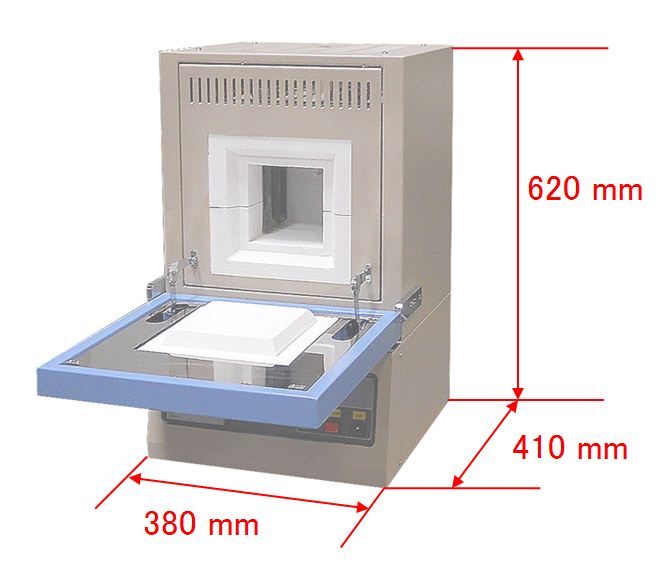

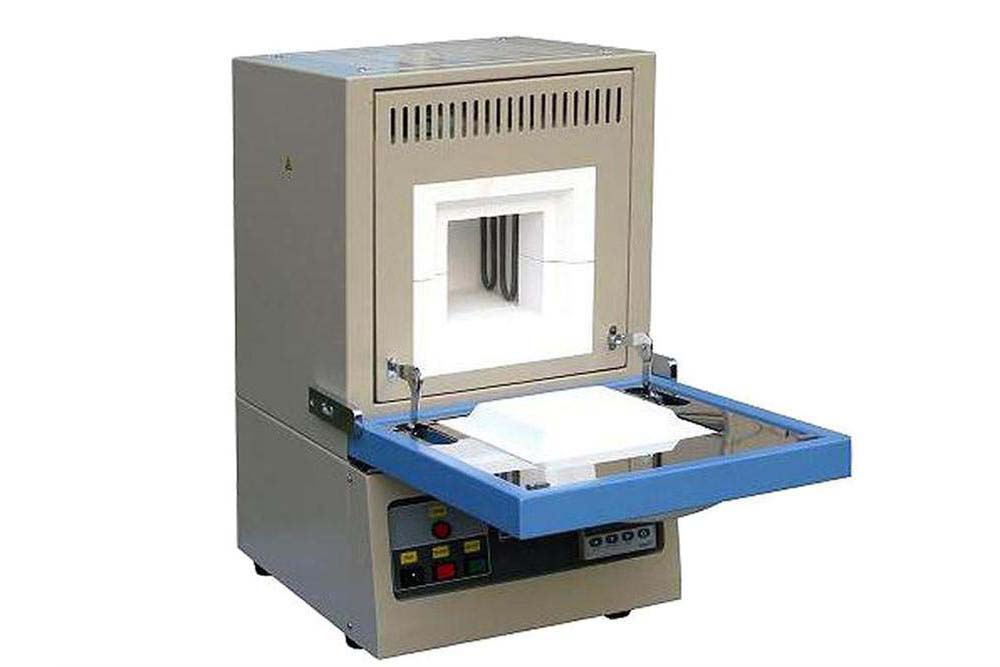

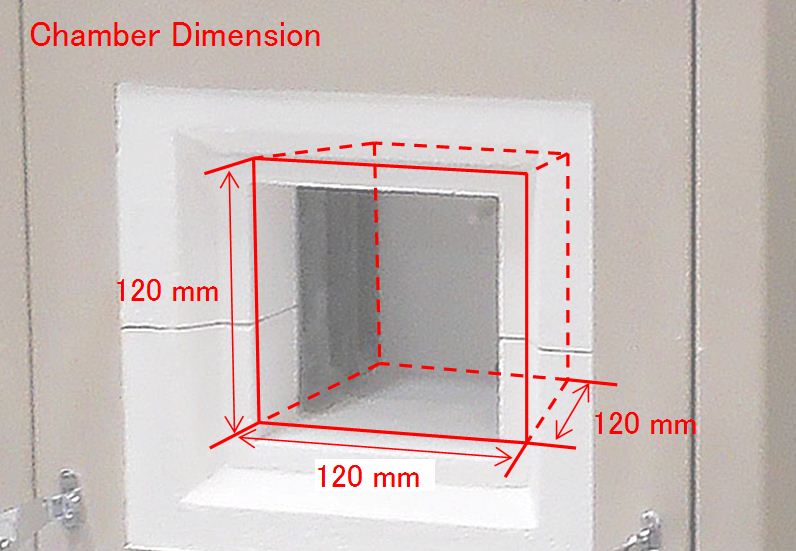

1500C Compact Muffle Furnace (4.7"x4.7"x 4.7",1.7L) with Programmable Controller - KSL1500XS

• High-quality 1700ºC alumina fiber inner insulator and double-layer steel outer layer with air cooling fan to keep case temperature below 55ºC
• The design of the drop-down door is for loading samples easy.
• The gas inlet and venting port are installed for use at oxygen or inert gas-enriched atmospheres.

• AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required)
• 2.5KW
• Note Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement

Temperature Uniformity

+/- 7°C @ 1000°C in the center W80 x D60 x H80 mm area

• FA-YD518P-AG temperature controller is included.
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling, and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
• Labview-Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters operating range.

• You may order an alumina crucible by clicking the picture below-right.
• The furnace can be upgraded to 1700C ( Click pic right to order )



• CE Certified
• The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost.

• Please clicks here to learn how to DIY a gas purging system.

• For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min.
• This furnace lacks vacuum sealing, and toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Performance degradation (i.e. furnace can not reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements.
