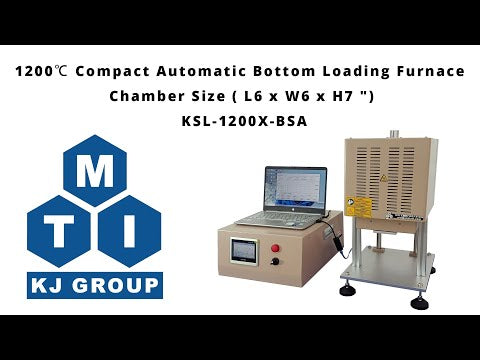

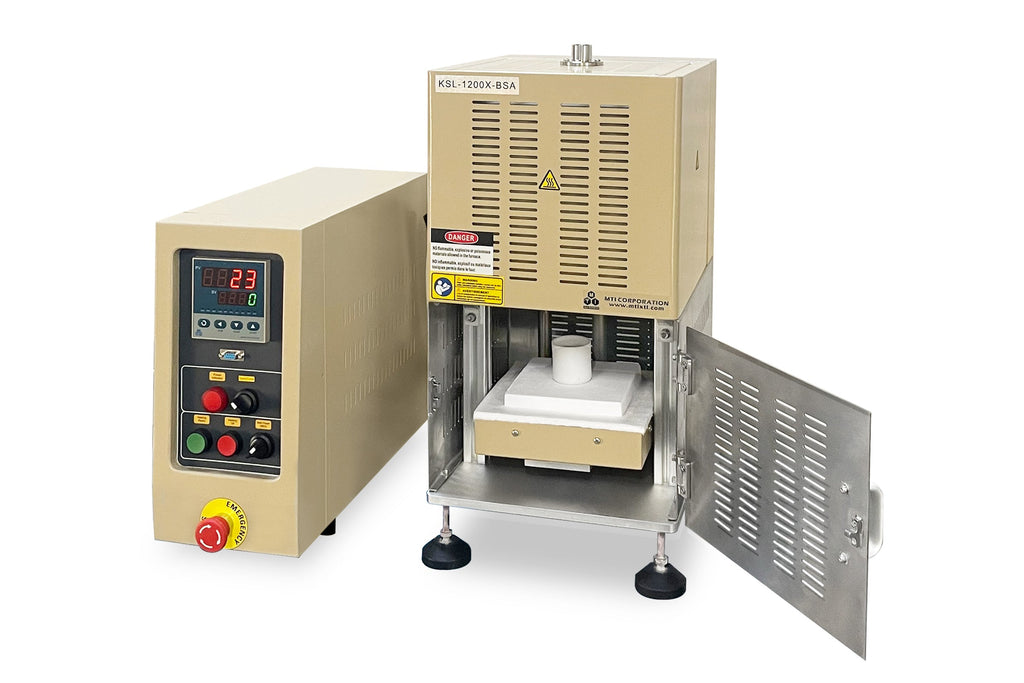

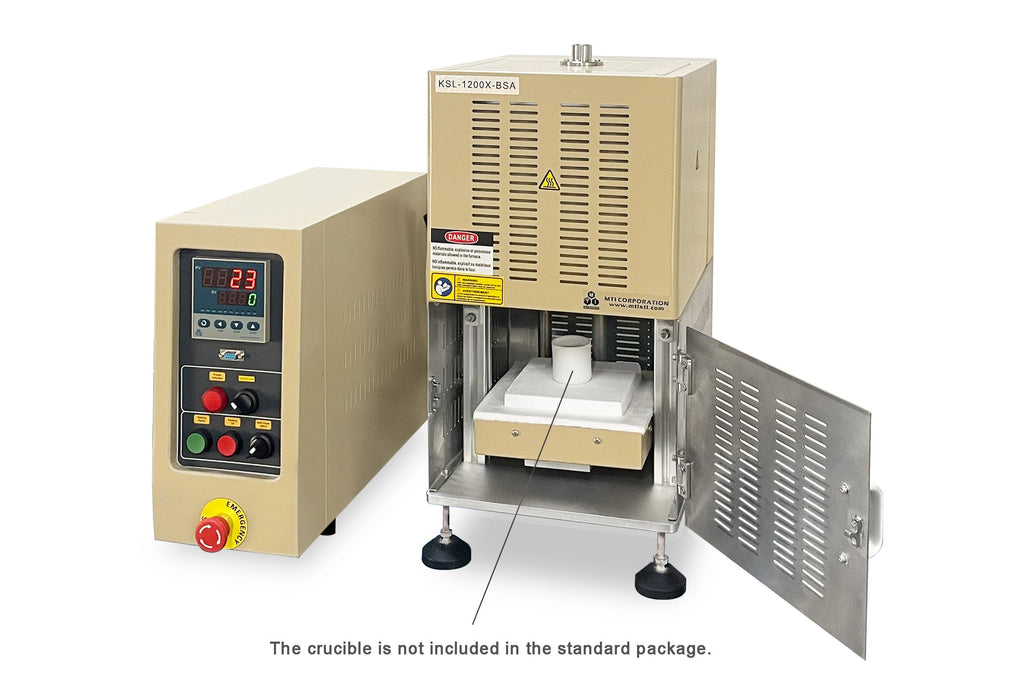

1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
  • 1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA
1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA

1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA

SKU: ksl-1200x-bsa

Price: RFQ

Specifications

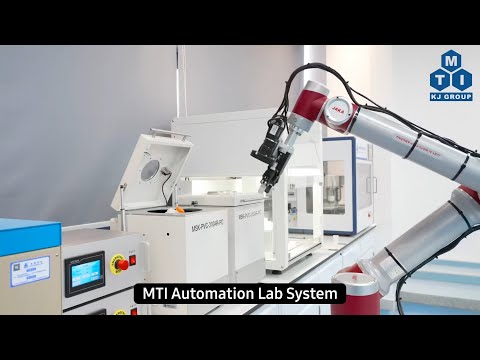

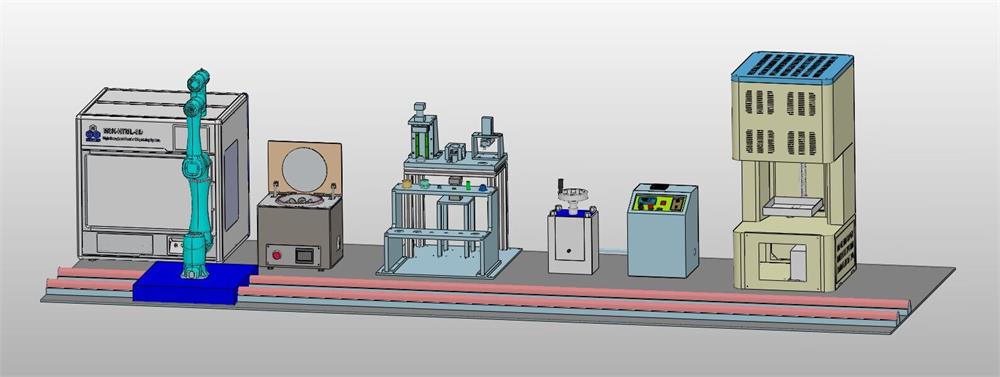

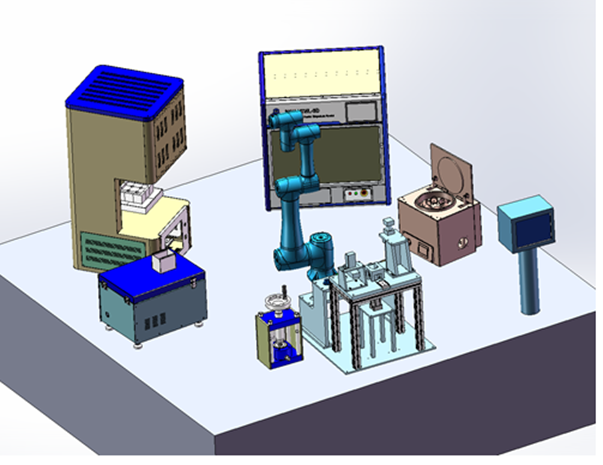

 KSL-1200X-BSA is a compact automatic bottom-loading furnace controlled by a laptop with a 6 x 6 x 7" heating chamber and max. working temperature of 1200 °C. The compact furnace can be placed in a standard glovebox and can be connected to a robot to achieve fully automated operation in an autonomous material research laboratory. Rapid cooling is available to blow inert gas on the bottom of the furnace when the sample is down from the heated chamber SPECIFICATIONS Power 208 - 240 VAC, 50/60 Hz, single phase Max. Power: 2.5 kW Note： Power cable included but without a plug. Please install a plug on your own or click the link below to choose a plug according to your country or your lab requirement. (Pic.1） The KF 40 feedthrough of a power cord （Pic. 2） for the glovebox (Pic.3) is available upon request at extra cost. Pic. 1 Pic. 2 Pic. 3 Heating chamber 150mm(W) x 155mm(L) x 180mm(H), ( 6"x6"x7") 1300°C grade resistance heating coil Capacity： 4.2 Liter or 0.44 cubic ft Thermocouple: K-type Furnace Opening Clearance 140mm Maximum Working Temperature 1100 °C, continuously 1200 °C, < 30 minutes Heating Rate: 10°C / minute Touch Screen Control Panel Automatic data recording (up to 1 month) Temperature profile: heating, dwell time, and cooling up to 50 segments with accuracy +/- 1oC The bottom door will be closed after sample loading and be opened after finishing the heating program. RJ45 communication interface, can be connected to a PC or a wireless router Communication protocol is open to existing customers, allowing the connection of equipment with robots for unmanned operation. Remote Computer Control (Optional at Extra Cost) Computer operation software is ONLY sold with pre-installed and tested computer as a kit Can control multiple units at same time Fast Cooling Rapid cooling is available to blow inert gas automatically  on the bottom of the furnace when the sample is down from the heated chamber Cooling rate may reach 20oC/S   ( 1200oC/minute) Compliance NRTL or CSA certification is available upon request at extra cost.

Power
  • 208 - 240 VAC, 50/60 Hz, single phase
  • Max. Power: 2.5 kW
  • Note： Power cable included but without a plug. Please install a plug on your own or click the link below to choose a plug according to your country or your lab requirement. (Pic.1）
  • The KF 40 feedthrough of a power cord （Pic. 2） for the glovebox (Pic.3) is available upon request at extra cost.

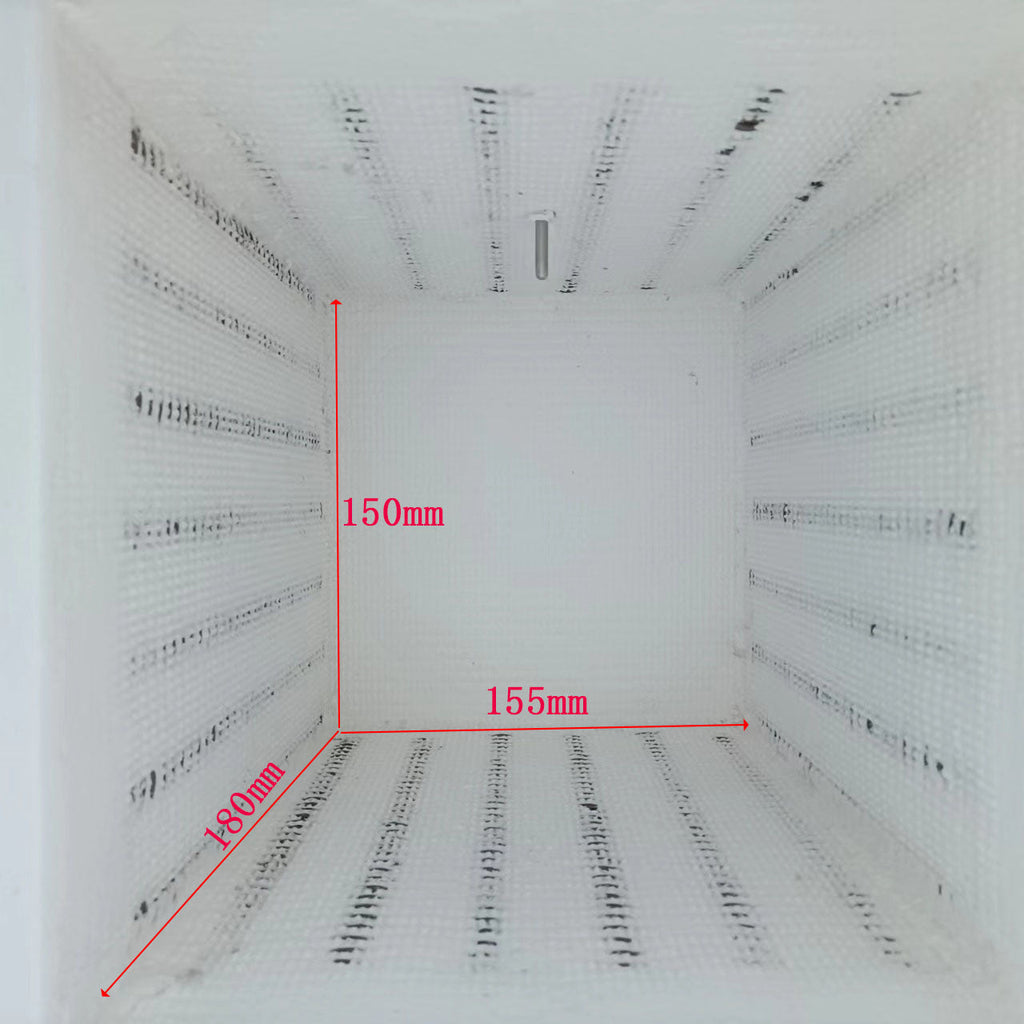

Heating chamber
  • 150mm(W) x 155mm(L) x 180mm(H), ( 6"x6"x7")
  • 1300°C grade resistance heating coil
  • Capacity： 4.2 Liter or 0.44 cubic ft
  • Thermocouple: K-type
Furnace Opening Clearance
  • 140mm Maximum
Working Temperature
  • 1100 °C, continuously
  • 1200 °C, < 30 minutes
  • Heating Rate: 10°C / minute

Touch Screen Control Panel
  • Automatic data recording (up to 1 month)
  • Temperature profile: heating, dwell time, and cooling up to 50 segments with accuracy +/- 1oC

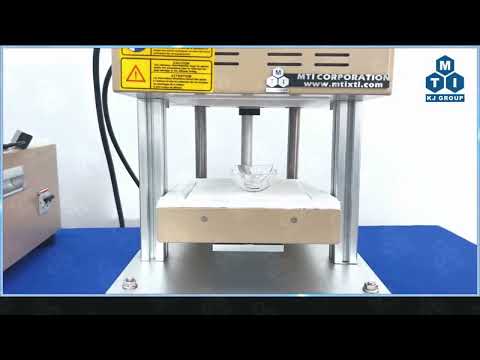

  • The bottom door will be closed after sample loading and be opened after finishing the heating program.
  • RJ45 communication interface, can be connected to a PC or a wireless router
  • Communication protocol is open to existing customers, allowing the connection of equipment with robots for unmanned operation.

Remote Computer Control
(Optional at Extra Cost)
  • Computer operation software is ONLY sold with pre-installed and tested computer as a kit
  • Can control multiple units at same time

Fast Cooling
  • Rapid cooling is available to blow inert gas automatically  on the bottom of the furnace when the sample is down from the heated chamber
  • Cooling rate may reach 20oC/S   ( 1200oC/minute)

Compliance
  • NRTL or CSA certification is available upon request at extra cost.
