SKU: imcs-1700vc

Price: RFQ

Description

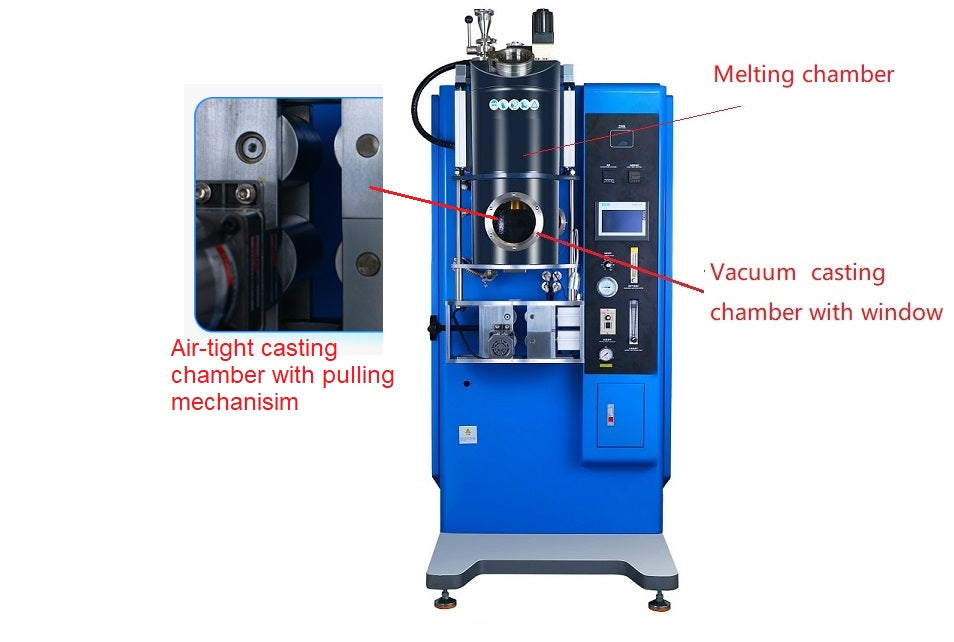

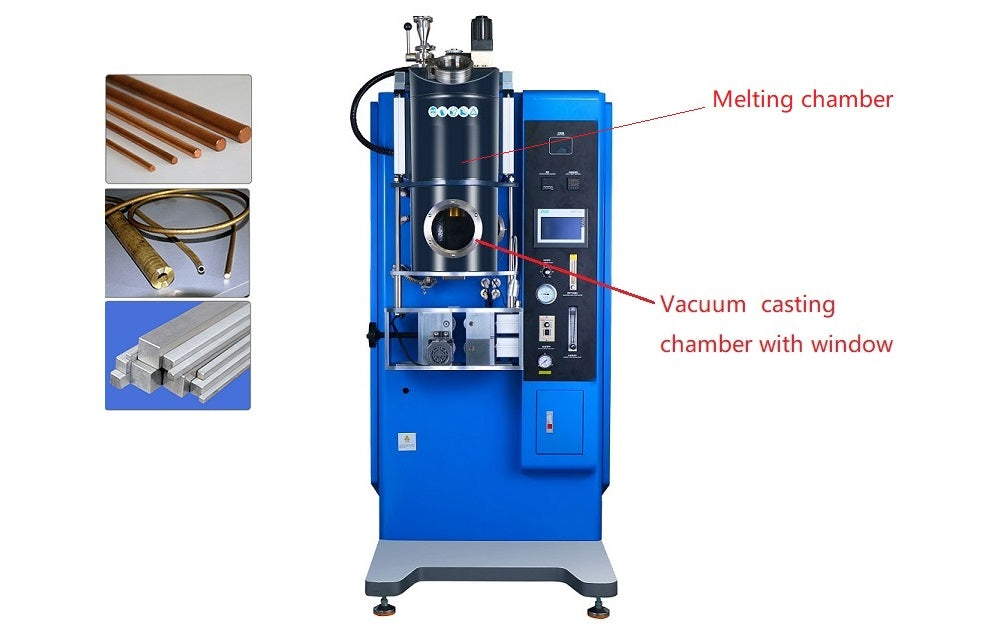

 IMCS-1700VC is an induction melting and continuous casting furnace under vacuum or inner gas, which can cast the rod, plate, or wire continuously for various alloys up to 5 kg at Max. 1700 ºC . This device is necessary for wire preparation of metallic wire for AM ( Click here to see details) SPECIFICATIONS: One set of standard graphite crucibles with thermal insulation is included for melting and solidification Graphite crucible dimension:160 ID * 220H (mm) ~2 Liter Max. melting capacity 5 kg ( Stainless steel based ) Max. Melting point: 1700ºC Air-tight chamber in the bottom of the melting chamber with pulling down mechanism Pulling speed: 8 - 10 0cm/min adjustable Types and sizes of castable profiles (Please discuss this with our engineer for your application before purchasing it.) Graphite lower mold: M50 * 150mm Protective Gas: argon, nitrogen with a purity of 9999 (2L per hour needed) Power Requirements Input Voltage: 208 - 240VAC, Three Phases, 50/60Hz Max. Current: 70A Output: 25 kW ( 100A air breaker is required ) Melting Chamber Stainless steel chamber with Secondary charge and stiring function. Casting Wire: φ6-φ30mm Plate: Width: 2-70mm Temperature Control Max. Working temperature 1700ºC B-type thermocouple allows the user to closely control and monitor the temperature with the most accurate readings Touch screen digital temperature control with +/- 2ºC accuracy Vacuum and Inert Gas Vacuum requirement: 1bar (-29.9" Hg) at sea level A mechanical vacuum/pressure gauge is included Inert Gas Requirement: 5 liters/ minute @ 0.7 bar (10 psi) hi-purity nitrogen or argon Double stage rotary vane vacuum pump is included with this casting system ( click picture left tp see specs) Water Cooling 58L / min Flow, 17K BTU/hr recirculating water chiller is included Winding device (optional) An automatic winding device is optional The device can wind wire up to 20Kg Compliance CE certified NRTL certification is available upon request at an extra cost

Power Requirements
  • Input Voltage: 208 - 240VAC, Three Phases, 50/60Hz
  • Max. Current: 70A
  • Output: 25 kW ( 100A air breaker is required )
Melting Chamber

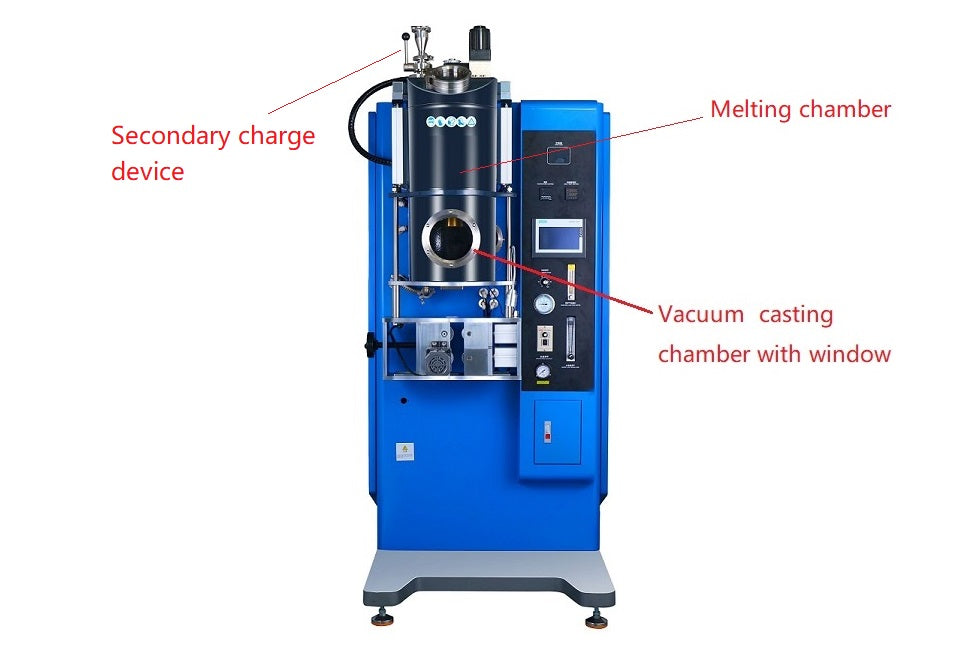

Stainless steel chamber with Secondary charge and stiring function.

Casting
  • Wire: φ6-φ30mm
  • Plate: Width: 2-70mm
Temperature Control
  • Max. Working temperature 1700ºC
  • B-type thermocouple allows the user to closely control and monitor the temperature with the most accurate readings
  • Touch screen digital temperature control with +/- 2ºC accuracy
Vacuum and Inert Gas

  • Vacuum requirement: 1bar (-29.9" Hg) at sea level
  • A mechanical vacuum/pressure gauge is included
  • Inert Gas Requirement: 5 liters/ minute @ 0.7 bar (10 psi) hi-purity nitrogen or argon
  • Double stage rotary vane vacuum pump is included with this casting system ( click picture left tp see specs)
Water Cooling

  • 58L / min Flow, 17K BTU/hr recirculating water chiller is included

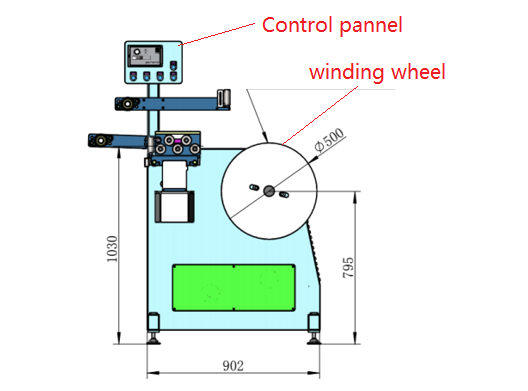

Winding device (optional)
  • An automatic winding device is optional
  • The device can wind wire up to 20Kg
Compliance CE certified
NRTL certification is available upon request at an extra cost
