Description

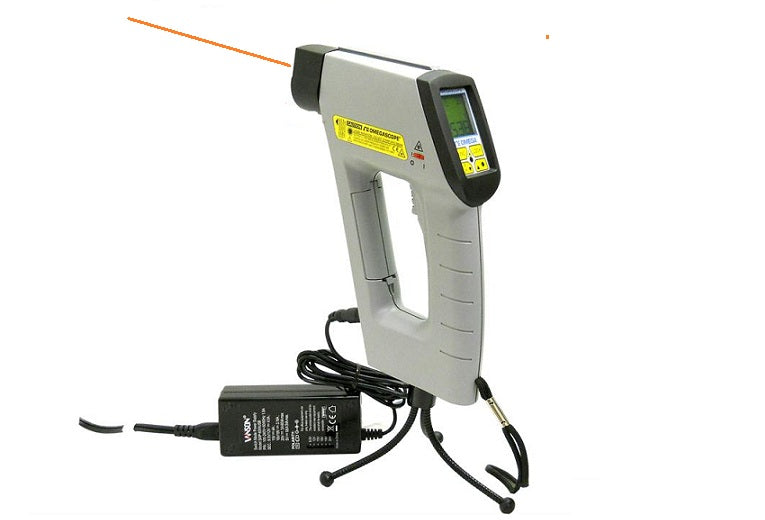

EQ-OM-OS524E infrared thermometers offer solutions for many non-contact temperature measurement applications. Their emissivity, adjust in 0.01 increments, allows them to measure a variety of surfaces. A custom backlit LCD features dual digital display of the current and max, min, difference, or average temperatures simultaneously. Standard features include high and low audible and visual alarms, 1 mV/degree analog output, RS232 output, and temperature data storage.
Features:
- Temperature measurement: 538C - 2482°C

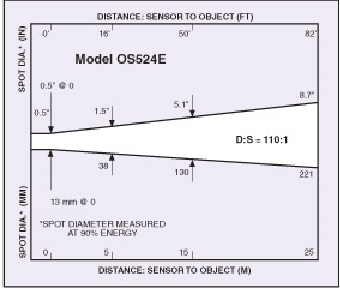

- Measurable target distances from 5 inches to approximately 100 feet.
- Emissivity adjustable from 0.1 to 1.00 in 0.01 steps provides ease of use when measuring a variety of surfaces.
- Built-in Laser sighting in Circle & Dot configurations.
- Thermocouple input available.
- An electronic trigger lock feature set via the keypad allows continuous temperature measurement up to 10 times per second.
- Audible and visual alarms. The high and low alarm points are set via the keypad.
- 0.5 mV per degree (°F or °C) analog output, which allows interfacing with data acquisition equipment (including chart recorders, dataloggers and computers).
- Last temperature recall (Hold).
- Backlit display useful in low ambient light conditions.
- Powers from 4 AA size batteries or an AC ( 110-240V) to DC 9.5V adapter (Included).
- One mini flexible tripod stand is included
- RS232 serial communication to a PC or printer. This allows downloading data for further analysis.
- Ambient target temperature compensation. This provides more accuracy for measuring low emissivity targets.
- Record up to 800 temperature data points. Review the recorded data on the thermometer LCD, as well as downloading the data to a PC.
- Made in USA and two years warranty.
Specifications
-
Accuracy: +/- 1% rdg or 2°C (3.6°F), whichever is greater
-
Repeatability: +/- (1% rdg + 1 digit)
-
Resolution: 1°C or 1°F
-
Response Time: 100 ms
-
Spectral Response: 2 to 2.5 microns
-
Emissivity: 0.10 to 1.00 in 0.01 increments
-
Operating Temperature: 0 to 50°C (32 to 122°F)
-
Power: 4 “AA” lithium batteries (2 sets included) or AC adaptor
-
Battery Life: 14 days, lithium; 80 hours, alkaline
-
Tripod Mount: 1⁄4 to 20 UNC
-
Display: Backlit LCD; displays current and min or max, differential, average temperatures simultaneously
-
Alarm: High and low alarm standard, with audible and visual indication
-
RS232: 2-way communications
