SKU: gsl-3f-ss

Price: RFQ

Description

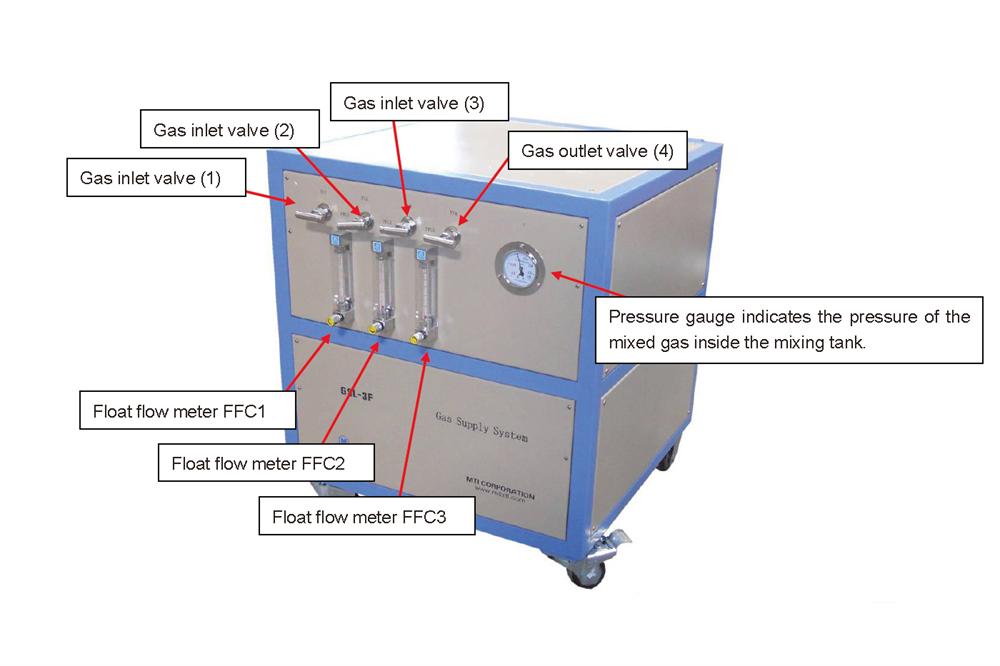

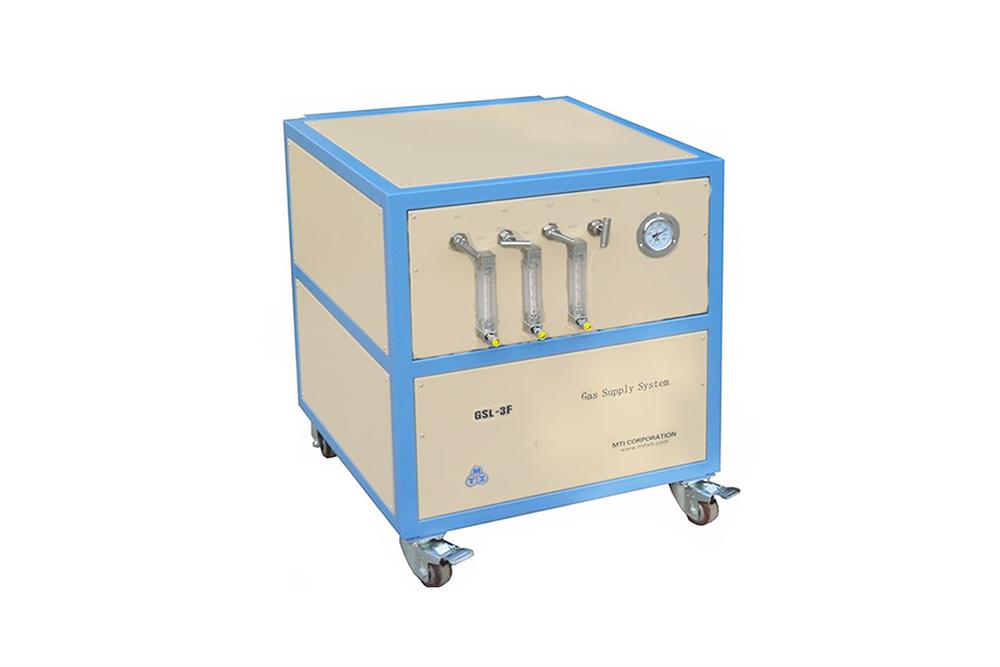

 The GSL-3F-SS is designed to mix and deliver 3 different gases to the MTI CVD system at a low cost. The system is installed in a heavy-duty mobile cart where a tube furnace can be placed on top of it. The flow rates are adjustable via three float flow meters. SPECIFICATIONS Flow rate A: 10 - 100 mL/min B: 16 - 160 mL/min C: 25 - 250 mL/min Accuracy 4% F.S.) Diaphragm Pressure Gauge - 0.1 - 0.15 MPa (for gas mixing tank) Gas Mixing Tank SS304 Gas Schematics Three needle valves for three gas inlets One valve for a gas outlet Gas Inlets and Outlets 1/4" compression tube fittings 12' length 1/4" PTFE pipe is included for immediate use Dimenstions 600 mm (L) x 600 mm (W) x 650 mm ( H) Optionals CVD & PECVD Furnace Bubbler or evaporator for CVD Load limit 400 lbs

Flow rate
  • A: 10 - 100 mL/min
  • B: 16 - 160 mL/min
  • C: 25 - 250 mL/min
  • Accuracy 4% F.S.)
Diaphragm Pressure Gauge
  • -0.1 - 0.15 MPa (for gas mixing tank)
Gas Mixing Tank
  • SS304

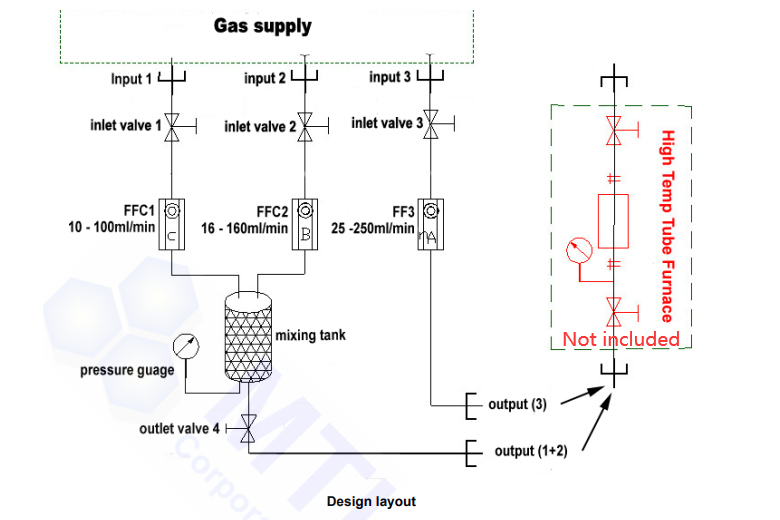

Gas Schematics
  • Three needle valves for three gas inlets
  • One valve for a gas outlet
Gas Inlets and Outlets
  • 1/4" compression tube fittings
  • 12' length 1/4" PTFE pipe is included for immediate use
Dimenstions
  •  600 mm (L) x 600 mm (W) x 650 mm ( H)

Optionals		 CVD & PECVD Furnace Bubbler or evaporator for CVD

Load limit 400 lbs
