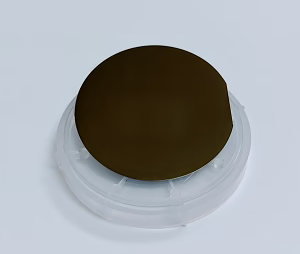

Ge Wafer (100)N-type Undoped, 1" dia x 0.5 mm , 2SP,R:>50 ohm.cm - GEUa25D05C2R50

Specification

• Growing Method:              CZ
• Orientation:                    (100) +/_0.5 Deg.
• Wafer Size:                      1" dia x  500 microns
• Surface Polishing:           two side epi polished
• Surface roughness:         RMS or Ra:~ 10 A(By AFM)
• Doping:                          Undoped
• Conductor type:              N-type
• Resistivity:                     >50 Ohms/cm (If you would like to measure the resistivity accurately, please order our Portable 4 Probe Resistivity Testing Instrument.)
• Package:                           under 1000 class clean room

Typical Properties:

• Structure:                         Cubic, a = 5.6754 A
• Density:                            5.323 g/cm3 at room temperature
• Melting Point:                    937.4 ^oC
• Thermal Conductivity:         640
