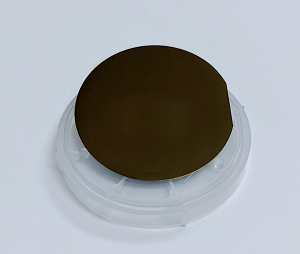

Ge Wafer (100) 2" dia x 0.5 mm, 1SP, N type (Sb doped), resistivity:2.5-2.7ohm-cm - GESba50D05C1R2pt7BeUS

Specification

• Growing Method: CZ
• Orientation: (100) +/- 0.23 Deg.
• Wafer Size: 2" dia x  500 microns
• Surface Polishing: one side epi polished
• Surface roughness: RMS or Ra< 5 A ( by AFM)
• Doping: Sb Doped
• Conductor type: N-type
• Resistivity: 2.5-2.7 ohm-cm (If you would like to measure the resistivity accurately, please order our Portable 4 Probe Resistivity Testing Instrument
• Package: under 1000 class clean room

Typical Properties:

• Structure: Cubic, a = 5.6754 A
• Density: 5.323 g/cm3 at room temperature
• Melting Point: 937.4 ^oC
• Thermal Conductivity: 640
