Description

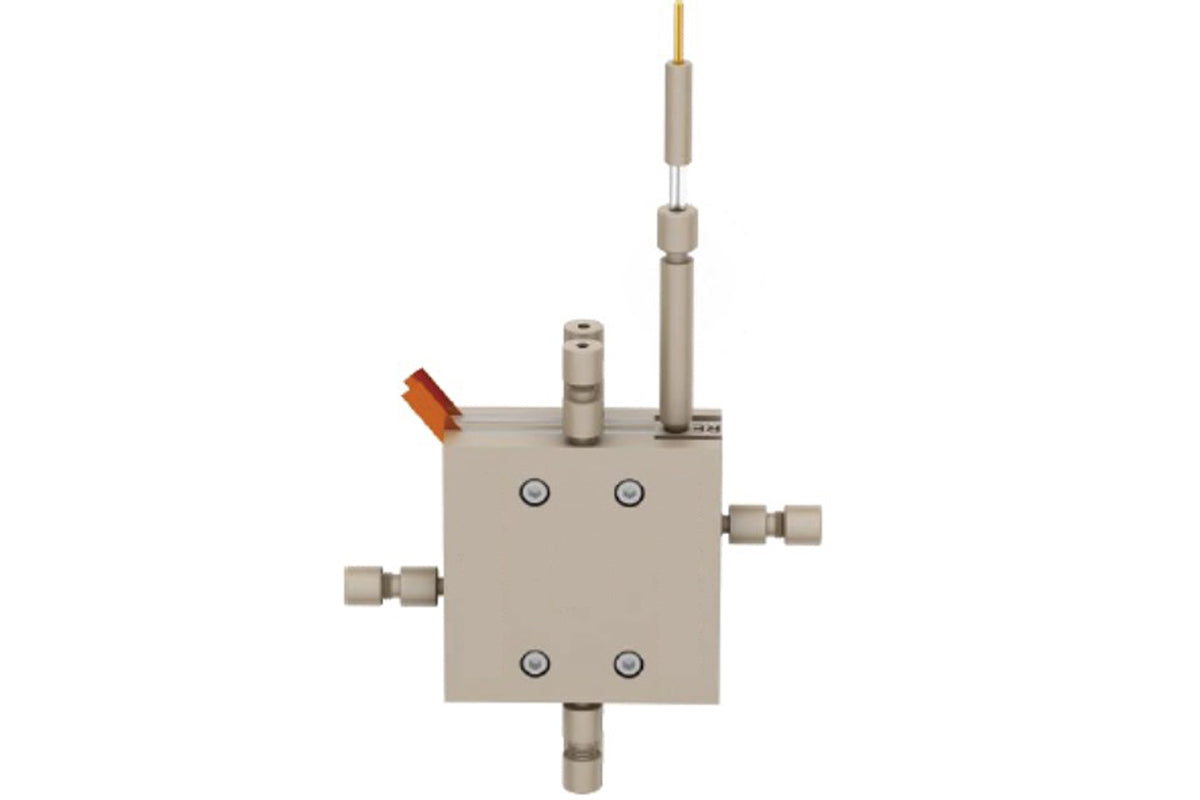

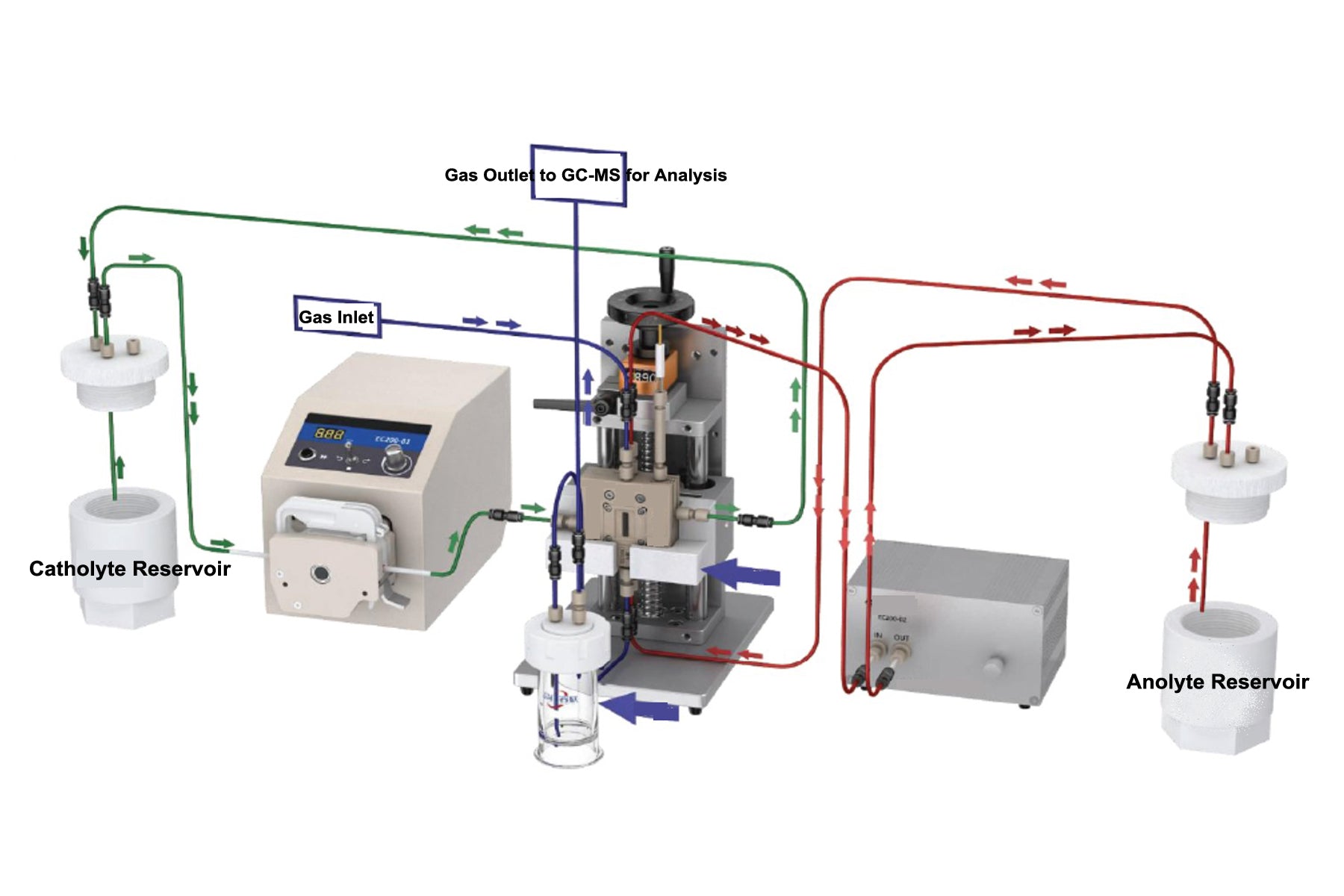

 GDE-CO2RR-TS is a gas-diffusion-type flow cell electrolyzer for total solution of CO2 reduction reaction, which includes gas and liquid feeding unit,  gas/liquid separation, and core electrolysis cell. SPECIFICATIONS: Structural Features The whole electrochemical cell was made by PEEK material. Cell body with other materials are also available. Double O-rings were presented to provide high sealing quality. PTFE gaskets with high electrochemical corrosion property Gas flow channels with serpentine shape for increasing reaction retention time. Flow channels with other shapes are also available upon request. Cell Features 2 cm 2 cm (other area, such as 1 cm*1 cm, 3 cm*3 cm, and 5 cm* 5cm can be customized upon request ) Valves & Fittings 3 mm PTFE Tubing for liquid/gas flow Application Options (1) The gas-diffusion-type electrolyzer with observation window is available upon request: The distance between anode and cathode is around 1.2 mm (2) Beside the PEEK material option, the cell body with PTFE and PMMA materials also available: The distance between anode and cathode is around 21 mm Warranty One -Year limited manufacture warranty with lifetime support Operation Instructions

Structural Features
  • The whole electrochemical cell was made by PEEK material. Cell body with other materials are also available.
  • Double O-rings were presented to provide high sealing quality.
  • PTFE gaskets with high electrochemical corrosion property
  • Gas flow channels with serpentine shape for increasing reaction retention time. Flow channels with other shapes are also available upon request.
Cell Features 2 cm  2 cm (other area, such as 1 cm*1 cm, 3 cm*3 cm, and 5 cm* 5cm can be customized upon request )
Valves & Fittings 3 mm PTFE Tubing for liquid/gas flow
Application Options

(1) The gas-diffusion-type electrolyzer with observation window is available upon request:



         The distance between anode and cathode is around 1.2 mm

(2) Beside the PEEK material option, the cell body with PTFE and PMMA materials also available:



The distance between anode and cathode is around 21 mm
Warranty One -Year limited manufacture warranty with lifetime support
Operation Instructions
