Sealing Flange Assembly for 50mm dia.Tube - FL50
  • Sealing Flange Assembly for 50mm dia.Tube - FL50
  • Sealing Flange Assembly for 50mm dia.Tube - FL50
  • Sealing Flange Assembly for 50mm dia.Tube - FL50
Sealing Flange Assembly for 50mm dia.Tube - FL50

Sealing Flange Assembly for 50mm dia.Tube - FL50

SKU: fl50

Price: RFQ

Specifications

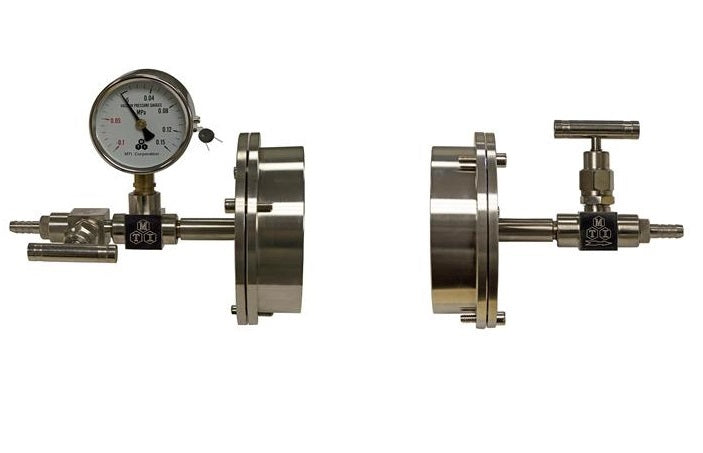

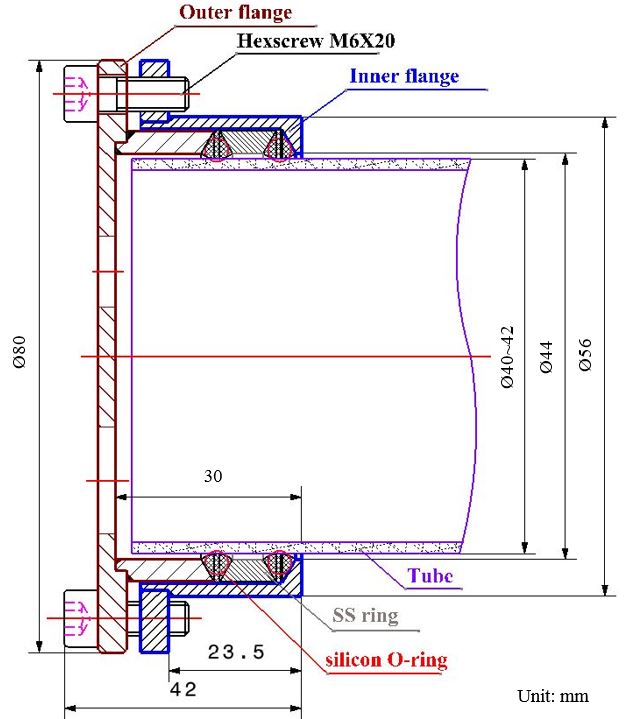

 This is a pair of smart sealing assemblies for a tube vacuum furnace to tighten both ends of O.D 50mm +/- 1.0 mm without any welding and gluing. SPECIFICATIONS Package included One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings (300 o C Max.), and six screws Vacuum Level 10E-2 torr by a mechanical pump 10E-5 torr by a small turbo pump and 10-6 torr by hi-speed turbopump Features Made of Stainless Steel with double high-temperature silicon O-rings on each flange. Two flanges on one side. One end flange has a vacuum meter with a valve, and another end has a valve. Seal tube by tightening screws on the flange without any welding and glue. 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose. Excellent for any type of tubing: ceramic, glass, quartz, and steel pipe. Optional Parts Please click here to order a digital vacuum gauge up to 10 -4 torr For CVD application, please choose anti-corrosive vacuum gauge ( click pic below left 2 ) You can choose the various end of Fitting as options ( click here to order separately ) You may click here to order a flow meter to control gas flowing You may order flange support to avoid tube turning ( picture below right) Warning Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. You may order a ceramic block in related products. Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns. Optional Accessories Click here to choose flange for tube from 42mm to 11" Vacuum Pump & High Vacuum Station

Package included One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings (300oC Max.), and six screws
Vacuum Level
Features


  • Made of Stainless Steel with double high-temperature silicon O-rings on each flange.
  • Two flanges on one side. One end flange has a vacuum meter with a valve, and another end has a valve.

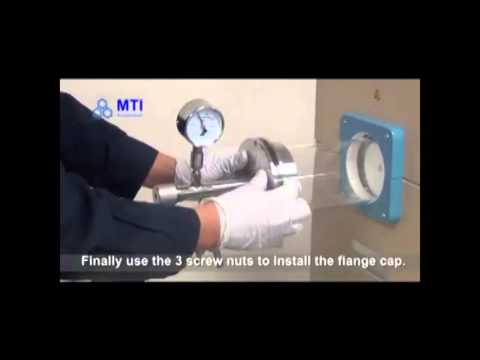

  • Seal tube by tightening screws on the flange without any welding and glue.
  • 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose.
  • Excellent for any type of tubing: ceramic, glass, quartz, and steel pipe.
Optional Parts

Warning
  • Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. You may order a ceramic block in related products.
  • Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
