Quick Clamp Vacuum Sealing Assembly for 60mm dia Tube Furance with KF50 Vaccum Port - FL-60QC
  • Quick Clamp Vacuum Sealing Assembly for 60mm dia Tube Furance with KF50 Vaccum Port - FL-60QC
  • Quick Clamp Vacuum Sealing Assembly for 60mm dia Tube Furance with KF50 Vaccum Port - FL-60QC
  • Quick Clamp Vacuum Sealing Assembly for 60mm dia Tube Furance with KF50 Vaccum Port - FL-60QC
Quick Clamp Vacuum Sealing Assembly for 60mm dia Tube Furance with KF50 Vaccum Port - FL-60QC

Quick Clamp Vacuum Sealing Assembly for 60mm dia Tube Furance with KF50 Vaccum Port - FL-60QC

SKU: fl-60qc

Price: RFQ

Specifications

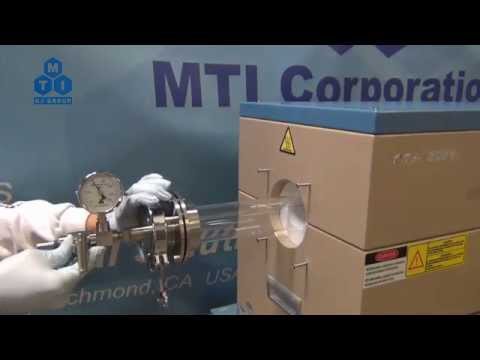

 This is a quick clamp vacuum sealing assembly for vacuum furnace tubes of OD 60 mm without welding and gluing. SPECIFICATIONS Features Stainless steel flange with double high-temperature silicone O-rings. Seal the tube by tightening the screws on the flange with no welding and glue needed. KF50 port and clamp on the flange allow quick access to the vessel in the furnace. High-temperature silicone O-ring and centering ring at flange cap. 1/4" in diameter vacuum sealing assembly connects with a rubber hose. Ideal for any type of tubing: ceramic, glass, quartz, and steel pipe. Vacuum Level 10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and 10-6 torr by hi-speed turbopump Optional Parts For precision vacuum control up to 10 -4 torr, please choose our Digital Vacuum Gauge. (Fig.1) For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2) We provide various Fitting Ends for separate purchase. (Fig.3) For advanced control over gas flow, please choose our float meter . (Fig.4) The product is heavy, please consider our Adjustable Tube Support. (Fig.5) Warning A refractory tube block is required in front of the flange to avoid silicone O-ring melting. Please consider purchasing our ceramic tube block. This product is heavy, flange support is highly recommended. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns. Related Products Click here to choose flange for tube from 1" to 11" Vacuum Pump & High Vacuum Station STANDARD PACKAGE: Part Number Part Name Qty 1 Inner and Outer Flange 1 pair 2 Pressing Ring 1 3 Centering Ring 1 4 Flange cap with valve 1 5 Hexagon screws 3 6 Clamp 1 7 High-Temperature Silicone O-ring (Black) 1 8 High-Temperature Silicone O-ring (White) 2 9 Gauge (only included for purchase with left flange) 1


Features

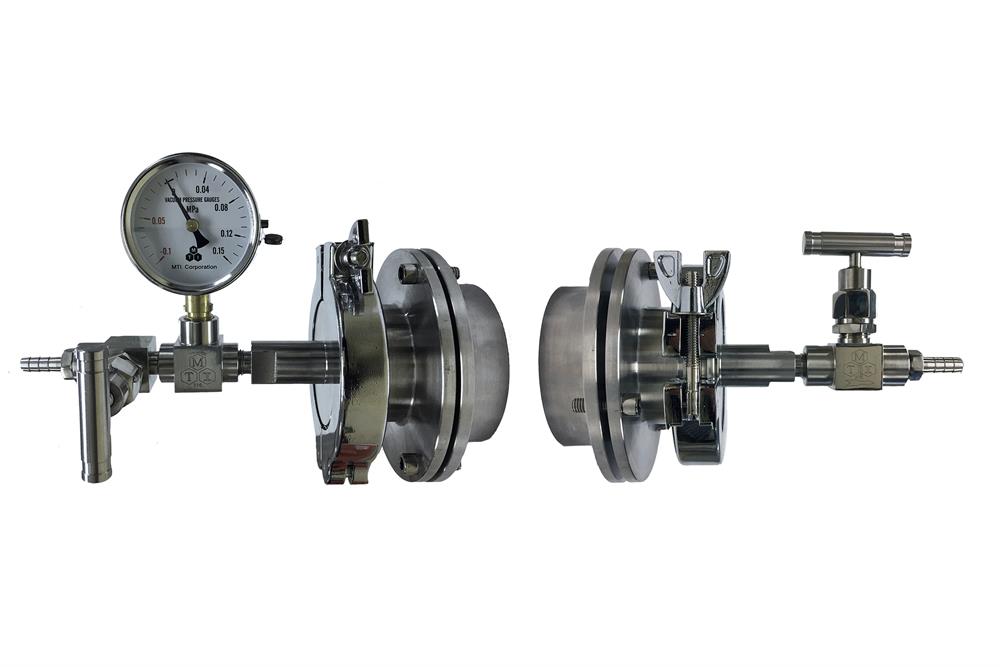

  • Stainless steel flange with double high-temperature silicone O-rings.
  • Seal the tube by tightening the screws on the flange with no welding and glue needed.
  • KF50 port and clamp on the flange allow quick access to the vessel in the furnace.
  • High-temperature silicone O-ring and centering ring at flange cap.
  • 1/4" in diameter vacuum sealing assembly connects with a rubber hose.
  • Ideal for any type of tubing: ceramic, glass, quartz, and steel pipe.
Vacuum Level
Optional Parts
  • For precision vacuum control up to 10-4 torr, please choose our Digital Vacuum Gauge. (Fig.1)
  • For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2)
  • We provide various Fitting Ends for separate purchase. (Fig.3)
  • For advanced control over gas flow, please choose our float meter. (Fig.4)
  • The product is heavy, please consider our Adjustable Tube Support. (Fig.5)



Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
    Please consider purchasing our ceramic tube block.
  • This product is heavy, flange support is highly recommended.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Related Products
Click here to choose flange for tube from 1" to 11"                                       Vacuum Pump & High Vacuum Station
                     Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes                                                                                         Vacuum pump and high vacuum station


,
Part Number Part Name Qty

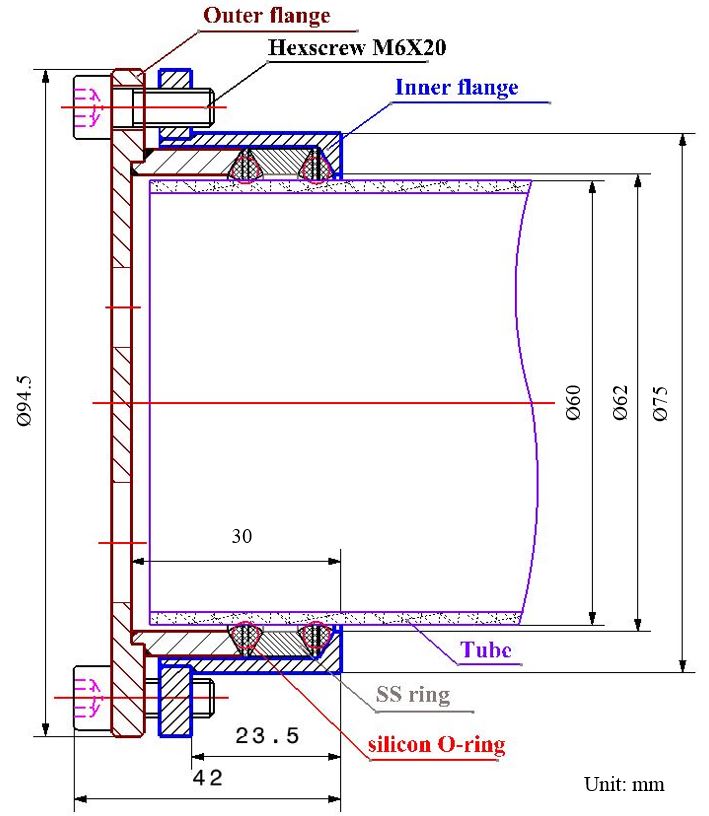

1 Inner and Outer Flange 1 pair
2 Pressing Ring 1
3 Centering Ring 1
4 Flange cap with valve 1
5 Hexagon screws 3
6 Clamp 1
7 High-Temperature Silicone O-ring (Black) 1
8 High-Temperature Silicone O-ring (White) 2
9 Gauge (only included for purchase with left flange) 1
