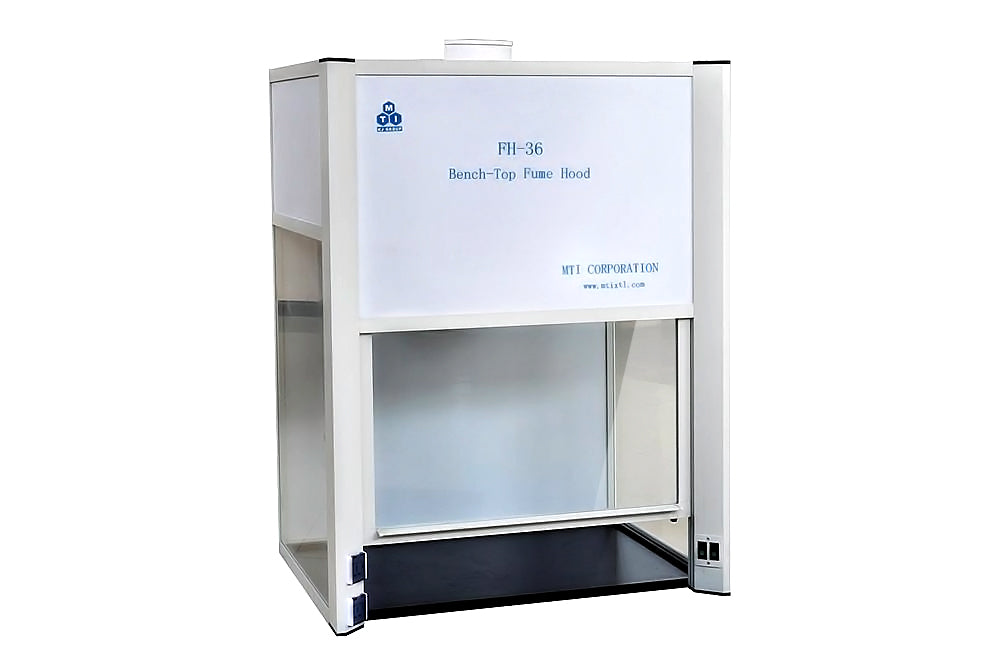

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36
  • Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36
  • Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36
Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36

SKU: fh-36

Price: RFQ

Specifications

 The bench-top FH-36 fume hood provides a working space that minimizes the chance of damages from a hazardous situation. The fume hood is equipped with tempered glass with anti-shattering film, centrifugal fan blower, and vapor-proof low-voltage LED light. It is an ideal fume-hood for the material research lab to handle flammable or corrosive gasses. It is a 45-inch wide platform that can accommodate small-to-medium size ovens/furnaces. SPECIFICATIONS Features Ducted type fume hood Steel frame with tempered glass front & side panel Anti-shattering film on front glass panel: the film holds shattered glass in place to minimize damage from broken glass. Chemical-resistant laminate platform Fire retardant Compact Grade Laminate plates (Rear) Power Requirement 110V 60Hz 220V +/-10% Single Phase configuration is available at extra cost (>300W transformer is needed) Blower Inline Centrifugal blower (ETL Listed) Flow Rate: CFM: 780 Speed: RPM: 2480 Power: 110V, 2.1Amps Fan Diameter: 10 inch Socket Type 110VAC, 15amps Accessories low-voltage, spark-free light Two Power Plugs are installed on the hood 10" horse-port ( the horse pipe is not included ) Option Accessories at extra cost Please contact us to order option Inline carbon filter to maintain a safe laboratory environment. Compact design carbon filter, leave enough room to operate inside the fume hood. (28 inches height remain to operate from the bottom of the fume hood ) Power Requirement 220V 50/60Hz, Single Phase 110V configuration is available at extra cost Compliance MET Certification is available upon request at extra cost, please contact our sales representitives for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499; 2) Vacuum Pump: UL1450; 3) Water Chiller: UL61010 & UL1995 Application Note If your lab required to reduce the airflow needed, you may need to limit the door height ( sash height for example 18" ) during operation. Please email us before ordering, we could add a height limit for the fume hood. For CVD and hydrogen furnace, you may place furnaces into the fume hood for better safety Related Product Please browse our FH-60 for a large furnace fume hood solution.

Features
  • Ducted type fume hood
  • Steel frame with tempered glass front & side panel
  • Anti-shattering film on front glass panel: the film holds shattered glass in place to minimize damage from broken glass.
  • Chemical-resistant laminate platform
  • Fire retardant Compact Grade Laminate plates (Rear)
Power Requirement
  • 110V 60Hz
  • 220V +/-10% Single Phase configuration is available at extra cost (>300W transformer is needed)
Blower
  • Inline Centrifugal blower (ETL Listed)
  • Flow Rate: CFM: 780
  • Speed: RPM: 2480
  • Power: 110V, 2.1Amps
  • Fan Diameter: 10 inch
Socket Type
  • 110VAC, 15amps
Accessories
  • low-voltage, spark-free light
  • Two Power Plugs are installed on the hood
  • 10" horse-port ( the horse pipe is not included )
Option Accessories at extra cost
  • Please contact us to order option Inline carbon filter to maintain a safe laboratory environment.
  • Compact design carbon filter, leave enough room to operate inside the fume hood. (28 inches height remain to operate from the bottom of the fume hood )


Power Requirement
  • 220V 50/60Hz, Single Phase
  • 110V configuration is available at extra cost
Compliance
  • MET Certification is available upon request at extra cost, please contact our sales representitives for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499; 2) Vacuum Pump: UL1450; 3) Water Chiller: UL61010 & UL1995


Application Note
  • If your lab required to reduce the airflow needed, you may need to limit the door height (sash height for example 18") during operation. Please email us before ordering, we could add a height limit for the fume hood.
  • For CVD and hydrogen furnace, you may place furnaces into the fume hood for better safety
MTI fume hood with tube furnace     fume hood with tube furnace 2
Related Product
Please browse our FH-60 for a large furnace fume hood solution.
