Alumina Foam Block: 80 mm Diameter (one pair) for 90mm Tube Furnace - FTB80
  • Alumina Foam Block: 80 mm Diameter (one pair) for 90mm Tube Furnace - FTB80
Alumina Foam Block: 80 mm Diameter (one pair) for 90mm Tube Furnace - FTB80

Alumina Foam Block: 80 mm Diameter (one pair) for 90mm Tube Furnace - FTB80

SKU: f-t-block-80

Price: RFQ

Description

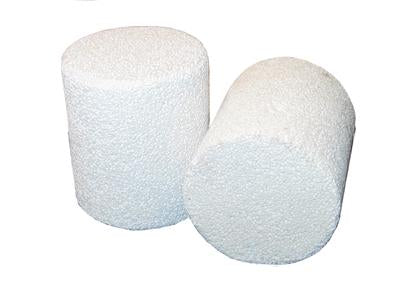

 MTI corporation provides the high quality Alumina (Al 2 O 3 ) foam block for high temperature tubing furnaces in universities, companies, and national labs. It comes with the specifications as the following: Max. working temperature:  < 1700ºC Diameter:  80 mm (2.76") ± 2mm (0.08") Length:     65 mm (2.56") ± 2mm (0.08") The block must be put in the place between sample and flange. Fit   90 mm OD (> 80 mm ID)  processing tube Application Note : To prevent dust-falling issue and ensure a cleaning process, it is suggested to apply a thin layer of alumina adhesive material on the surface of the foam block. Please click underline to order. For direct delivery of precursor gasses over the heating zone, customer may drill a hole in the alumina block for sticking a 1/4" O.D. quartz (<1200 ºC ) or alumina (<1700 ºC ) tube to deliver gas into the furnace tube center. Porous alumina block is very soft and it can be hand-drilled through easily. Click to Watch the video “How to insert and remove foam block for MTI furnaces”. Click to Watch the video "How to modify the thermal blocks". Inspect your delivery: Please check package for damages before accepting delivery. Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI. No Warranty: Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
