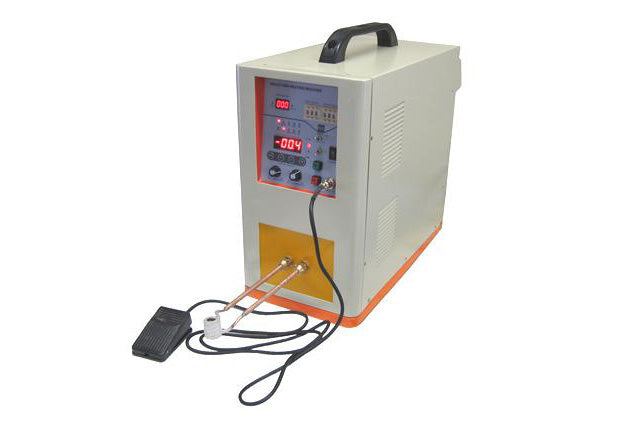

Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I

Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I

RM0.00 MYR
RM0.00 MYR
Skip to product information
Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I
  • Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I
Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I

Desktop High Frequency Induction Heater, 100-500kHz, 6KW - SPG-6A-I

SKU: eq-spg-6a-i

Price: RFQ

Description

 EQ-SPG-6A-I Compact 6KW Ultra High-Frequency Induction Heater is designed for quickly melting small quantity (<100g) of metallic material. SPECIFICATIONS: Working Voltage 180 - 245 V AC, 50-60 Hz, Single Phase Max. Output Power 6KW Input Current 5 - 30 Amp (50A breaker required) Adjustable with digital display Output Frequency 100 - 500 kHz Duty Cycle 100% Max. Sample Weight 100g Timer Control Automatic timer control or  Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Colling Time: 1-99 Seconds Air Cooling Rear Fan Water Chiller (Optional) Flowrate: > 3 L/Min Pressure: ≥ 0.2 MPa (29 Psi) Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Please click here to order separately Protection: Over-pressure and over-temperature switch Water protection Over-pressure and over-temperature switch Induction Coil Made by 5mm Dia. Copper tube (One Coil 20mmDia. x 45mmH is included) The customized copper coil is available at an extra cost ($300/ea) upon request Application Notes Applications: Applications: Please click here to learn the Fundamentals of Induction Heating Melting Sintering Annealing Heat treatment Quenching The heater will shut down if over output occurs. Please reduce the sample size to keep the heater operating under Max power Please click here to learn how to setup crucible for melting Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared For customization inquiries, please complete the " Customize Induction Heating System Form " and return it to info@mtixtl.com

Working Voltage 180 - 245 V AC, 50-60 Hz, Single Phase
Max. Output Power 6KW
Input Current 5 - 30 Amp (50A breaker required) Adjustable with digital display
Output Frequency 100 - 500 kHz
Duty Cycle 100%
Max. Sample Weight 100g
Timer Control
  • Automatic timer control or  Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Colling Time: 1-99 Seconds
Air Cooling Rear Fan
Water Chiller (Optional)
  • Flowrate: > 3 L/Min
  • Pressure: ≥ 0.2 MPa (29 Psi)
  • Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Please click here to order separately
  • Protection: Over-pressure and over-temperature switch
Water protection Over-pressure and over-temperature switch
Induction Coil
  • Made by 5mm Dia. Copper tube (One Coil 20mmDia. x 45mmH is included)
  • The customized copper coil is available at an extra cost ($300/ea) upon request
Application Notes
Melting
Sintering
Annealing
Heat treatment
Quenching
  • The heater will shut down if over output occurs. Please reduce the sample size to keep the heater operating under Max power
  • Please click here to learn how to setup crucible for melting
  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared
  • For customization inquiries, please complete the "Customize Induction Heating System Form" and return it to info@mtixtl.com
,
