Description
Specifications:
- One high-purity Alumina saggar ( boat) for chemical calcining
- Shape: sagger
- Max. Working Temperature: 1650 °C

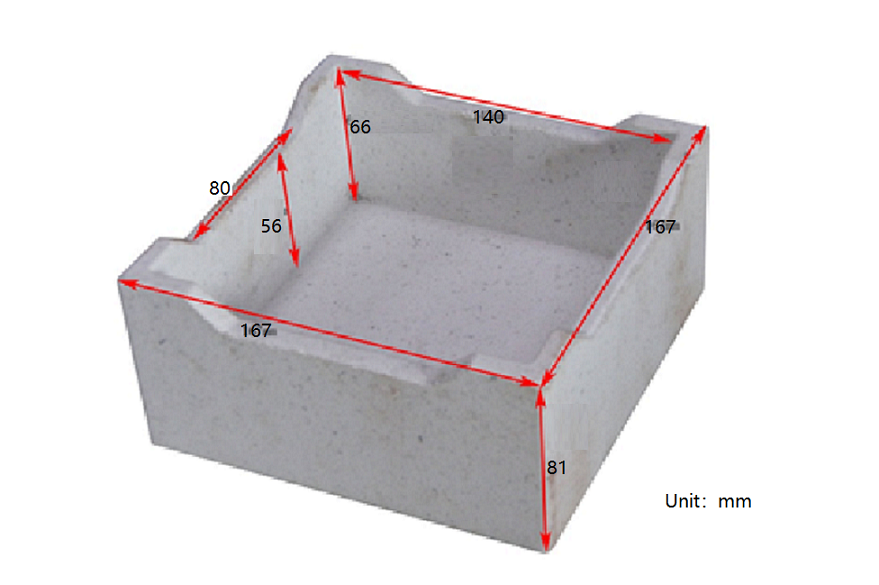

| Outside Dimension | 167 x167 x 81 mm |
| Inside dimensions | 140 x140 x 66 mm |
| Capacity | 1200 ml |
| Purity (wt%) |
Al2O3 > 85% SiO2 < 18% Fe2O3<0.5% R2O < 0.5% |
| Density | > 2.75 g/cm3 |
| Max. working temperature | 1650°C |
| Net Weight | 2 kg (4.4lbs) |
| Option |

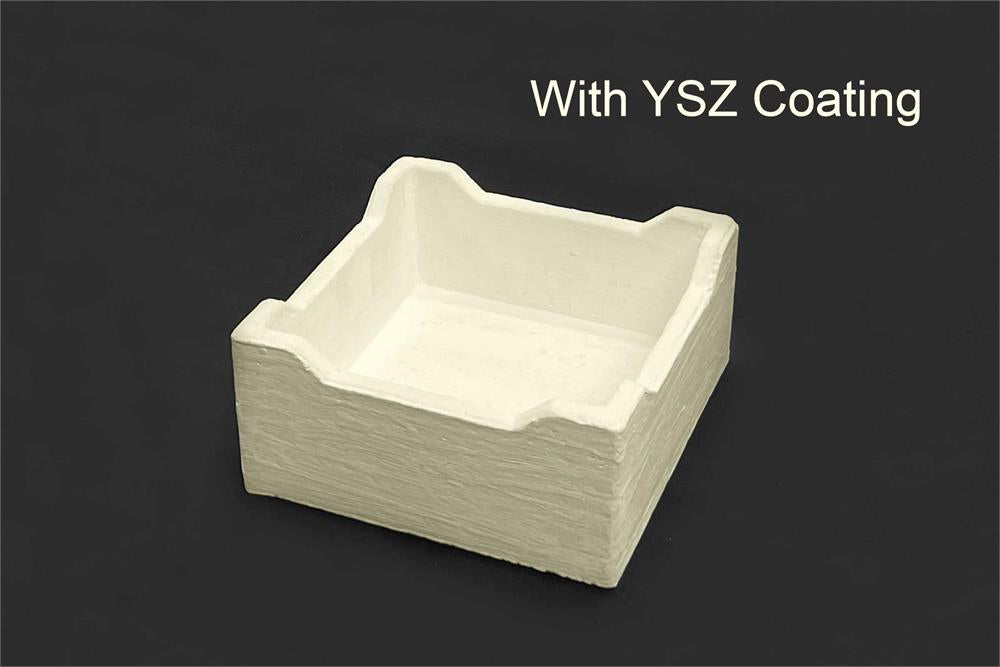

Alumina or zirconia coating on the inside saggar is available at an extra cost  |
Note:
- Never heat and cool faster than 10 °C/min. Otherwise, the crucible may crack.
- Alumina crucibles are made by casting method, which does not have precise dimensions.
Inspect your delivery:
Please check the package for any damages before accepting delivery. If damages are detected, retain all packaging material, document the condition with photos, and report the issue immediately to the carrier and MTI.
 |
 |
 |
 |
|
 |
 |
