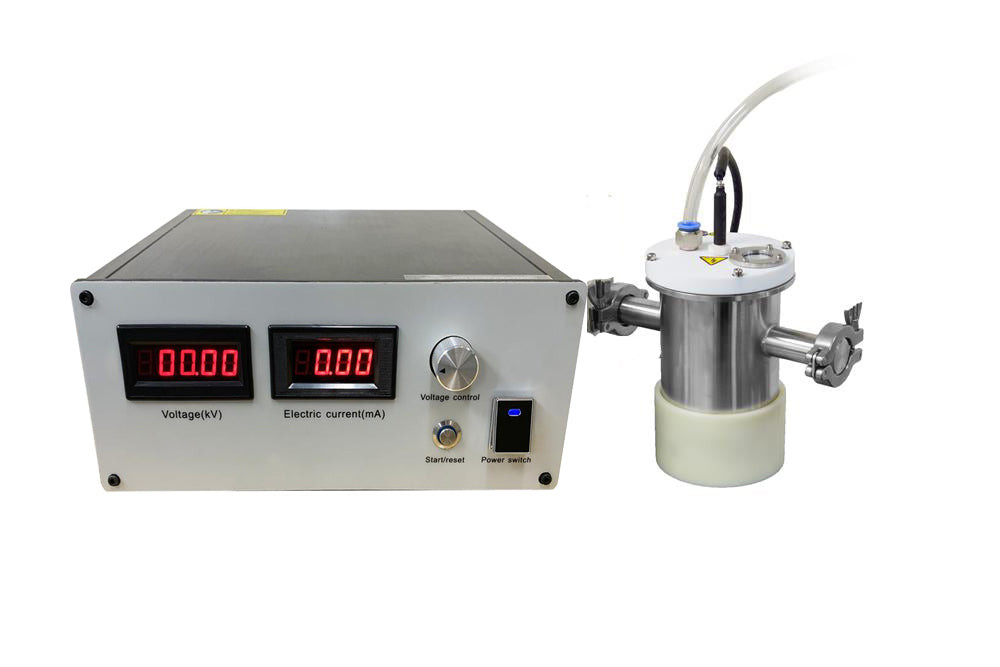

Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC
  • Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC
Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC

Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC

SKU: electrostatic-precipitator-and-hi-voltage-supply-for-particle-collection-via-mist-msk-eppc

Price: RFQ

Specifications

 MSK-EPPC is a high voltage electrostatic precipitator (1.2 L, up to 30 kV) that can effectively collect nanoparticles from the carrier gas flow via CVD or Mist SPECIFICATIONS High Voltage Supply Power Input: 24 VDC, 2 A Power Output: -30 kV to 0 V, 30 W max The NRTL/CSA certified power adaptor is included.(110 - 240V AC (50/60Hz) to 24VDC) Output voltage and current can be set on the front panel and read from the digital display Constant current/Constant Voltage mode of operation Built-in Arc protection circui t Electrostatic Precipitator Up to 30 kV and 1 mA. KF25 ports for material collection and vacuum generation. One nylon support provides the electrical insulation from the workbench. Height-adjustable powder collector (Stroke length: 60mm - 100mm) Net Weight 15 KG Overall Dimension Connection Tank: 220mm OD with KF fittings x 180 mm height Power Supply/Control Unit: 300mm L x 270mm W x 120mm H Warranty One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below). Compliance CE Certified NRTL or CSA certification (UL61010) is available upon request at extra cost. Application Notes A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator . Operation Instructions

High Voltage Supply
24VDC Input High Voltage Power Supply 30KV max. for DIY Electro-Spinning - MSK-ESPS-30-24V
  • Power Input: 24 VDC, 2 A
  • Power Output: -30 kV to 0 V, 30 W max
  • The NRTL/CSA certified power adaptor is included.(110 - 240V AC (50/60Hz) to 24VDC)
  • Output voltage and current can be set on the front panel and read from the digital display
  • Constant current/Constant Voltage mode of operation
  • Built-in Arc protection circuit
Electrostatic Precipitator

  • Up to 30 kV and 1 mA.
  • KF25 ports for material collection and vacuum generation.
  • One nylon support provides the electrical insulation from the workbench.
  • Height-adjustable powder collector (Stroke length: 60mm - 100mm)
Net Weight
  • 15 KG
Overall Dimension
  • Connection Tank: 220mm OD with KF fittings x 180 mm height
  • Power Supply/Control Unit: 300mm L x 270mm W x 120mm H
Warranty
  • One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below).
Compliance
  • CE Certified
  • NRTL or CSA certification (UL61010) is available upon request at extra cost.
