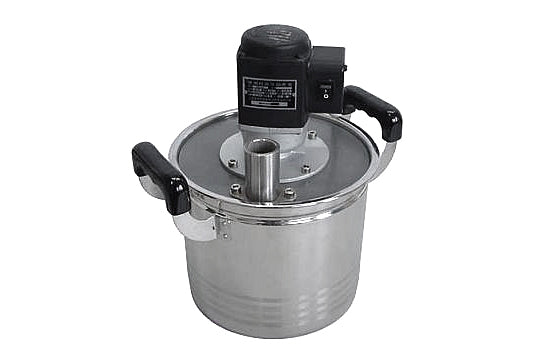

Heavy Duty Coolant Circulating Tank with Pump, 4 L for MTI Cutting saw - ECO430
  • Heavy Duty Coolant Circulating Tank with Pump, 4 L for MTI Cutting saw - ECO430
  • Heavy Duty Coolant Circulating Tank with Pump, 4 L for MTI Cutting saw - ECO430
Heavy Duty Coolant Circulating Tank with Pump, 4 L for MTI Cutting saw - ECO430

Heavy Duty Coolant Circulating Tank with Pump, 4 L for MTI Cutting saw - ECO430

SKU: eco-430

Price: RFQ

Specifications

 The 4-liter capacity heavy duty coolant circulating tank is designed for all MTI cutting saws to provide coolant circulation. SPECIFICATIONS: Operation power 208V ~240V (If you need 110V power supply, please order a 200W transformer ) Features 5 Liters stainless steel tank with 1" drain port and 1/4" outlet port Built in 40W fluid pump, Flowing rate: 12L/min. Pumping height: 3 meters Max. Option part If you order the coolant circulating tank, must order this connector to connect to the saw. 1/2 inch Hose Barb  Connector   &     8 mm Quick Connector PU Hose Pipe Overall Dimension 270mm x 220mm x 320mm. Plastic Hose Size 8.0mmO.D. x 2.3m Length (7.5 feet) is included Water  Hose Size 26mm O.D. x 1.0m Length  (3 feet) is included Water Inlet Port Size O.D 31.75mm, I.D. 25.4mm Weight 8 lbs Application Notes SYJ-200 SYJ-400 Please click the picture below to see the tank is perfectly connected to MTI' cutting saw STANDAR D PACKAGE P/N Description Quantity 01 Heavy Duty Pump 1 02 Heavy Duty Coolant  Tank (4L) 1 03 8mm(OD) x 5mm(ID) PU Polyurethane Air Compressor Hose Tube (7.5 feet) 1 set 04 Water Hose Size 26mm O.D.(1m) 1 set 05 Power Cord 1 Option Option 8 mm Quick Connector PU Hose Pipe to Hose Barb  Connector (Please order together with SAW) Option

Operation power 208V ~240V (If you need 110V power supply, please order a 200W transformer)

Features
  • 5 Liters stainless steel tank with 1" drain port and 1/4" outlet port
  • Built in 40W fluid pump, Flowing rate: 12L/min.
  • Pumping height: 3 meters Max.
Option part
  • If you order the coolant circulating tank, must order this connector to connect to the saw.
  • 1/2 inch Hose Barb  Connector   &     8 mm Quick Connector PU Hose Pipe
Overall Dimension 270mm x 220mm x 320mm.
Plastic Hose Size 8.0mmO.D. x 2.3m Length (7.5 feet) is included
Water  Hose Size 26mm O.D. x 1.0m Length  (3 feet) is included
Water Inlet Port Size O.D 31.75mm,   I.D. 25.4mm
Weight 8 lbs
Application Notes SYJ-200
SYJ-400

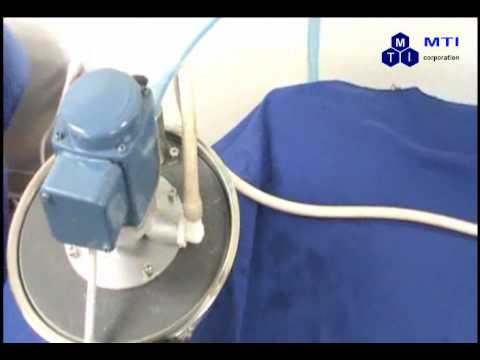

Please click the picture below to see the tank is perfectly connected to MTI' cutting saw

,
P/N
Description
Quantity
01  Heavy Duty Pump 1
02  Heavy Duty Coolant  Tank (4L) 1
03  8mm(OD) x 5mm(ID) PU Polyurethane Air Compressor Hose Tube (7.5 feet) 1 set
04  Water Hose Size 26mm O.D.(1m) 1 set
05  Power Cord 1
Option
Option 8 mm Quick Connector PU Hose Pipe to Hose Barb  Connector
(Please order together with SAW) 		Option
