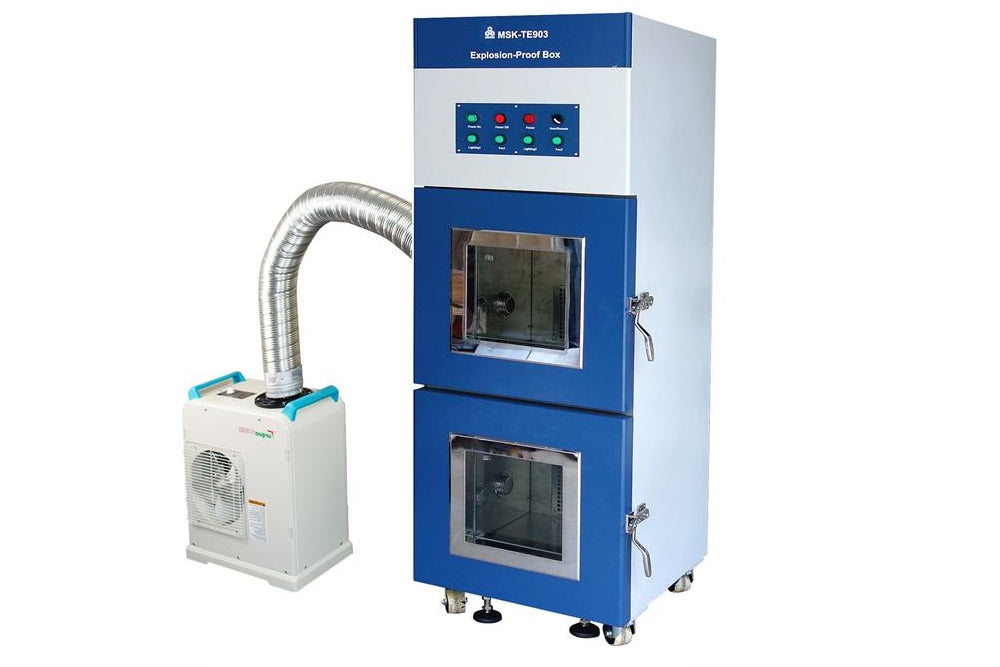

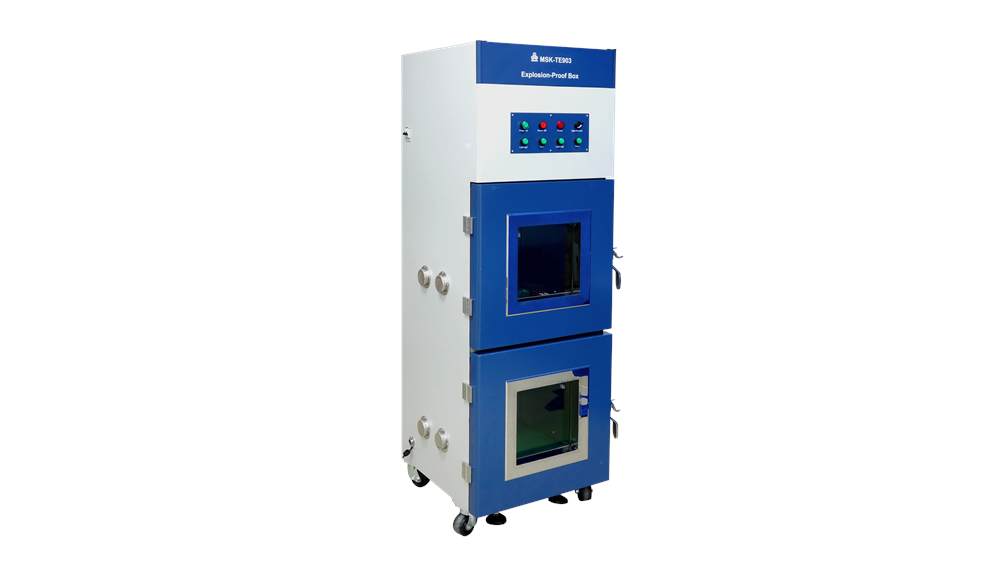

Dual Explosion-Proof Box for Constant Temp. Battery Test (20"x20"x20", 125L, RT- 46oC) - MSK-TE903-AC

Power Requirement

• 100 - 240VAC ( 50/60Hz), 100W

Structure & Material

• Materials:
• Chamber: 1.5 mm thick brushed SS304 with tensile strength > 500 Mpa
• Exterior: 3 mm thickness cold rolled steel with tensile strength > 400 Mpa

• Structure: Two anti-explosion chambers, top and bottom
• Chamber Size: 500mm x 500mm x 500mm (x2)

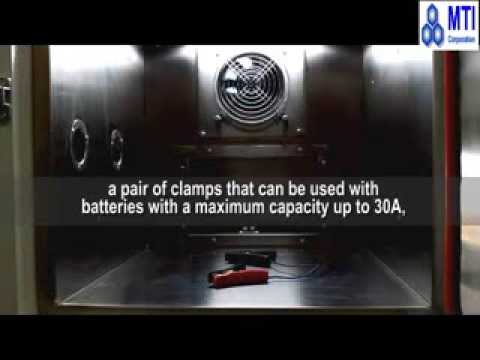

• Testing Cables: One pair of clamps with 3 meter long cables installed inside on each chamber to connect batteries rated at 30A max.
• Ports: Each chamber has two 2" diameter holes reserved for electric cables of battery testing equipment
• Safety door: The pressure relief door is built on the back of each chamber. In the event of a battery explosion, the door will open and release pressure.

• Note: The max. capacity of Li-Ion batteries to be tested in the chamber should be limited to 4.2V@ 40Ah for single-cell or 160Wh for battery pack without protection circus

Venting Fan

• A venting port with high-quality exhaust fan is installed in the back chamber which shall be connected to your venting system. (ducting and exhaust system are not included )
• Warning: Must keep the venting fan and exhaust system running during battery testing to avoid pressure build-up in the case of a battery explosion.
• Venting fan: 24 VDC, 3425 RPM, 235 CFM, 54.3 dBA
• Centrifugal in-line exhaust fan with aluminum flex duct connection is recommended but not included.

Temperature Controlling

• A spot cooling conditioner and a spot heater are included for controlling the chamber temperature between 23°C - 46°C

Remote Control

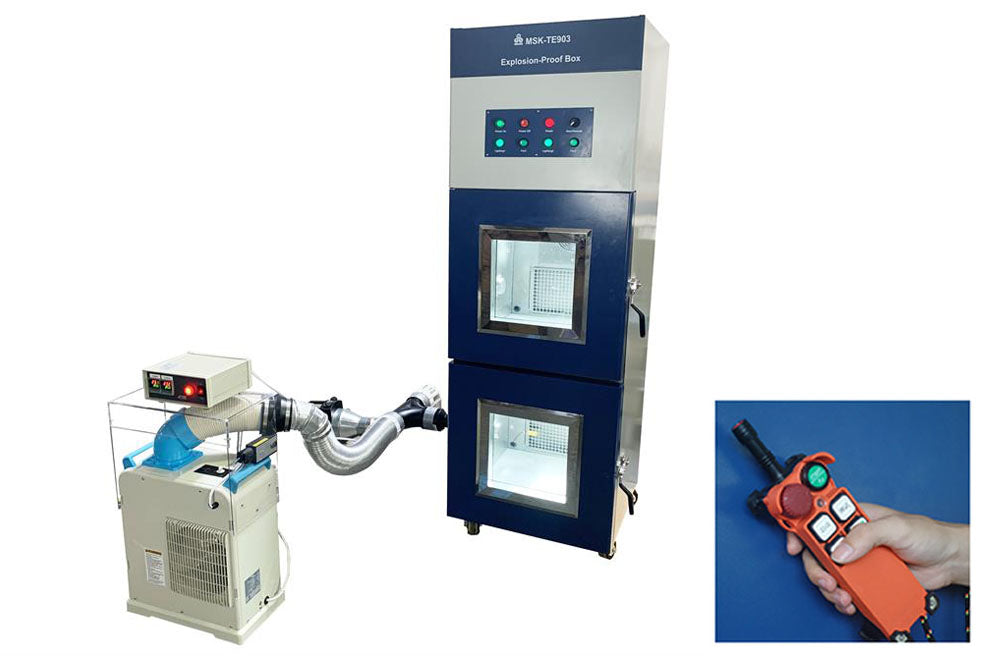

• A wireless hand-held remote controller can operate the machine within 10 meters distance for safe operation.

Lighting

• Anti-explosion LED light (30W) is installed inside of each chamber.
• The angle of illumination is adjustable up to 90°

Electrode Holder & Cables

• Two sets of battery electrode clamps with 10 AWG gauge cables (30A Max.) are included for easy & quick connections to batteries

Mobility

• Four mobile wheels are installed at the bottom for easy transportation

• A smart battery analyzer for use as the source of over-charging and forced discharging is available here:

• IEC 62133 Safety Test Standard Details
• Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements
• Other equipment for testing of IEC 62133 or UN38.3 Standards can be found at MTI online web.
