2T Max SS316 Dry Pellet Pressing Die with 1/2" I.D. for use under Magnetic Field up to 600oC - Die-12D-316

Name: 2T Max SS316 Dry Pellet Pressing Die with 1/2" I.D. for use under Magnetic Field up to 600oC - Die-12D-316
Brand: MTI
SKU: DIE12D316
Availability: OutOfStock

SKU: die-12d-316

Price: RFQ

Specifications

Die-12D-B is a 1/2" I.D. pressing die set made of 316 stainless steel, which is designed for pressing pellet under magnetic field up to 2 metric Ton Force or < 170 MPa. Model Number Die-12D-316 Max. Load 2 metric Ton (at room Temperature) 155 MPa Material Stainless Steel 316 Hardness: HRC 50 Ra 0.08μm highly polished steel The pressing dies are made of 316 stainless steel, which is designed for using under magnetic field without blocking magnetic strength. Please be advised that 316 SS is soft ductile alloy, never applied pressure more than 2 metric ton or 170 MPa Material Requirement 32-75 Microns Do not use this die set for pressing powder with a particle size of 30 microns or smaller ; Small particles may slip into the gap of the die parts and damages the sleeve during the compression. Ball mill or ground the powder to the size of 32~75 microns powder before pressing . Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression. Package Content One pressing die sleeve One top pressing die One bottom pressing die One support plate One die kit container Safety Precaution To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time. Read the manual, especially the die installation schematic , before the operation. Do not press flammable, explosive materials. The operator must wear a protection goggle. You must have a hydraulic pellet press equipped with the Protection Cover, please click the pcitures to the left to order. To avoid damaging the die core and sleeve , we strongly recommend to press powder with a professional laboratory hydraulic press to ensure the evenest pressing interface and uniform pressure force. Pressing Die Installation Schematic / Instruction Mixing and grinding chemical powder by agate mortar or Ball Mill Calcine mixed the powder in a high temp furnace under suitable temperature Crushing and Grinding calcined powder again by mortar or ball mill Put calcined powder into the die Pressing sample by a pressing machine under suitable pressure Take out pellet sample from die Sintering the pellet under suitable temperature Application Notes Use ethanol to clean the pressing die before and after use every time Use anti-rust oil after the operation and store the kit inside the original box in a dry place to avoid rusting. You may consider using BNMR for easy mold release. Please click the picture below to order. Related Products Pressing Die 1/8" - 3" Powder grinding & Mixing Drying Ovens Calcining & Sintering Hydraulic Press CIP - Cold Isostatic Press

Model Number

Die-12D-316

Max. Load

2 metric Ton (at room Temperature)
155 MPa

Material

Stainless Steel 316
Hardness: HRC 50
Ra 0.08μm highly polished steel
The pressing dies are made of 316 stainless steel, which is designed for using under magnetic field without blocking magnetic strength. Please be advised that 316 SS is soft ductile alloy, never applied pressure more than 2 metric ton or 170 MPa

Material Requirement

32-75 Microns
Do not use this die set for pressing powder with a particle size of 30 microns or smaller; Small particles may slip into the gap of the die parts and damages the sleeve during the compression.
Ball mill or ground the powder to the size of 32~75 microns powder before pressing. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps.
For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.

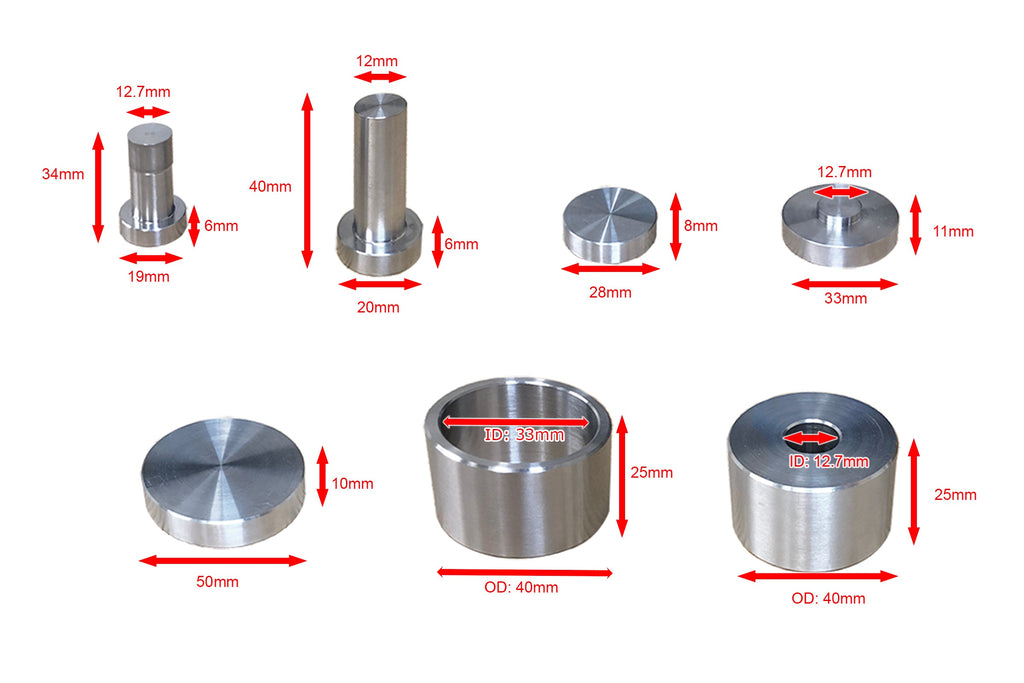

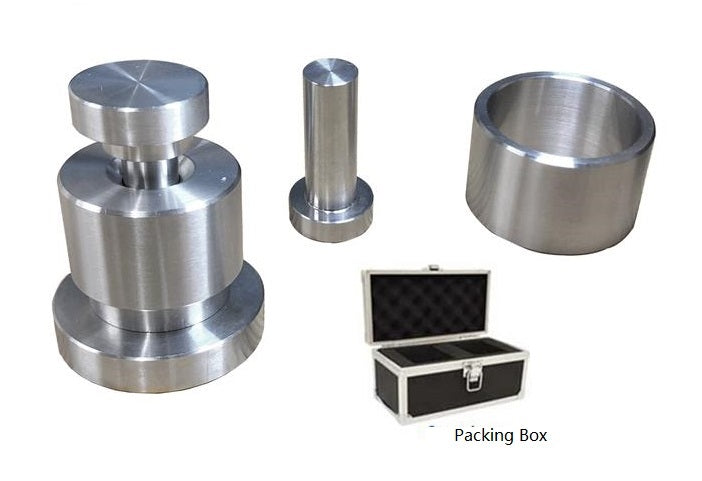

Package Content

One pressing die sleeve
One top pressing die
One bottom pressing die
One support plate
One die kit container

Safety Precaution

To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time.
Read the manual, especially the die installation schematic, before the operation.
Do not press flammable, explosive materials.
The operator must wear a protection goggle.
You must have a hydraulic pellet press equipped with the Protection Cover, please click the pcitures to the left to order.
To avoid damaging the die core and sleeve, we strongly recommend to press powder with a professional laboratory hydraulic press to ensure the evenest pressing interface and uniform pressure force.

Pressing Die Installation Schematic / Instruction

Mixing and grinding chemical powder by agate mortar or Ball Mill
Calcine mixed the powder in a high temp furnace under suitable temperature
Crushing and Grinding calcined powder again by mortar or ball mill
Put calcined powder into the die

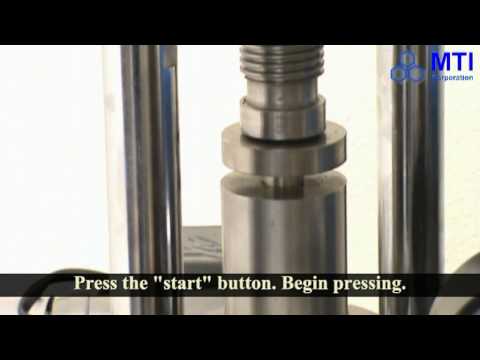

Pressing sample by a pressing machine under suitable pressure
Take out pellet sample from die
Sintering the pellet under suitable temperature

Application Notes

Use ethanol to clean the pressing die before and after use every time
Use anti-rust oil after the operation and store the kit inside the original box in a dry place to avoid rusting.
You may consider using BNMR for easy mold release. Please click the picture below to order.
