Description
Die-10D-B is a 10mm pressing die set for making a 10 mm diameter sample pellet. The pressing die is made of high-stretched and highly polished carbon steel to achieve high hardness to meet the essential requirements of making ceramic or metal samples.
SPECIFICATIONS
| Model Number |
Die-10D-B |
| Maximum Load |
8 metric Ton (at room temperature)
1000 MPa |
| Material |
HRC 60 - 62 hardened steel
Ra 0.08μm highly polished steel
All pressing dies are made of high-stretched carbon steel to achieve high hardness to meet the essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched. |
| Max. Working Temperature |
280 °C |
| Material Requirement
|
- 32-75 Microns
-
Do not use this die set for pressing powder with a particle size of 30 microns or smaller; Small particles may slip into the gap of the die parts and damage the sleeve during the compression.
-
Ball mill or ground the powder to the size of 32~75 microns powder before pressing. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps.
-
For pressing sticky metal powders such as Al, Mg, and Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.
|

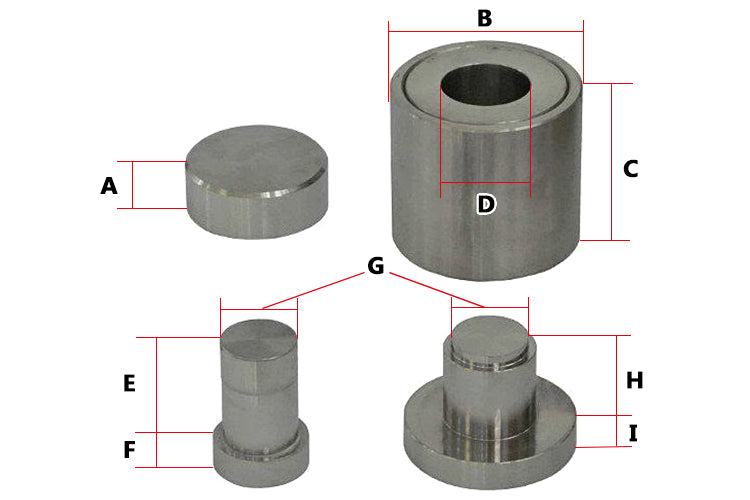

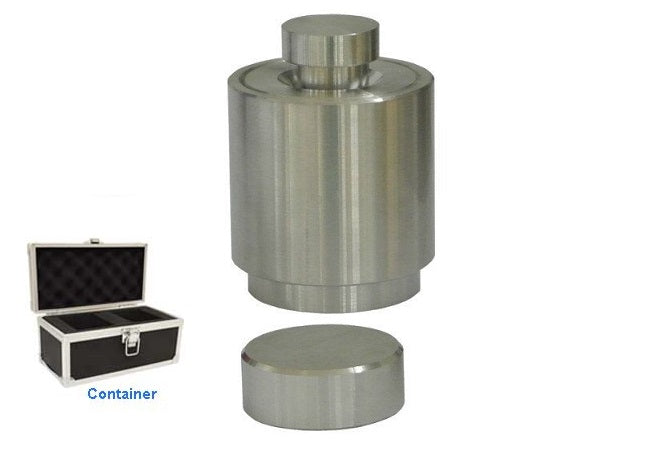

| Package Content |
- One pressing die sleeve
- One top-pressing die
- One bottom-pressing die
- One support plate
- One die kit container
|
| Safety Precaution |
- To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time.
- Read the manual, especially the die installation schematic, before the operation.
- Do not press flammable, explosive materials.
- The operator must wear a protective goggles.
- You must have a hydraulic pellet press equipped with the Protection Cover, please click the pictures to the left to order.
-

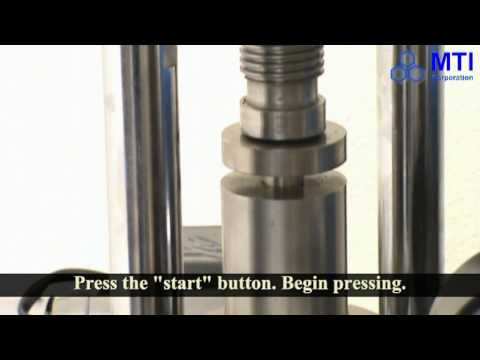

To avoid damaging the die core and sleeve, we strongly recommend pressing powder with a professional laboratory hydraulic press to ensure the evenest pressing interface and uniform pressure force.
- Dies with small diameters (≤10 mm) are more vulnerable to off-center compression, leading to pre-mature top pressing rod failure much below the rated load. Please have top/bottom plates in place and carefully align the die with the centerline of the press machine.
|
Pressing Die Installation Schematic / Instruction
|
|
Application Notes
|
- Use ethanol to clean the pressing die before and after use every time
- Use anti-rust oil after the operation and store the kit inside the original box in a dry place to avoid rusting.
- You may consider using BNMR for easy mold release. Please click the picture below to order.
|
