Compact Pouch Cell Case Forming Machine for Aluminum-Laminated Films w/ Optional Die - MSK-PN120
  • Compact Pouch Cell Case Forming Machine for Aluminum-Laminated Films w/ Optional Die - MSK-PN120
  • Compact Pouch Cell Case Forming Machine for Aluminum-Laminated Films w/ Optional Die - MSK-PN120
  • Compact Pouch Cell Case Forming Machine for Aluminum-Laminated Films w/ Optional Die - MSK-PN120
Compact Pouch Cell Case Forming Machine for Aluminum-Laminated Films w/ Optional Die - MSK-PN120

Compact Pouch Cell Case Forming Machine for Aluminum-Laminated Films w/ Optional Die - MSK-PN120

SKU: compact-pouch-cell-case-forming-machine-for-aluminum-laminated-films-w-optional-die-msk-pn120

Price: RFQ

Specifications

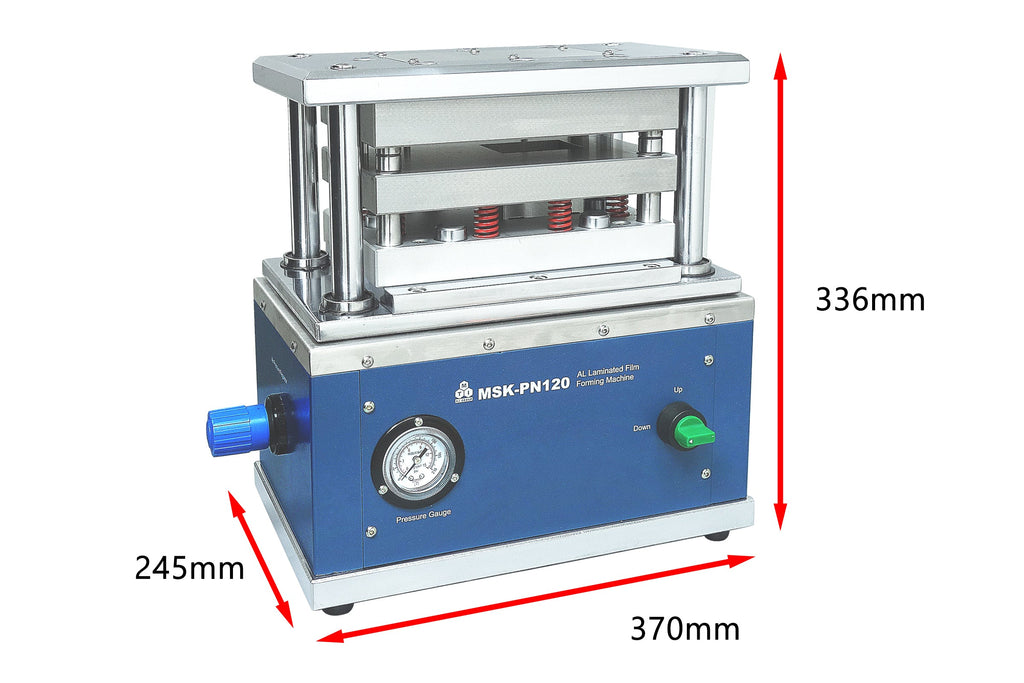

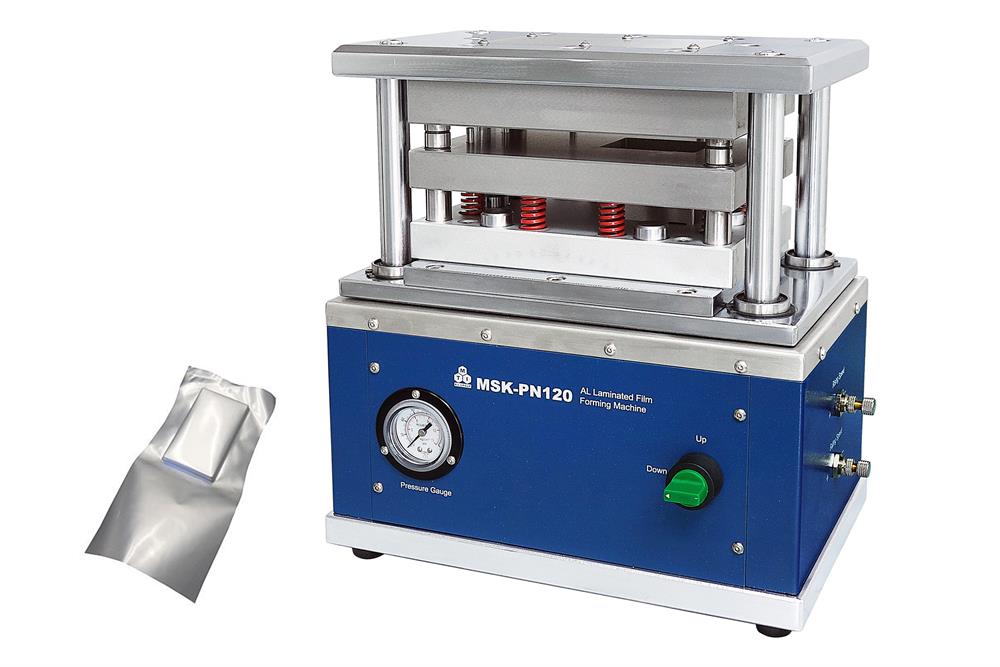

 MSK-PN120 is a compact gas-driven Aluminum Laminated Films pouch case forming machine for pouch cell fabrication laboratory, which fits the electrodes cut by MSK-180S electrode cutting machine. The adjustable depth (spacers set is included in the standard package) allows the formed case to fit electrodes stacked in different heights. SPECIFICATIONS: Features Pure pneumatic press with adjustable press speed and pressure. No electrical parts. Standard Die Size 4 sets of dies with various heights are included; there are 6 of them in each set. Dimension 3mm depth die: 20mm Dia. x 18mm (H) Dimension 4mm depth die: 20mm Dia. x 17mm (H) Dimension 5mm depth die: 20mm Dia. x 16mm (H) Dimension 6mm depth die: 20mm Dia. x 15mm (H) Standard die size: 62mm (L) x 45mm (W) x 3/4/5/6 mm(Depth), which perfectly fits the electrodes cut by MSK-180 Customized Die Size Customized die: $3675/set, delivery time 6-8 weeks. Max die size: 40 x 35 mm (dual holes, fold, airbag) Max die size: 61 x 47 mm (single hole, fold, airbag) Max die size: 80 x 35 mm (single hole, four-side sealing, airbag) Max die size: 80 x 65 mm (single hole, four-side sealing, no airbag) Air Pressure Requirement pic1 Pic. 2 0.8 - 1 MPa Air or inert gas For use inside the glove box, please use inert gas Air Compressor is not included . Please click here to order . Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. Max. Punch Cell Case L: 160 mm, W: 125 mm, Depth < 6.0 mm (accurracy: ±0.05mm) Max. Punching Pressure 1 metric ton AL Laminated Film The thickness of Aluminum Laminated Film : 0.10 - 0.20 mm acceptable Please click the picture to the left to order Aluminum Laminated Film . Die Installation Warning The tolerance of precision die is very little; Misalignment will result in die damage. Following operation manual when installing the die. MTI is not responsible for the damage caused by desperation. Small Footage Pouch Cell Machines High Throughput Electrode Cutting 3-in-1 Hot Sealer

Features
  • Pure pneumatic press with adjustable press speed and pressure.
No electrical parts.
Standard Die Size
  • 4 sets of dies with various heights are included; there are 6 of them in each set.
  • Dimension 3mm depth die: 20mm Dia. x 18mm (H)
  • Dimension 4mm depth die: 20mm Dia. x 17mm (H)
  • Dimension 5mm depth die: 20mm Dia. x 16mm (H)
  • Dimension 6mm depth die: 20mm Dia. x 15mm (H)
Standard die size: 62mm (L) x 45mm (W) x 3/4/5/6 mm(Depth), which perfectly fits the electrodes cut by MSK-180
Customized Die Size
  • Customized die: $3675/set, delivery time 6-8 weeks.
  • Max die size: 40 x 35 mm (dual holes, fold, airbag)
  • Max die size: 61 x 47 mm (single hole, fold, airbag)
  • Max die size: 80 x 35 mm (single hole, four-side sealing, airbag)
  • Max die size: 80 x 65 mm (single hole, four-side sealing, no airbag)

Air Pressure Requirement


 pic1 Pic. 2
  • 0.8 - 1 MPa Air or inert gas
  • For use inside the glove box, please use inert gas
  • Air Compressor is not included. Please click here to order.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Max. Punch Cell Case
  • L: 160 mm, W: 125 mm, Depth < 6.0 mm (accurracy: ±0.05mm)
Max. Punching Pressure
  • 1 metric ton
AL Laminated Film
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage. Following operation manual when installing the die. MTI is not responsible for the damage caused by desperation.
