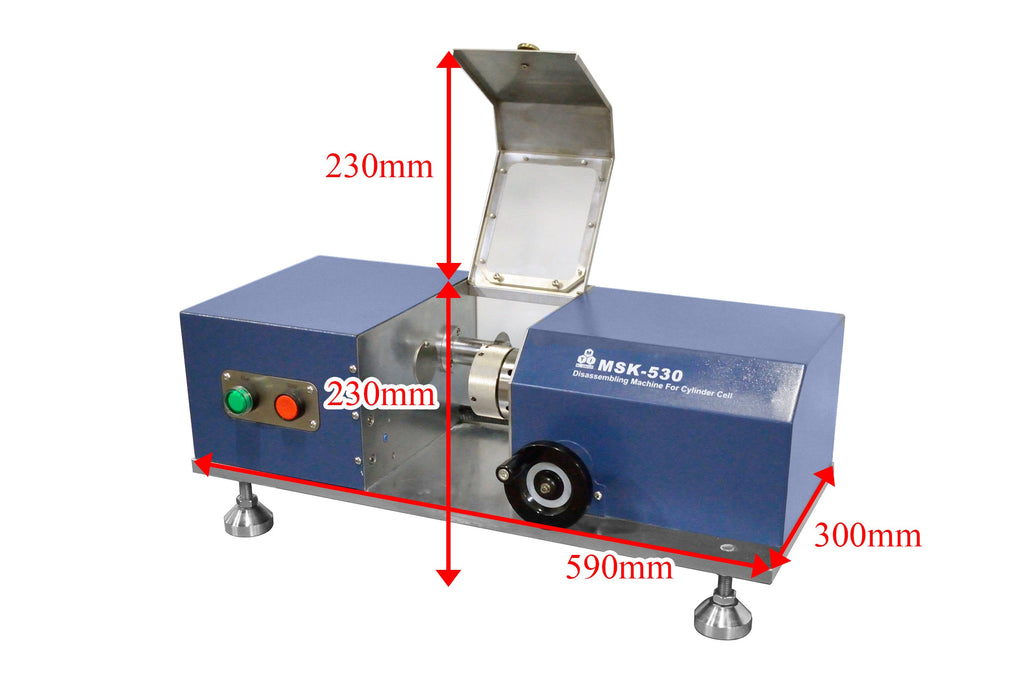

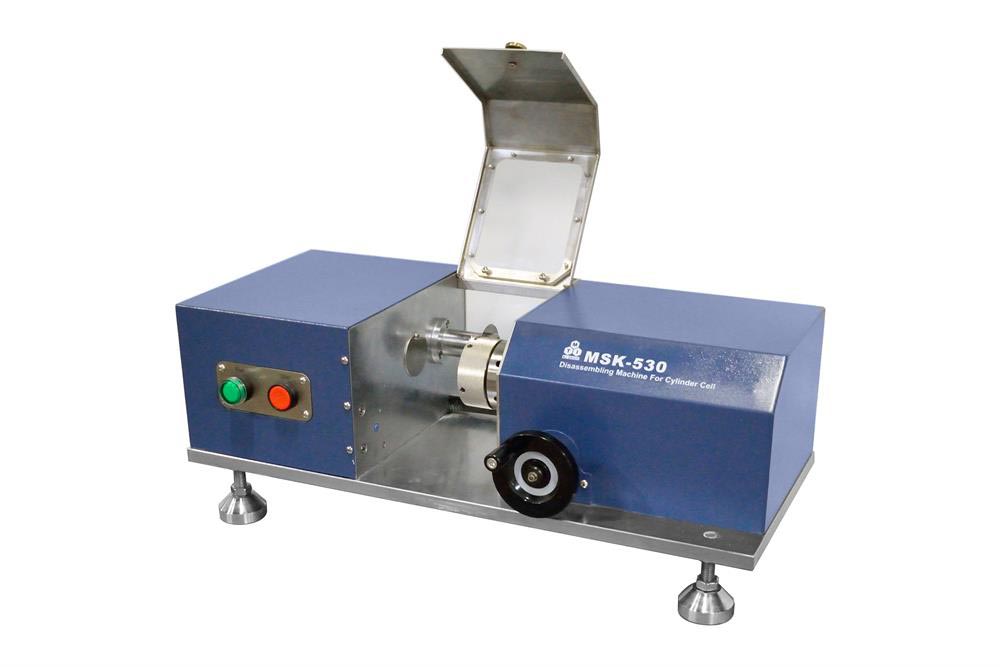

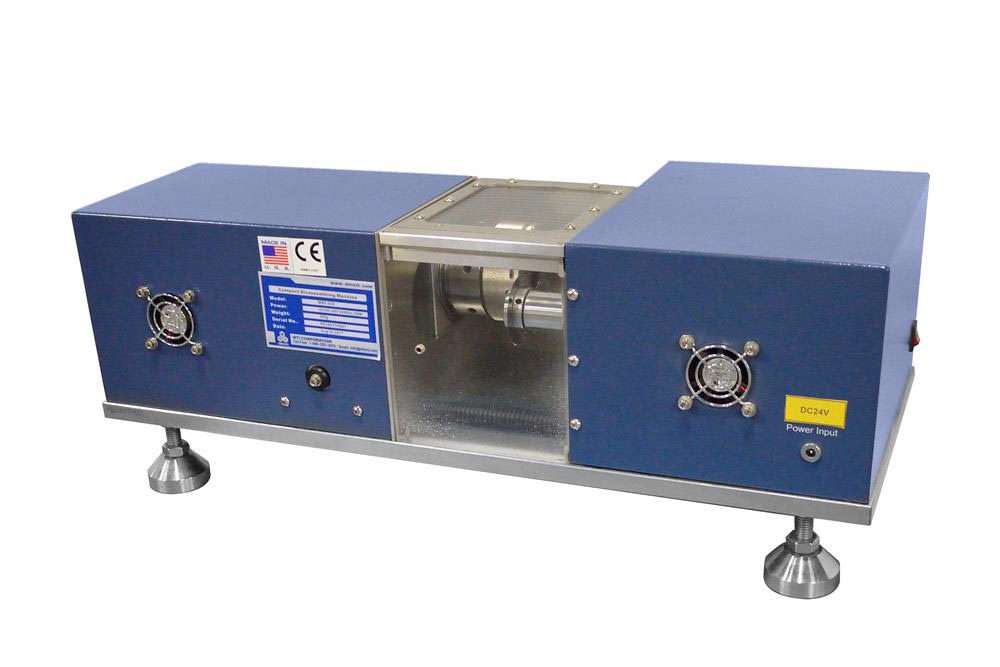

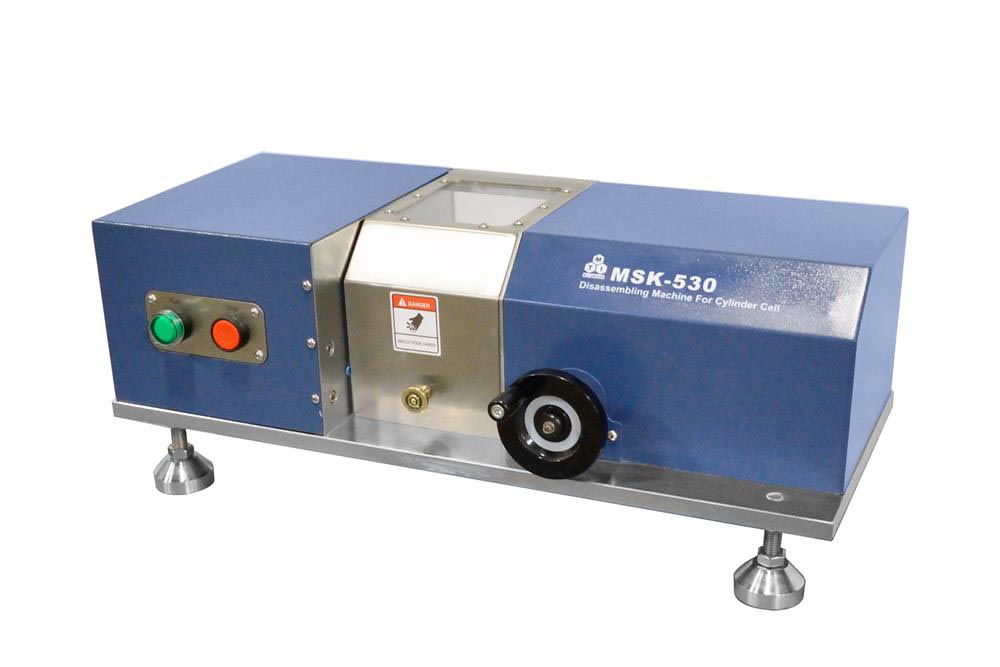

Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530
  • Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530
  • Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530
  • Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530
  • Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530
  • Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530
Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530

Compact Disassembling Cutter for 18650 Cylindrical Cases (Optional for 21700, 26650 or 32650) - MSK-530

SKU: compact-disassembling-cutter-for-18650-cylindrical-cases-optional-for-21700-26650-or-32650-msk-530

Price: RFQ

Specifications

 MSK-530 is a compact manually-operated machine for disassembling cylinder cases in the battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes. SPECIFICATIONS: Supply Voltage DC24V (a 110~240VAC to 24VCD power adapter is included) Power 100W Slicing Motor Speed 1000 rpm Die Rotating Speed 1000 rpm Micrometer Accuracy 0.05mm Accessories Standard disassembling die for 18650 cases. 5 pcs carbide cutting blades are included. ( click the picture left to order spare ) Additional die sets are available for 26650, 32650 as options. Cutter for 4680 - 46120 is available upon request at the extra cost Additional blades and pin wrenches for changing blades are available upon request. Application Notes MTI also provides MSK-510M series for cylinder case sealing, please order separately from related products below. Attention Considering the best interest of the blade's service life , low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.

Supply Voltage
  • DC24V (a 110~240VAC to 24VCD power adapter is included)
Power
  • 100W
Slicing Motor Speed
  • 1000 rpm
Die Rotating Speed
  • 1000 rpm
Micrometer Accuracy
  • 0.05mm
Accessories
  • Standard disassembling die for 18650 cases.
  • 5 pcs carbide cutting blades are included. ( click the picture left to order spare )
  • Additional die sets are available for 26650, 32650 as options.
  • Cutter for 4680 - 46120 is available upon request at the extra cost
  • Additional blades and pin wrenches for changing blades are available upon request.
Application Notes
  • MTI also provides MSK-510M series for cylinder case sealing, please order separately from related products below.
Attention
  • Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.
