Co-axial Nozzle Set with Dual Inlets for Eletrospinning - ES1U-CNoz

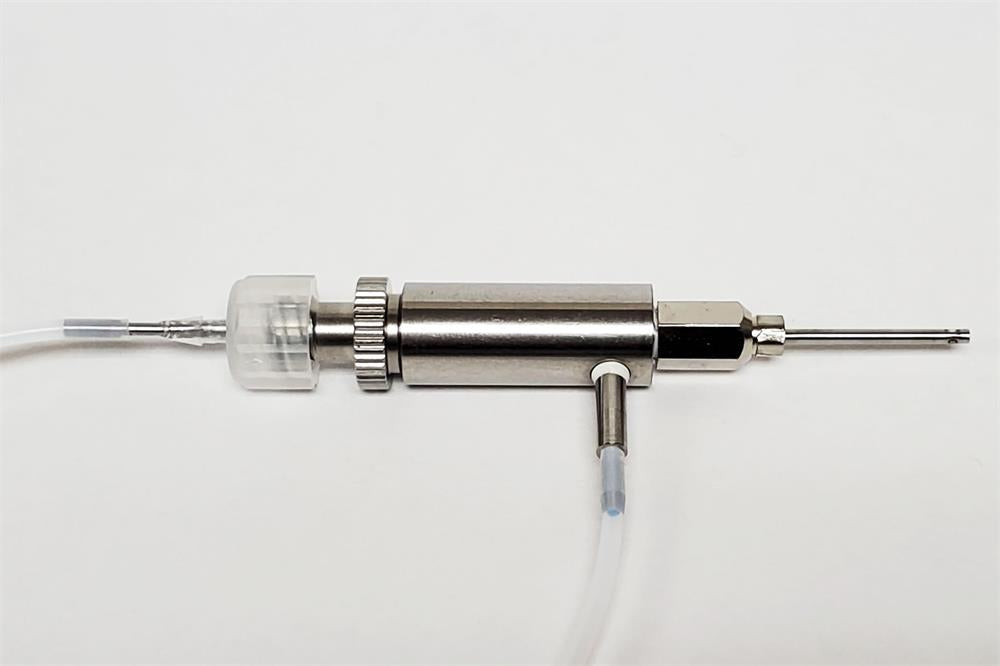

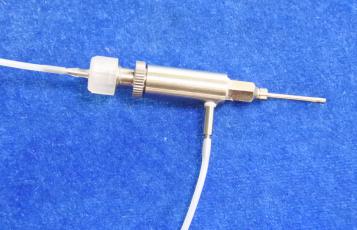

ES1U-CNoz is a set of Co-axial Nozzle with Dual Inlets. It allows you to inject two kinds of fiber-forming solutions in one nozzle. This is a replacement part for Electrospinning System EQ-NEFS-1U as well as an excellent component for customers who want to build their own research equipment.

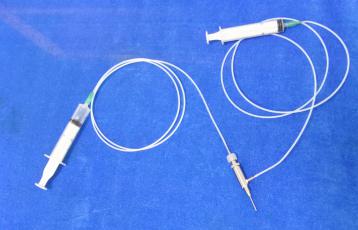

Structure	The Co-axial Nozzle is pre-assembled with the following accessories: One Co-axial Nozzle Two 18S PTFE Connecting Tubes (1.07mm ID, 1.97 mm OD) Two 18G Blunt Needles for Syringes Outer nozzle: OD 1.45mm, ID 1.0mm Inner nozzle: OD 0.6mm, ID 0.4mm Spare sealing rings Syringes are NOT included. They normally come with syringe pumps. Net Weight: 25g
Optional Devices (Not Included)	The Co-axial Nozzle works with below Electrospinning System - MSK-NFES-1U To build a DIY electrospinning system, you may also need: Reciprocating Injection Head and Drum Collector (Pic. 1) A high voltage power supply (Pic 2) A Multi-channel Syringe Pump System (Pic.3) Pic.1        Pic.2       Pic. 3
Operation Instructions Video
Reference Article	Electrospinning of Nanobers from Polymer Solutions and Melts  Transparent air filter for high-efficiency PM2.5capture Electrospun core-shell microfiber separator with thermal-triggered flame-retardant properties for lithium-ion batteries
Application Notes	Clean the nozzle and tube after use to prevent clogging. Avoid using with nonhomogenous solution systems. Nozzle may clog. Be cautious of using hazardous materials, strong acid and alkaline. Contact your health and safety department manager for detailed material handling instruction.
