900 Mpa CIP Die Set ( 35 mm ID. Vessel) for Cold Isostatic Press - CIP35D900

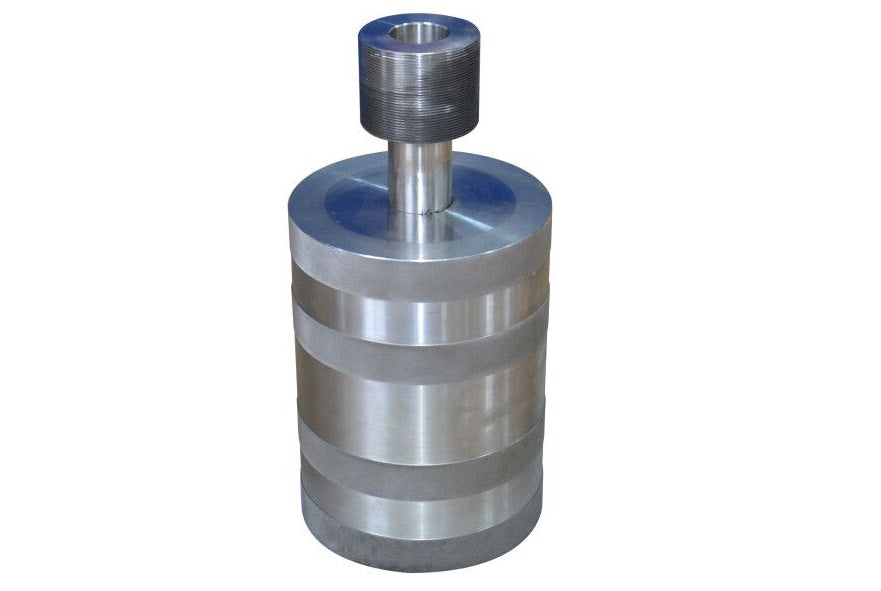

CIP35D900 is Complete CIP Die Set (Max. 900Mpa Vessel) for Cold Isostatic Press. It has a 35mm ID x105mm hydraulic chamber made by ultra-strength alloy, which can provide isostatic hydraulic pressure up to 900 MPa via an 87T hydraulic press. It is an excellent tool for the material research lab to prepare high-density compound samples at easy.

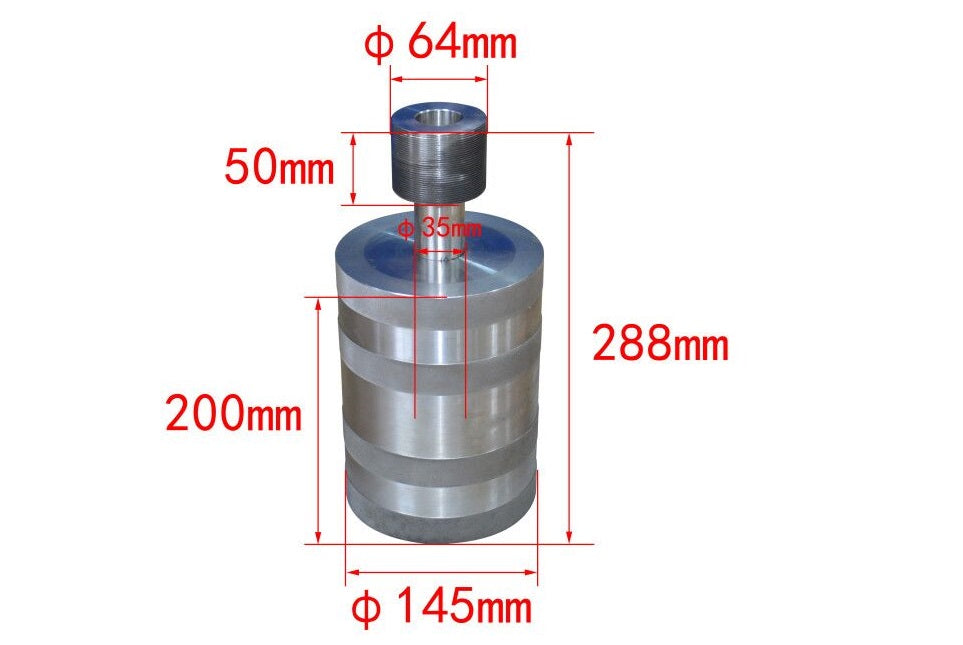

Pressure Vessel Size	35mm Dia. x 105 mm Height (pressing die cavity) Max sample height: 75 mm Max Made of high strength alloy with stainless steel protective jacket
Ma. Hydraulic Pressure in Chamber	The pressure inside the vessel: 900 MPa Max. Requires Hydraulic force: 86.6 T Max. ( 8660 Kg)
Operation Temperature	10 - 40°C
Maximum pressure holding time	15 minutes (The time starts from the press reaches the target pressure value and ends by releasing the pressure)
Application Notes	You may use the liquid rubber to seal the sample to be CIP  You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order) You may use the machine as a dry pressing to order pressing die (click Pic below right) Pic. 1  Pic. 2Pic. 3
Warning	Never let the press hold the target pressure be longer than 8 minutes, It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period. Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing If you order the die only and using your own press machine, , MTI is not responsible for the safety

,
