Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350

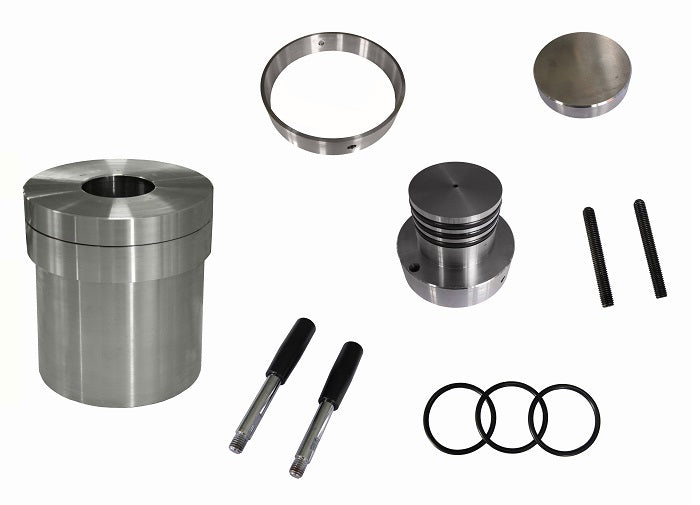

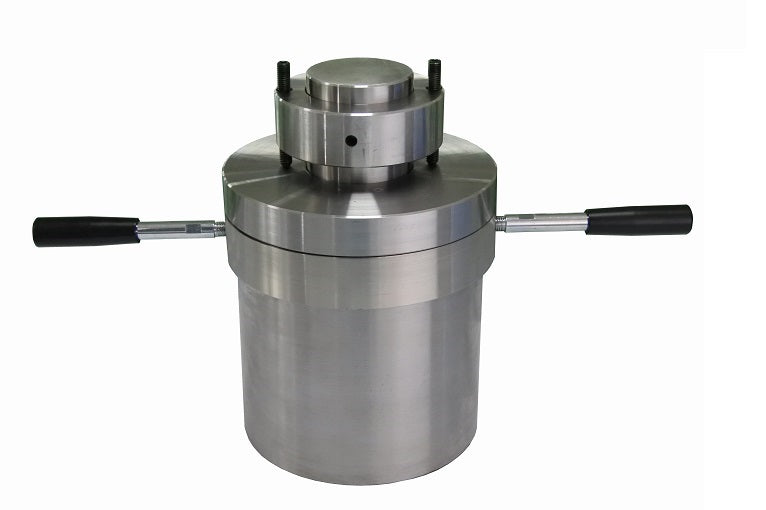

EQ-CIP110-DIE is a Complete CIP Die Set (Max. 350 Mpa Vessel) for Cold Isostatic Press, which has a chamber of 110 mm ID x 80 mm effective depth a. It is an excellent tool for preparing Max. 4" dia. x 3" H sample with a much high-density.

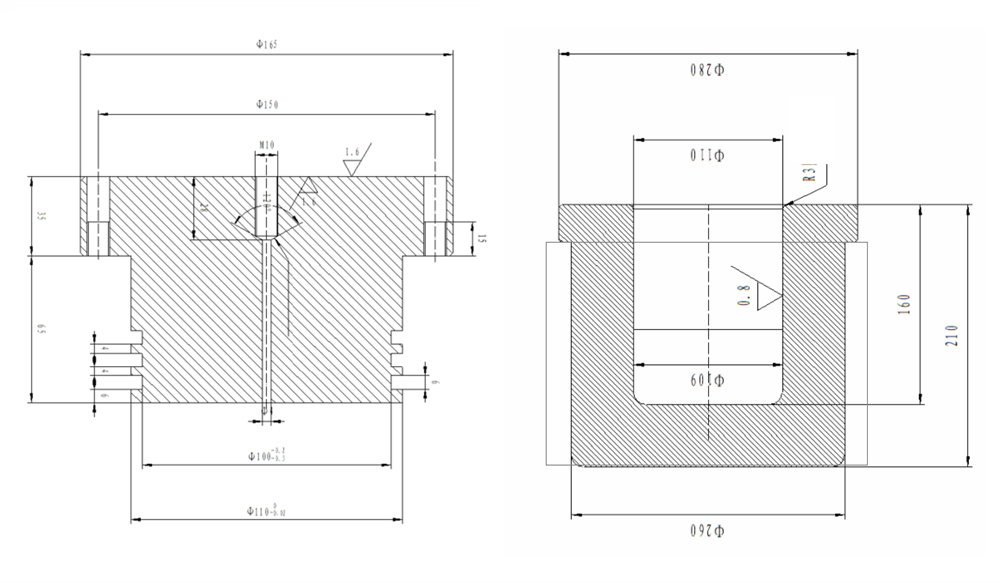

CIP Vessel size	110 mm I.D. x 210 mm Deep. Effective sample Deep: 80 mm Max.
Vessel Pressure	Material: 2Cr13 alloy  Pressure Range: 0 - 350 Mpa Pressure Speed: Mpa / min Pressure force required: 335 T ( Max) O-ring is consumable 10 pcs O-rings are included
Note	Never let the press hold the target pressure be longer than 8 minutes It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing You may use the liquid rubber to seal the sample to be CIP  You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order) You may use the machine as a dry pressing to order pressing die (click Pic below right) Pic. 1  Pic. 2Pic. 3

,
