SKU: cip110d200

Price: RFQ

Description

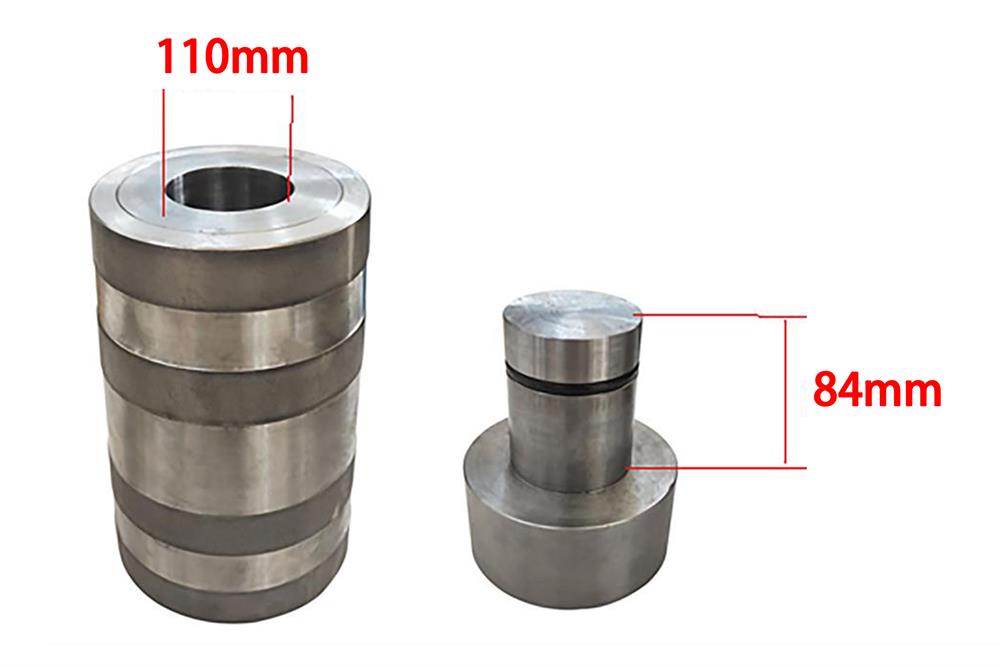

CIP110D200 is a CIP die set (Max. 200 MPa) for cold isostatic press with a 110 mm ID x 125 mm depth chamber. It is an excellent tool for preparing a Max. 4" dia. sample with a much higher density.

SPECIFICATIONS:

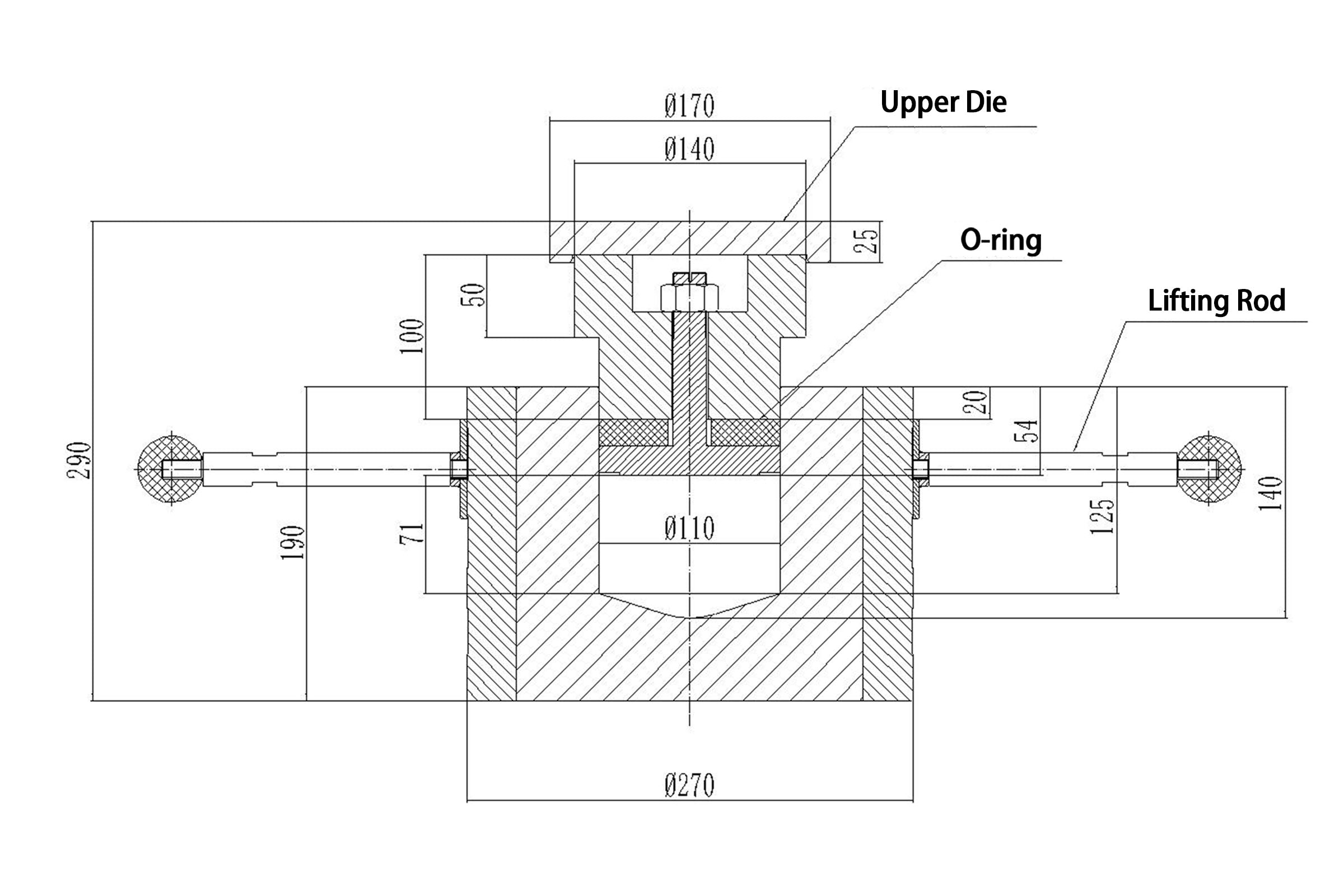

CIP Camber Size 110 mm ID x 125 mm Depth
Vessel Pressure
  • 0 - 200 MPa
  • 1 MPa / 5 min
Actual Force Applied on the Hydraulic Cylinder (Ton) 95 190
CIP Die Pressure (Mpa) 100 200

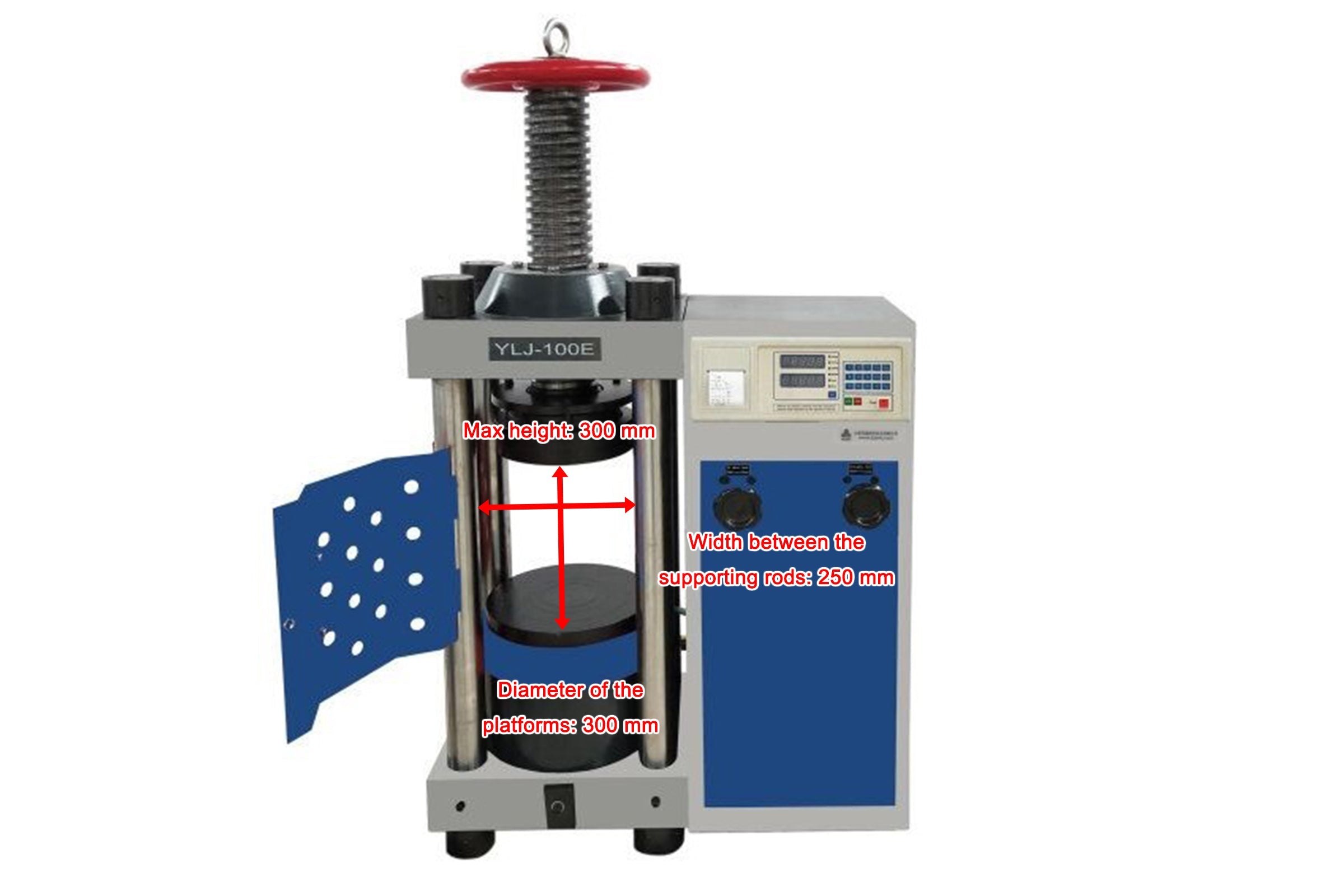

Compatible Press 200T Electric Hydraulic Press with Digital Display - YLJ-200E
200T Electric Hydraulic Press
Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order).  Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  •     Pic. 1  Pic. 2   Pic. 3
Warning
  • Never let the press hold the target pressure be longer than 8 minutes
  • Normally, the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period
  • Pressure must be completely released first, then make sure the handwheel and the pressure release valve have been tightened before pressing
