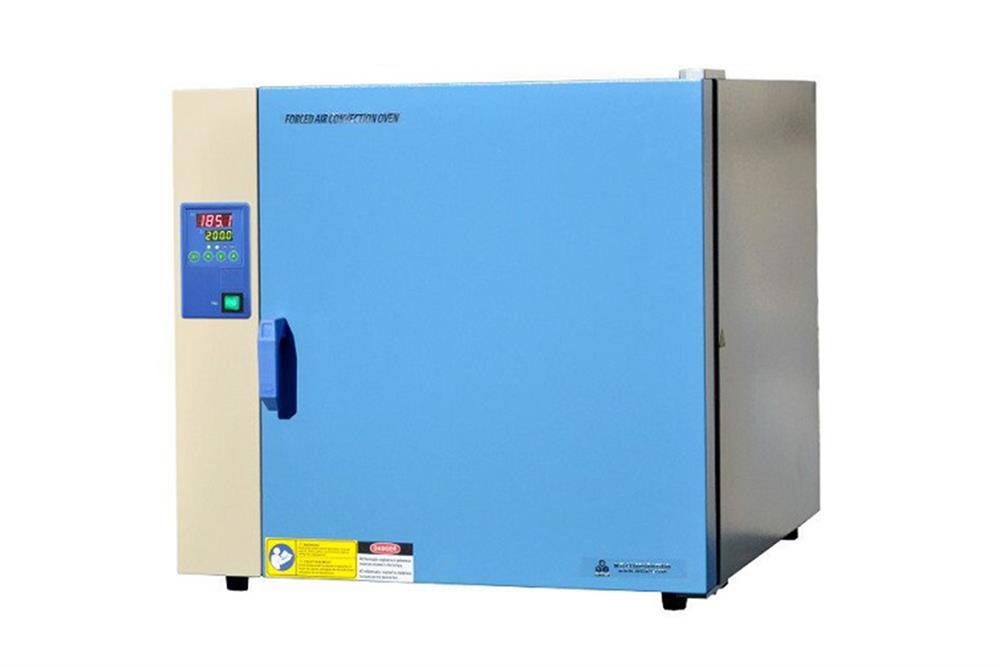

80L NRTL/CSA Certified Convection Oven (18x16x18", 250°C) w/ Digital Temp. Controller - BPG-7082
  • 80L NRTL/CSA Certified Convection Oven (18x16x18", 250°C) w/ Digital Temp. Controller - BPG-7082
  • 80L NRTL/CSA Certified Convection Oven (18x16x18", 250°C) w/ Digital Temp. Controller - BPG-7082
80L NRTL/CSA Certified Convection Oven (18x16x18", 250°C) w/ Digital Temp. Controller - BPG-7082

80L NRTL/CSA Certified Convection Oven (18x16x18", 250°C) w/ Digital Temp. Controller - BPG-7082

SKU: bpg-7082

Price: RFQ

Specifications

 BPG-7082 is an NRTL Certified ( CSA Certified )Forced Air Drying Oven with 80L capacity and 250ºC Max. working temperature. This radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, and plating applications. It is an ideal heating equipment for material R&D laboratories. SPECIFICATIONS: Working Voltage 110/220 VAC selectable Power Consumption 1500W Max. Operating Temperature 0-250°C Chamber Interior Material: 304 Stainless Steel Dimensions: 17.7"(L) x 15.7"(W) x 17.7"(H) (450 mm x 400 mm x 450 mm) Volume: 80 L Dia. 5 mm Small window on the roof for additional thermocouple probe 2 removable steel rack shelves, and max loading of 8 Kg per shelf Temperature Controller Single point setting temperature controller with +/- 1°C accuracy. Build-in over-temperature, thermocouple failure protection alarm Build-in over-temperature, thermocouple failure protection alarm Secondary over temperature protection and auto power cut-off for the heating elements Insulation 3" (7.6 cm) glass wool insulation prevents heat loss from the working chamber Ventilation Two hot air ventilation on the back of the oven One ventilation adjustment on the top of the oven One 5 mm Dia. slot on the top for an additional thermocouple probe Door Glass Protected by Exclusive Polycarbonate Safety Shield Airtightness Enhanced by Silicone Door Gasket and Positive Latch Door Compliance CSA-US Certificated for both USA & Canada (for 110V version only) CE Certificated (for both 110V and 220V) Operation Manual (for existing customers only) Application Notes For accurate temperature recording, you shall calibrate the temperature by Temperature Calibrating Kit by yourselves, and set the temperature offset in the controller Please click here to learn How to calibrate the oven temperature and set the temperature offset

Working Voltage 110/220 VAC selectable
Power Consumption 1500W Max.
Operating Temperature 0-250°C
Chamber
  • Interior Material: 304 Stainless Steel
  • Dimensions: 17.7"(L) x 15.7"(W) x 17.7"(H) (450 mm x 400 mm x 450 mm)
  • Volume: 80 L
  • Dia. 5 mm Small window on the roof for additional thermocouple probe
  • 2 removable steel rack shelves, and max loading of 8 Kg per shelf
Temperature Controller
  • Single point setting temperature controller with +/- 1°C accuracy. Build-in over-temperature, thermocouple failure protection alarm
  • Build-in over-temperature, thermocouple failure protection alarm
  • Secondary over temperature protection and auto power cut-off for the heating elements
Insulation 3" (7.6 cm) glass wool insulation prevents heat loss from the working chamber
Ventilation
  • Two hot air ventilation on the back of the oven
  • One ventilation adjustment on the top of the oven
  • One 5 mm Dia. slot on the top for an additional thermocouple probe
Door Glass Protected by Exclusive Polycarbonate Safety Shield
Airtightness Enhanced by Silicone Door Gasket and Positive Latch Door
Compliance
CSA-US Certificated for both USA & Canada (for 110V version only)
CE Certificated (for both 110V and 220V)
Operation Manual  (for existing customers only)
Application Notes
