Bifunctional Electrolyzer with Electrolyte Flow Chamber for Gas-Diffusion Electrode (GDE) or Membrane Electrode Assembly (MEA) System Testing - MEA-GDE-BEEFC

Bifunctional Electrolyzer with Electrolyte Flow Chamber for Gas-Diffusion Electrode (GDE) or Membrane Electrode Assembly (MEA) System Testing - MEA-GDE-BEEFC

RM0.00 MYR
RM0.00 MYR
Skip to product information
Bifunctional Electrolyzer with Electrolyte Flow Chamber for Gas-Diffusion Electrode (GDE) or Membrane Electrode Assembly (MEA) System Testing - MEA-GDE-BEEFC
  • Bifunctional Electrolyzer with Electrolyte Flow Chamber for Gas-Diffusion Electrode (GDE) or Membrane Electrode Assembly (MEA) System Testing - MEA-GDE-BEEFC
Bifunctional Electrolyzer with Electrolyte Flow Chamber for Gas-Diffusion Electrode (GDE) or Membrane Electrode Assembly (MEA) System Testing - MEA-GDE-BEEFC

Bifunctional Electrolyzer with Electrolyte Flow Chamber for Gas-Diffusion Electrode (GDE) or Membrane Electrode Assembly (MEA) System Testing - MEA-GDE-BEEFC

SKU: bifunctional-electrolyzer-with-electrolyte-flow-chamber-for-gas-diffusion-electrode-gde-or-membrane-electrode-assembly-mea-system-testing-beefc-gde-mea

Price: RFQ

Description

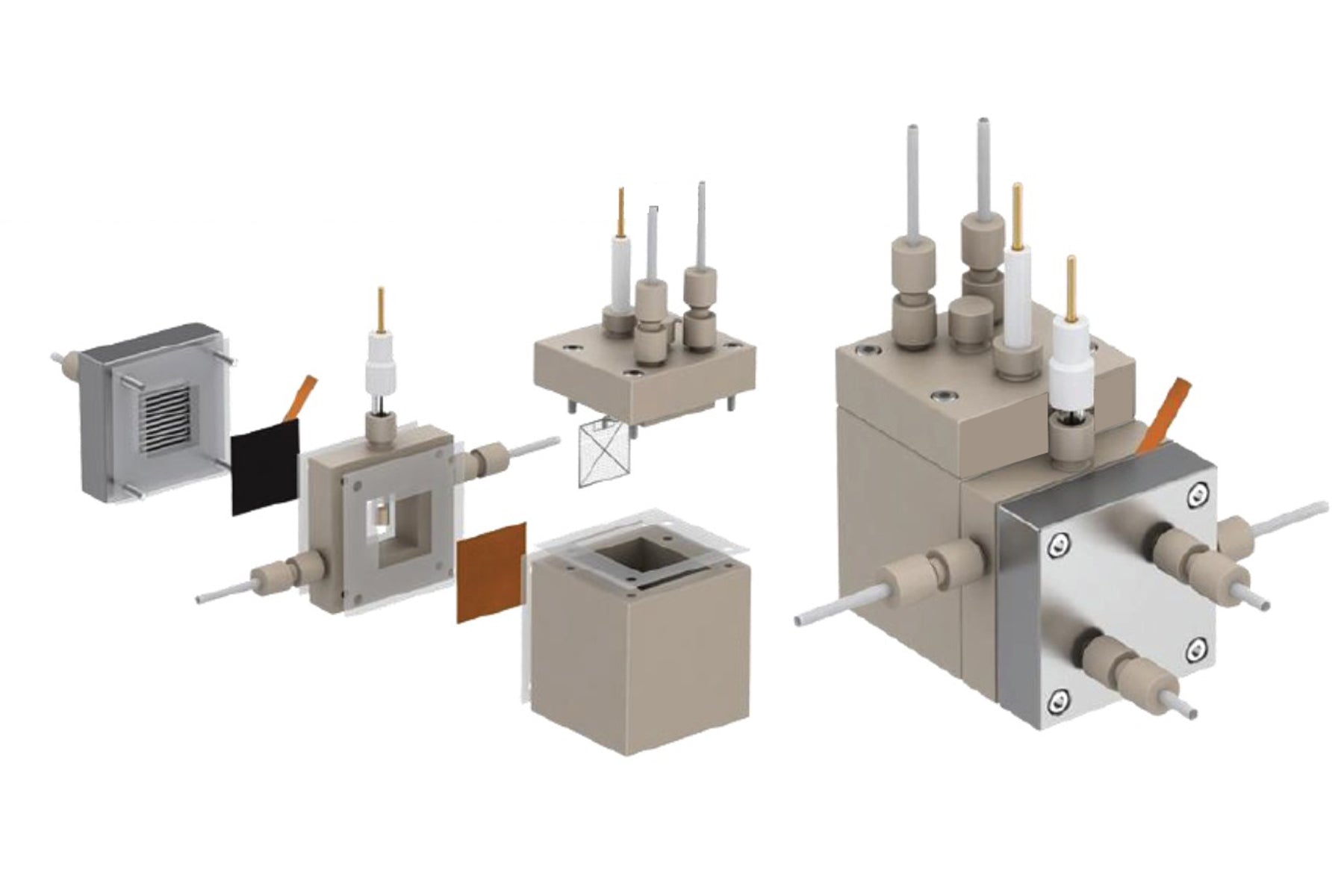

MEA-GDE-BEEFC is a bifunctional flow cell electrolyzer with an electrolyte flow chamber and a three-electrode configuration for testing of the GDE or MEA system.

SPECIFICATIONS:

Structural Features
  • The cathode chamber with snakelike channels is made of Ti metal with good corrosion resistance.
  • PTFE gaskets with high electrochemical corrosion properties
  • Pt counter electrode and Ag/AgCl reference are not included in the package.
Cell Features 2 cm * 2 cm (other area, such as 3 cm*3 cm, and 5 cm* 5cm can be customized upon request )
Valves & Fittings 3 mm PTFE Tubing for liquid/gas flow
Application Option

If customer want to put the reference electrode in a individual chamber, we can provide the following option:
Warranty One -Year limited manufacture warranty with lifetime support
Operation Instructions
