8 Channels Coin Cell Testing Board with Cable & Optional Connector for BST8 Series Battery Analyzers - BC8C

• 8 cables with optional connectors are included in the standard package for immediate use

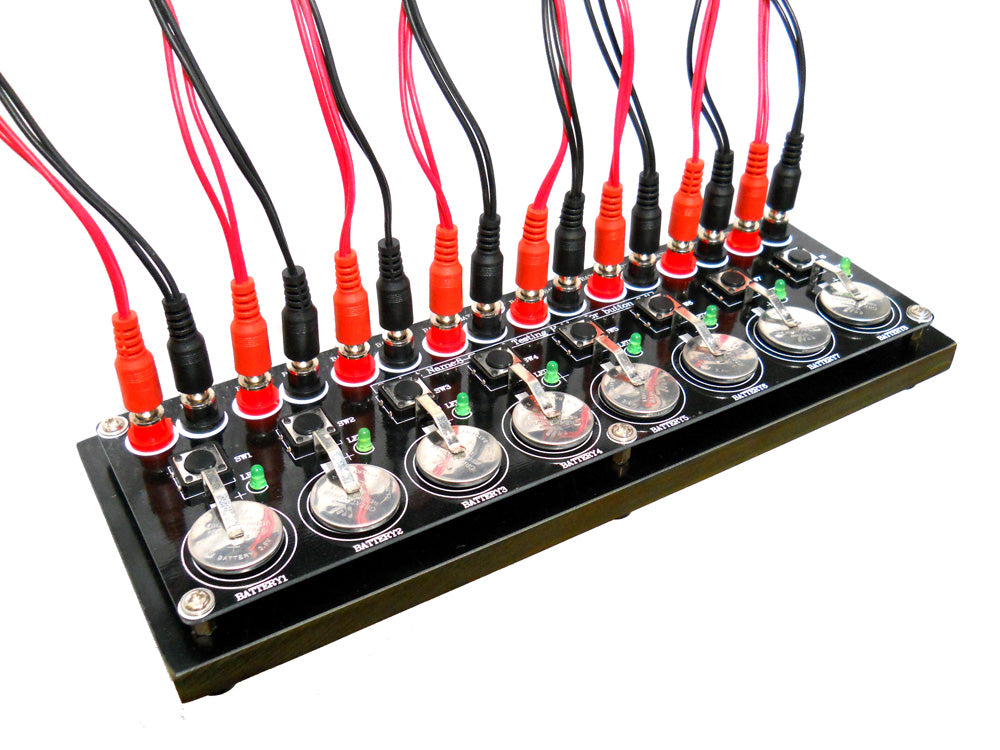

  • The connectors to the board are the banana plug for easy insertion and removal,(AS Shown in pic-1). The Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2 mm
  • Another end or of connector testing system are optional connectors (choose the right one for you from above "connector type" when order)
    • 4-pin bayonet connectors compatible with MTI's battery analyzers only (Pic. 2 & 3)

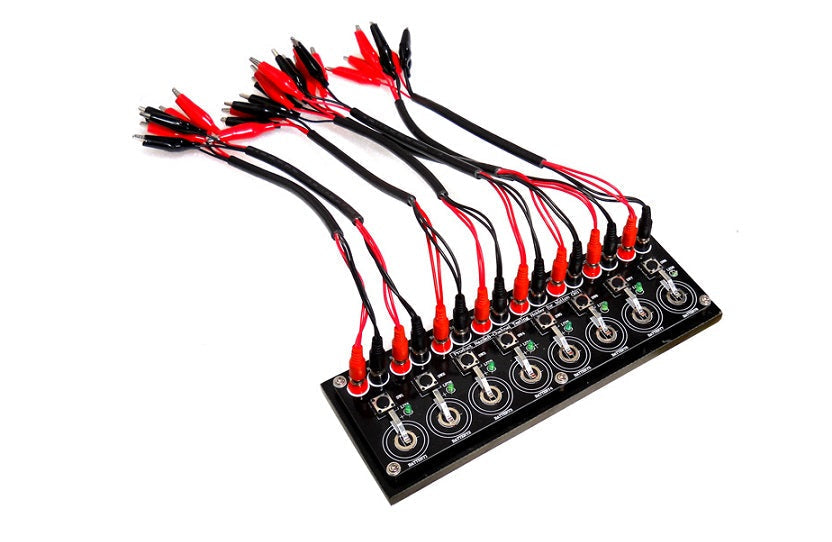

    • 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system (Pic. 4 & 5)
•

• Built-in battery polarity check light will be on when right place the coin cell and press down the check button
• Can test coin cell with diam. up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450
• 8 channels work independently
• Easy battery insertion and removal
• Holder Material: Polypropylene
• Dimension: 230 mm L x 80 mm W x 32 mm H

Click for: Operation Manual
