Description

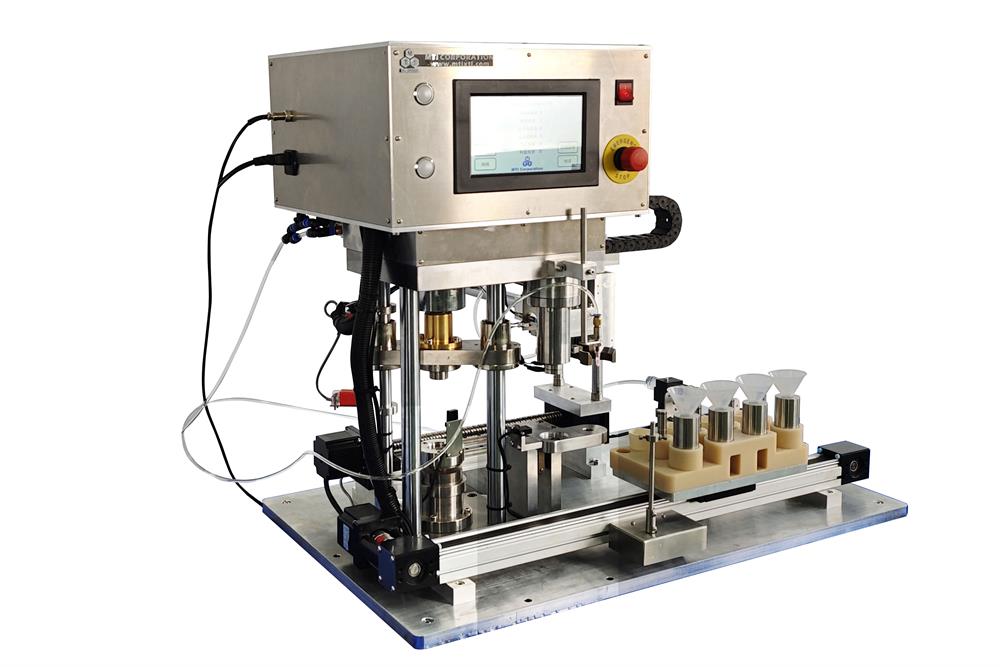

AM-YLJ-8T is an automated pellet press that automates pressing die assembling, pellet press, die dissembling, and pellet retrieval. This compact, glovebox-friendly unit is programmable via an LCD touchscreen and compatible with various types of powder in a fast and accurate manner for powder palletization. The modular design can be used solely for 6 samples per batch or pairs with automated MTI materials preparation system for autonomous experiments. The free software advances instrumental communication and data acquisition.
SPECIFICATIONS:
| Operation procedures |
- Program operation procedure in PC or touchscreen - including pressing pressure and holding time
- Manually load powders into 6 pressing dies. and start the program.
- The system
- Place the top plunger
- Move the pressing die for pressing and dwelling at the setting pressure
- Take out the sample via a demolding process
- Place the bottom core into a plastic holder
- Place the sample inside a clean plastic cup.
- Throughput: 60 minutes per 6 samples.
|
| Power |
- 120 or 208-240 VAC, single phase, 50/60 Hz.
- 300 VA
|
Dry pressing die
|
- Material: Tool Steel (HRC60-62)
- Standard: 6 sets of 10 mm diameter dies are included.
- Max pressure: 1000 MPa, 78.6 KN
- Please contact MTI for more information. Different diameters of pressing dies are also available.
|
| Compliance |
- CE Certified
- NRTL certification is available upon request at the extra cost of $3500.00
|
