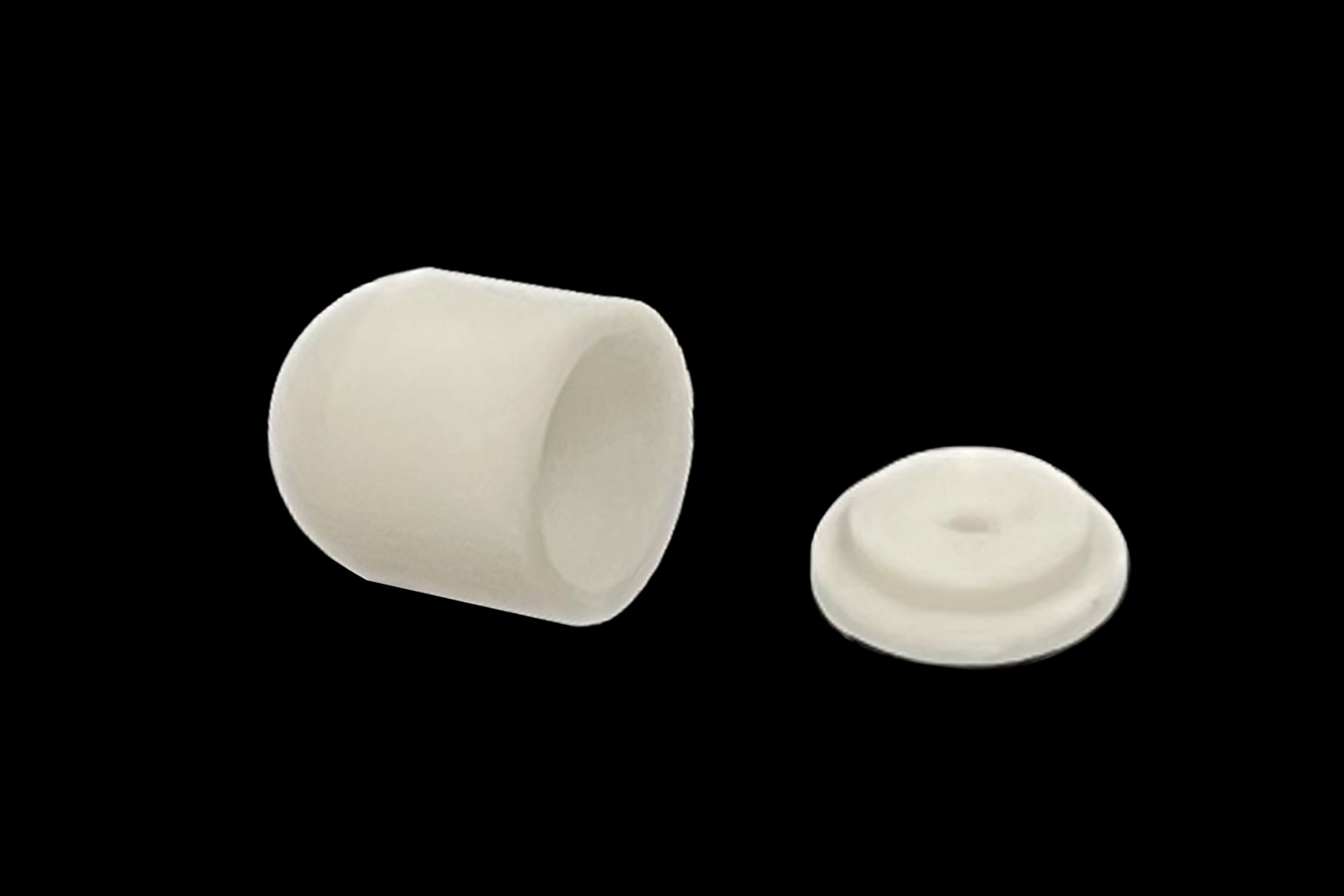

Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550
  • Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550
  • Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550
Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550

Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550

SKU: alumina-crucible-high-purity-4-5-mm-dia-x-5-mm-h-cylindrical-with-lid-for-thermal-analysis-pe-ca4550

Price: RFQ

Specifications

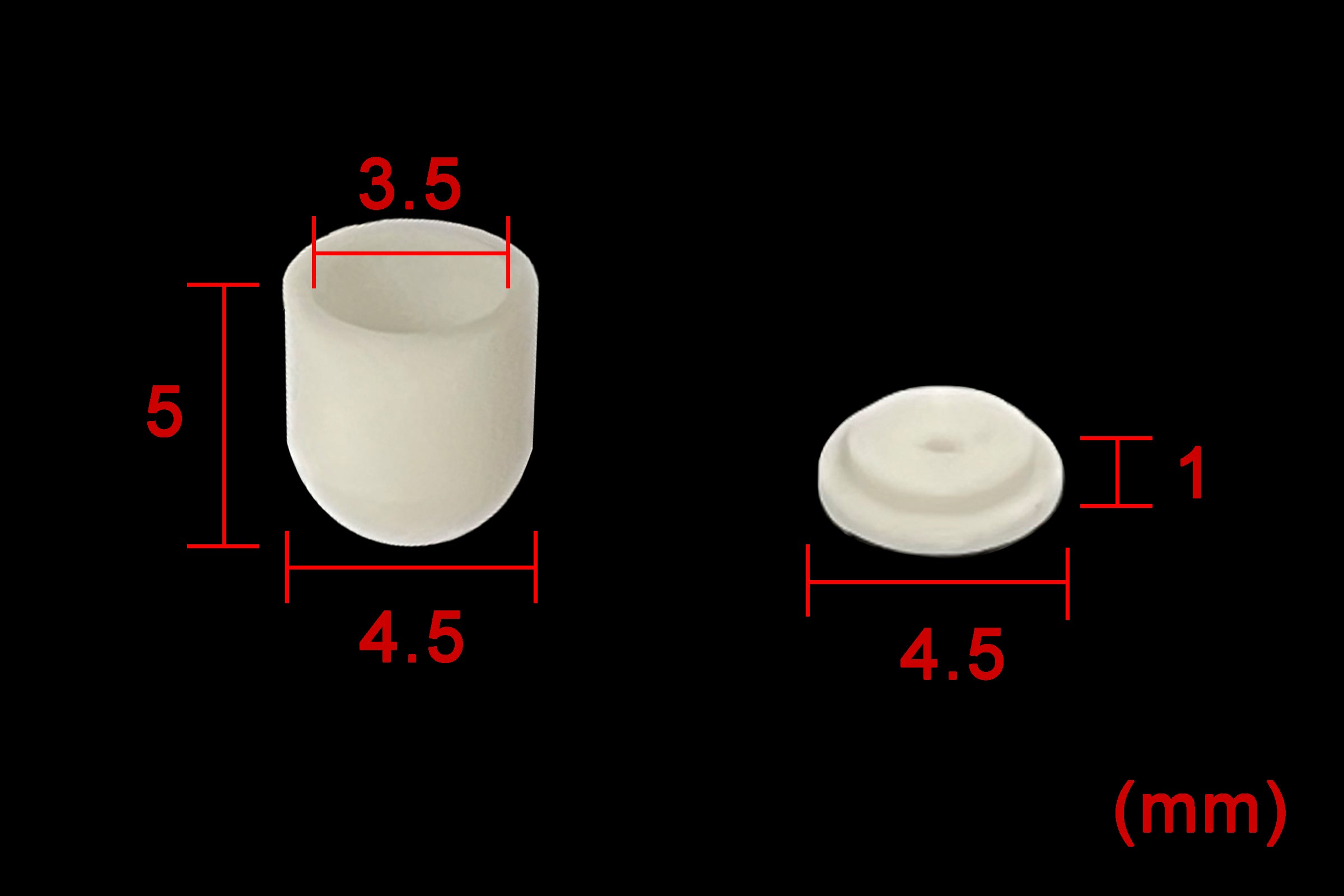

 Features: One high-purity Alumina cylindrical crucible with a covering lid for chemical calcining, metal casting, and ceramic sample preparation. Dimension: Crucible: 4.5 mm OD; 3.5 mm ID; 5 mm Height Lid: 4.5 mm Diameter; 1 mm Height. Please click the pic below for more details. Shape: Cylindrical, as the picture shown Purity: Al 2 O 3 > 99.5% ; Fe 2 O 3 < 0.01% 100% impervious Density: > 3.8 g /cm 3 Capacity: ~ 0.03 ml Max. working temperature: 1750°C or 3180°F Please notice that there is a small hole in the lid. Note: Never heat and cool faster than 5°C/min. Otherwise, the crucible may crack. Alumina crucibles are made by casting method, which does not have precise dimensions. Alumina Crucibles / Boats Boron Nitride Crucibles Graphite Crucible Quartz Crucibles Y2O3 Crucible Zirconia Crucibles / Boat Molybdenum Crucible Thermoelectric Testing Fixtures Inspect your delivery: Please check package for damages before accepting delivery. Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI. No Warranty: Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
