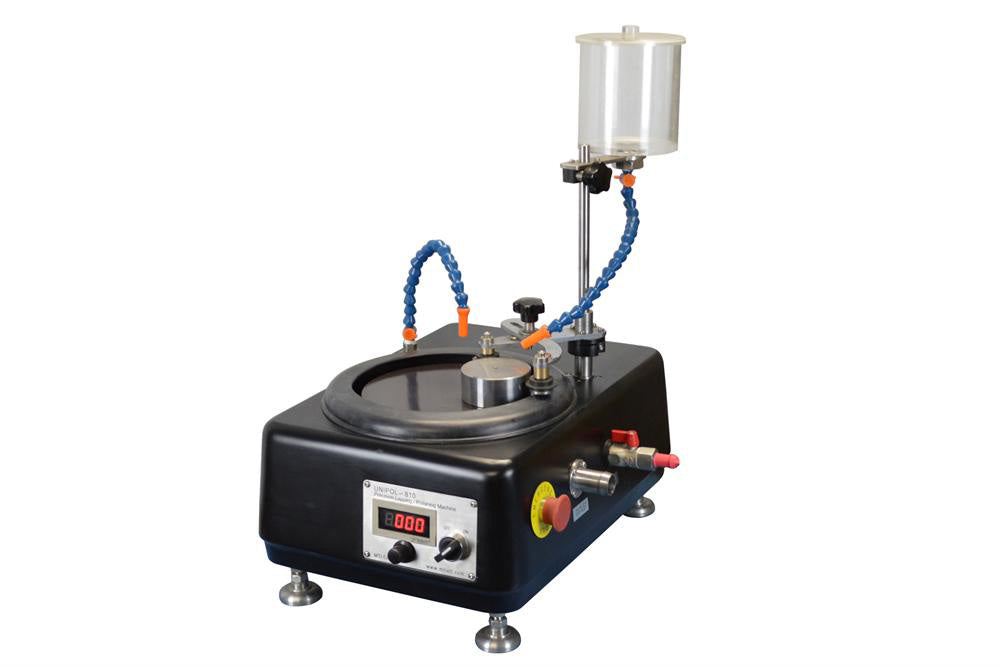

Multi Purpose Precision 8" Polishing Machine with Fixed Yoke & Complete Accessories -Unipol-810

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation
( Voltage sawitch is in the back of the machine)

• Heavy-duty cast aluminum case with the painting surface
• Belt drive with high torque and quiet operation
• 8" dia Super flat lapping plate
• Condition ring with one 75 mm dia flat sample holder for lapping polishing flat component
• 3" dia. flat sample holder for polishing flat sample
• 75 mm dia. sample holder with three holes to allow polishing three metallographic samples up to 1" dia. at one time, which is available as optional
• Yoke without swing to allow polishing automatically

• Two 8" PSA Diamond Lapping plates with 320 mesh and 600 mesh separately for fast lapping/grinding
• Two 8" PSA polishing pads for final polishing
• 10g 0.5 micron diamond paste for faster polishing

• 3" Sample Holder with 3 Holes 1" diameter round mount and two weights
• 2" Polishing Fixture for Precision / Automatic Thinning and Polishing is available (click pic left-2 to order)
• Accessory equipment (slurry feeder, carrier/chuck, thickness meter, weights, etc) Click to enter
• Consumables for polishing/lapping/grinding (sandpaper, pad, plate, slurry, molding, coolant, etc). Click to enter





• CE Certified
• NRTL certification is available at an extra cost

• One year limited with lifetime support
• Rusting and damage due to improper storage condition or maintenance are not covered by warranty
