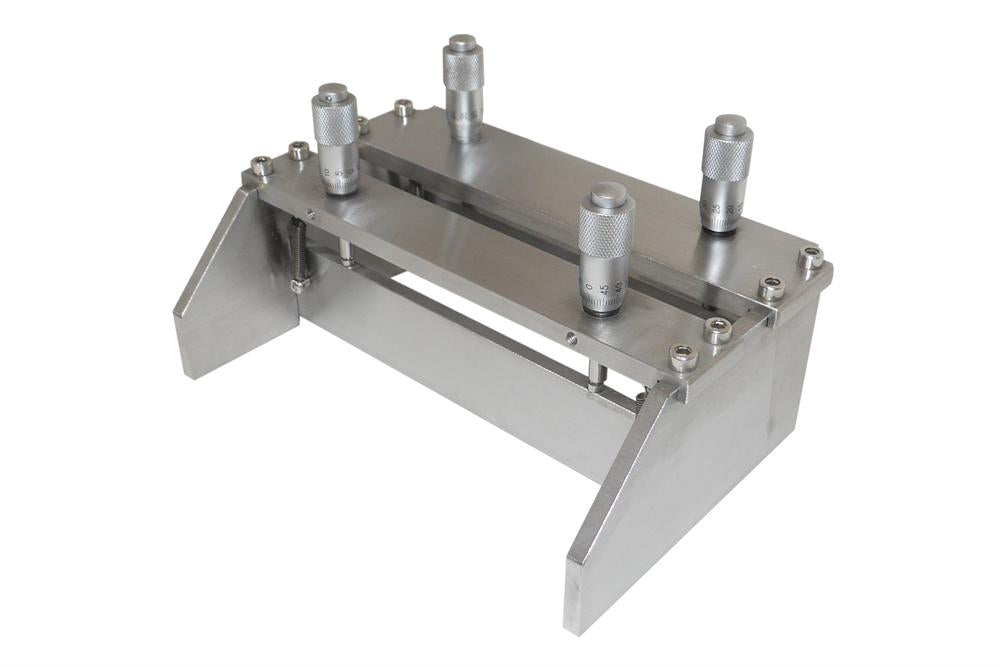

Double Blade Micrometer Film Applicator With Width of 150 mm (Film casting doctor blade) - SeKTQ150D
  • Double Blade Micrometer Film Applicator With Width of 150 mm (Film casting doctor blade) - SeKTQ150D
  • Double Blade Micrometer Film Applicator With Width of 150 mm (Film casting doctor blade) - SeKTQ150D
Double Blade Micrometer Film Applicator With Width of 150 mm (Film casting doctor blade) - SeKTQ150D

Double Blade Micrometer Film Applicator With Width of 150 mm (Film casting doctor blade) - SeKTQ150D

SKU: se-ktq-150d

Price: RFQ

Specifications

 EQ-Se-KTQ-150D is a double-blade wet film applicator with adjustable thickness, which can make film casting more uniform. This is an excellent tool to make higher-quality film for tape casting, battery electrodes, and various coatings at a lower cost. Stainless steel knife blade with a precision ground edge. SPECIFICATIONS: Features Two blades with adjustable height from 0 - 6 mm; Double-blade can improve uniformity: some pastes have small particles or agglomeration, and one scraper can't be smoothed, and need the second scraper to smooth it. The final thickness is also dependent on the second scraper. Width: 150 mm; Make wet film thickness between 0 - 6000 microns; The micrometer head's controllable accuracy is ~10 microns. Structure Replacement Purchase spare parts springs or micrometer heads for replacement. Optional Upgrade to the digital micrometers for better accuracy, with a customized doctor blade NOT a naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit. Digital Micrometer


Features
  • Two blades with adjustable height from 0 - 6 mm;
  • Double-blade can improve uniformity: some pastes have small particles or agglomeration, and one scraper can't be smoothed, and need the second scraper to smooth it. The final thickness is also dependent on the second scraper.
  • Width: 150 mm;
  • Make wet film thickness between 0 - 6000 microns;
  • The micrometer head's controllable accuracy is ~10 microns.

Structure

Replacement		 Purchase spare parts springs or micrometer heads for replacement.

Optional
  • Upgrade to the digital micrometers for better accuracy, with a customized doctor blade
  • NOT a naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit.
Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
,
Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
