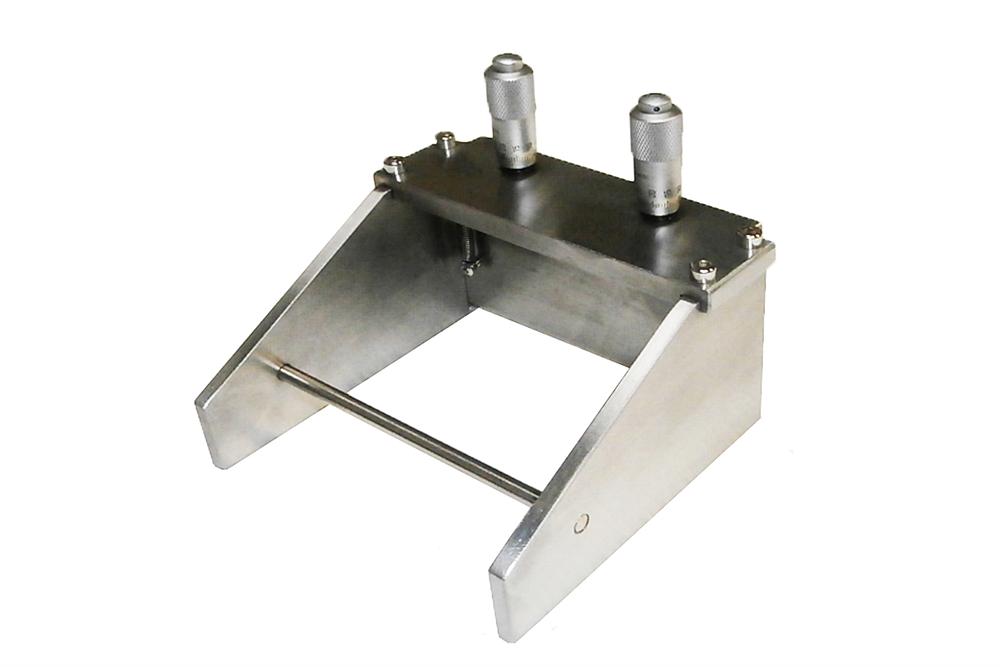

Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - SeKTQ100
  • Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - SeKTQ100
  • Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - SeKTQ100
  • Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - SeKTQ100
Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - SeKTQ100

Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - SeKTQ100

SKU: se-ktq-100

Price: RFQ

Specifications

 Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment. The operator sets the blade clearance by adjusting the micrometers. This is an excellent tool to make quality film for material research laboratories for ceramic tape casting, battery electrodes, and various coating at a lower cost. Stainless steel knife blade with a precision ground edge. SPECIFICATIONS: Features 100 mm standard width Make wet film thickness between 0 - 3500 microns The micrometer head's controllable accuracy is 10 microns Made of SS304 stainless steel Structure & Dimension Application Notes Replacement springs and micrometer heads are available for future maintenance, please click on the picture below to order Optional Upgrade to the digital micrometers for better accuracy, with a customized doctor blade. Note that the for 100mm applicator, the two digital Micrometer Heads need to sit a little angle as shown in the picture due to the width. NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit. Digital Micrometer


Features
  • 100 mm standard width
  • Make wet film thickness between 0 - 3500 microns
  • The micrometer head's controllable accuracy is 10 microns
  • Made of SS304 stainless steel

Structure & Dimension

Application Notes		 Replacement springs and micrometer heads are available for future maintenance, please click on the picture below to order

Optional

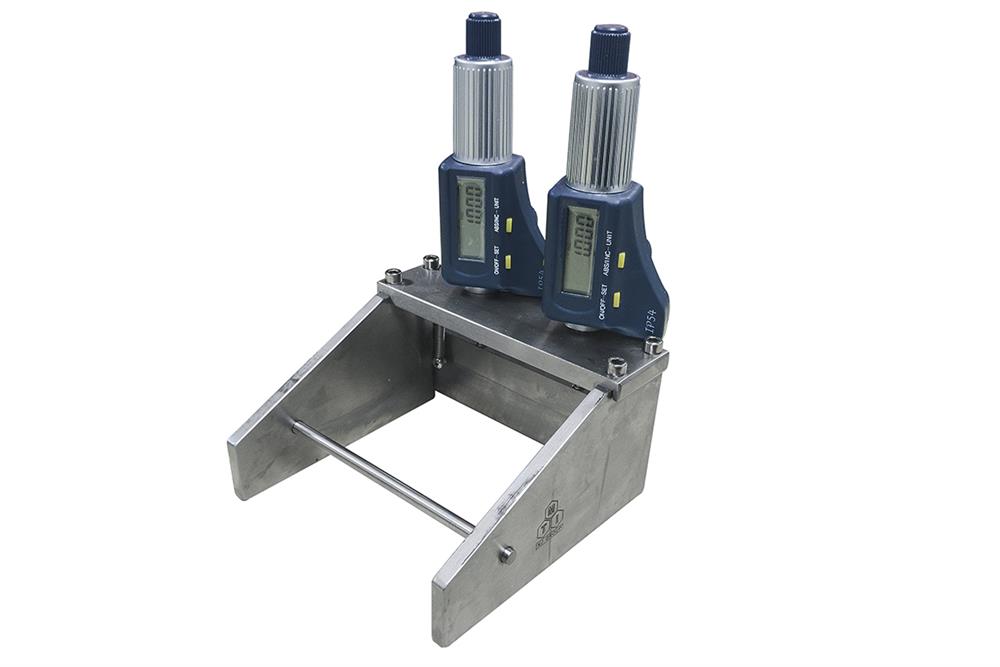

  • Upgrade to the digital micrometers for better accuracy, with a customized doctor blade. Note that the for 100mm applicator, the two digital Micrometer Heads need to sit a little angle as shown in the picture due to the width.
  • NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order a customized doctor blade, the separate order would not fit.
Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
Application Notes

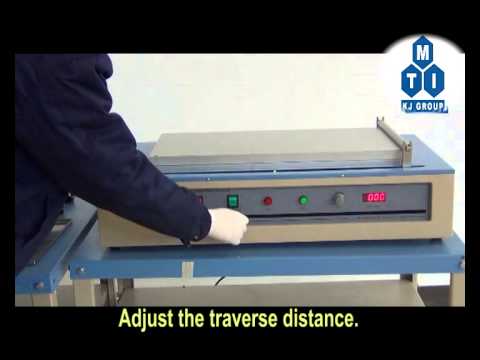

  • You may order our tape casting coater width vacuum bed for this film applicator (click Pic below left to order )
  • Replacement springs are available for future maintenance, please click on the picture below to order
  •
,
Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
