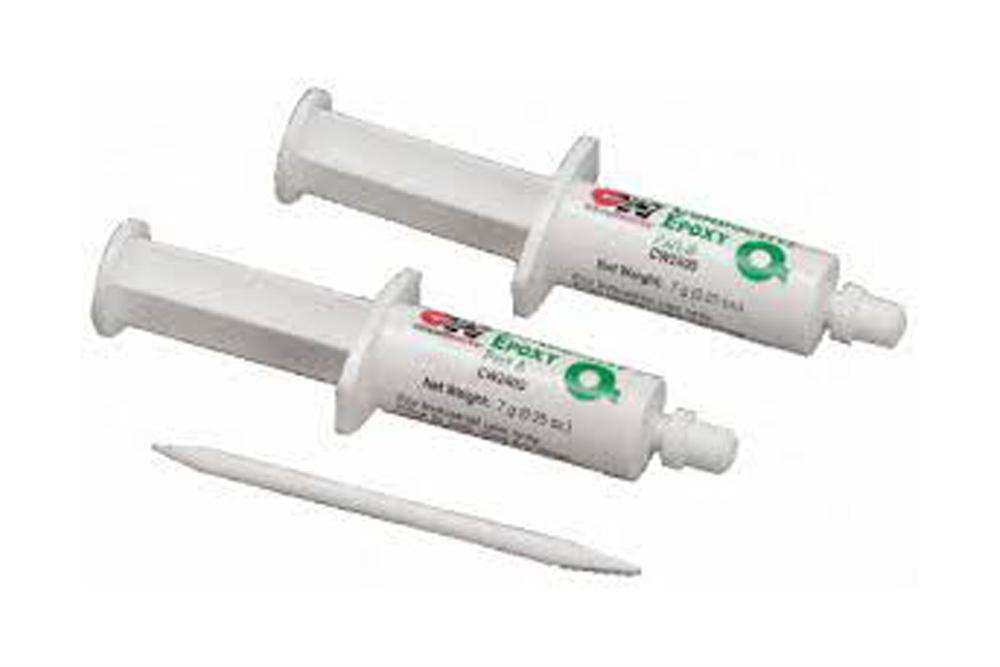

High Conductive Silver Epoxy for Target Bonding -SP-05000-AB-LD

High Conductive Silver Epoxy for Target Bonding -SP-05000-AB-LD

RM0.00 MYR
RM0.00 MYR
Skip to product information
High Conductive Silver Epoxy for Target Bonding -SP-05000-AB-LD
  • High Conductive Silver Epoxy for Target Bonding -SP-05000-AB-LD
High Conductive Silver Epoxy for Target Bonding -SP-05000-AB-LD

High Conductive Silver Epoxy for Target Bonding -SP-05000-AB-LD

SKU: sp-05000-ab-ld

Price: RFQ

Description

The silver epoxy is ideal for bonding the nonmetallic plasma sputtering targets and the copper backing plate. The silver epoxy is mixed at a non-critical 1 to 1 ratio by weight or volume, and it will provide a quick conductive bond at or above room temperature. Typical cure times are approximately 4 hours at 75°C.


SPECIFICATION

Model Silver Epoxy
Conductivity
  • Volume Resistivity < 0.001 ohm-cm
  • Excellent electrical conductivity
  • High-strength conductive bonding
Weight 14 g (0.5 oz) total
Color Silver
Shelf Life 9 months
Curing
  • Small amounts can take several hours to cure at room temperature.
  • Cure times can be accelerated by heating.
  • For the fastest curing times, maximum conductivity and adhesion, heat the bond to between 175° - 250°F (79° - 121°C) for 10 minutes and allow to cool
Application Notes
  • Causes eye and skin burns. Harmful if absorbed through the skin. Causes Respiratory tract irritation. May cause allergic skin reaction.
  • Do not try to cure below 75°F/24°C.
  • Working temperature range is -131° to 212°F (-55° to 100°C).
  • Typical working pot life is 10 minutes from mixing.
  • Please email us to learn about Iridium Solder Bonding
