Description
|

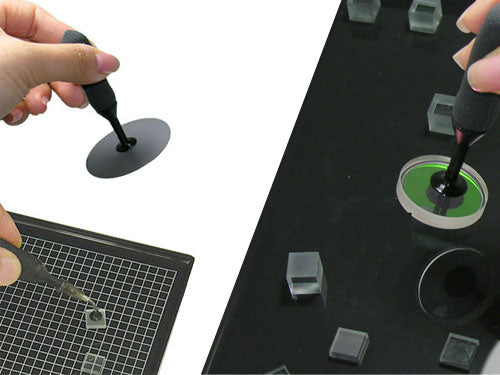

SMT-72 is a compact and portable pick-up tool, which can move chip, crystal wafer and components safely and easily. Vacuum suction is generated by pressing and releasing the trigger. Four suction cups in different sizes are included, which can meet various specific requirements, the pen body is made of ESD silicon Rubber to ensure operation safely and cleanly.
|
 |
4 Suction Cups are included
| Part Number | Dia.(mm) | Material |
| VMC-02 | 6.4mm | Conductive Silison |
| VMC-03 | 9.5mm | Conductive Silison |
| VMC-04 | 12.5mm | Conductive Silison |
| VMC-05 | 19mm | Conductive Silison |
| Type &Dimension | Dia (mm) | Suction (g) | Probe Type | Body Material |
| SMT-72 ESD Dia.13 x 72mm | 6.4/9.5/12.5/19 | 15/30/80/150 | Straight/Bend | ESD Silicon Rubber |
