Semi-automatic 300 mm Wide Slot-die Film Applicator with Rollers(Ar Gas Compatible) - SE-KTQ-300SD-A
  • Semi-automatic 300 mm Wide Slot-die Film Applicator with Rollers(Ar Gas Compatible) - SE-KTQ-300SD-A
  • Semi-automatic 300 mm Wide Slot-die Film Applicator with Rollers(Ar Gas Compatible) - SE-KTQ-300SD-A
  • Semi-automatic 300 mm Wide Slot-die Film Applicator with Rollers(Ar Gas Compatible) - SE-KTQ-300SD-A
Semi-automatic 300 mm Wide Slot-die Film Applicator with Rollers(Ar Gas Compatible) - SE-KTQ-300SD-A

Semi-automatic 300 mm Wide Slot-die Film Applicator with Rollers(Ar Gas Compatible) - SE-KTQ-300SD-A

SKU: se-ktq-300sd-a

Price: RFQ

Specifications

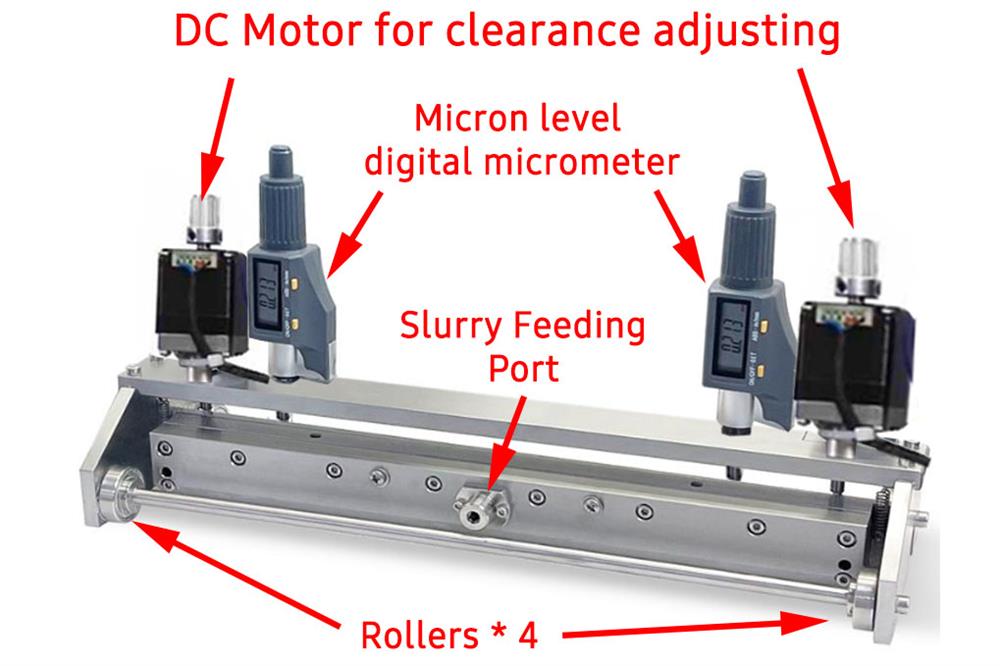

 The Se-KTQ-300SD-A is a film applicator that automatically adjusts the clearance between the slot die and the substrate. It has a 300mm coating width and four rollers to ensure that the coating is even. A 24V DC motor makes it very easy to operate and can be used in an Ar environment within a glove box . Two digital displays show the distance between the slot die and the substrate. Power Supply 110~240V 50/60Hz, single phase Power Consumption 2 * 15W DC Motors Structure Touch-free coating experience Two 24V DC motors for the automatic adjustment of the gap between the clearance between the slot die and the substrate, with both accuracy and increment of +/- 1 micron via two digital micrometers. The 300 mm wide slot die is bolted on a rolling stage with 4 wheels to reduce friction. 2 sets of stainless steel shims: 0.2mm, 0.3mm, and 0.4mm. Application Note To achieve the best coating, adjustment of suitable parameters including but not limited to slurry viscosity, slurry feeding speed, the gap between slot die and substrate, shim thickness, coating speed, drying temperature, etc. Related Products a > 400 mm wide flat-bed coater and a syringe pump are recommended.

Power Supply
110~240V 50/60Hz, single phase
Power Consumption
2 * 15W DC Motors
Structure
  • Touch-free coating experience
  • Two 24V DC motors for the automatic adjustment of the gap between the clearance between the slot die and the substrate, with both accuracy and increment of +/- 1 micron via two digital micrometers.

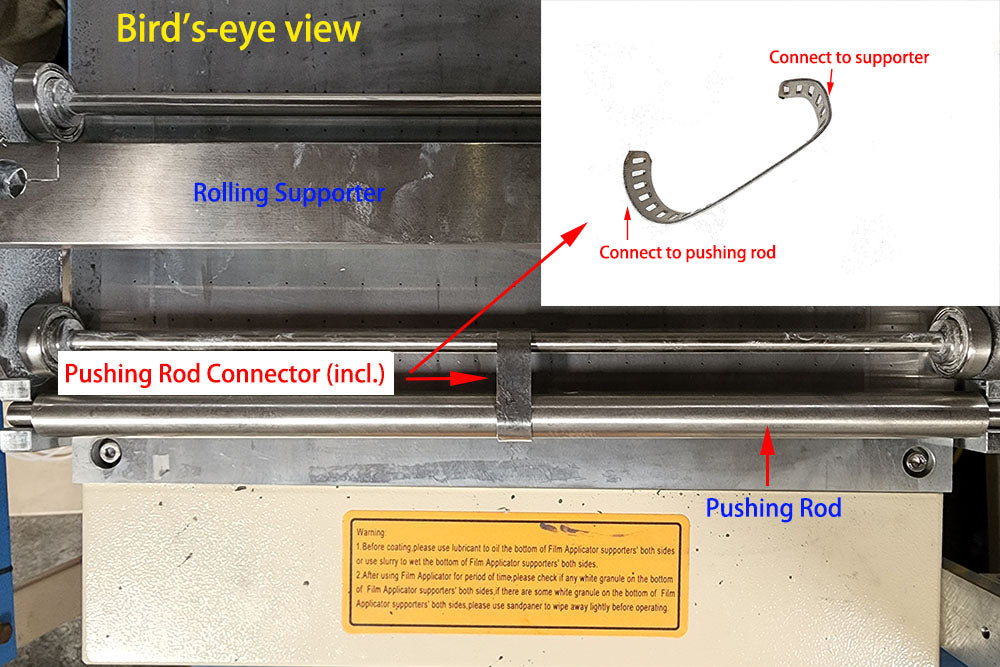

  • The 300 mm wide slot die is bolted on a rolling stage with 4 wheels to reduce friction.

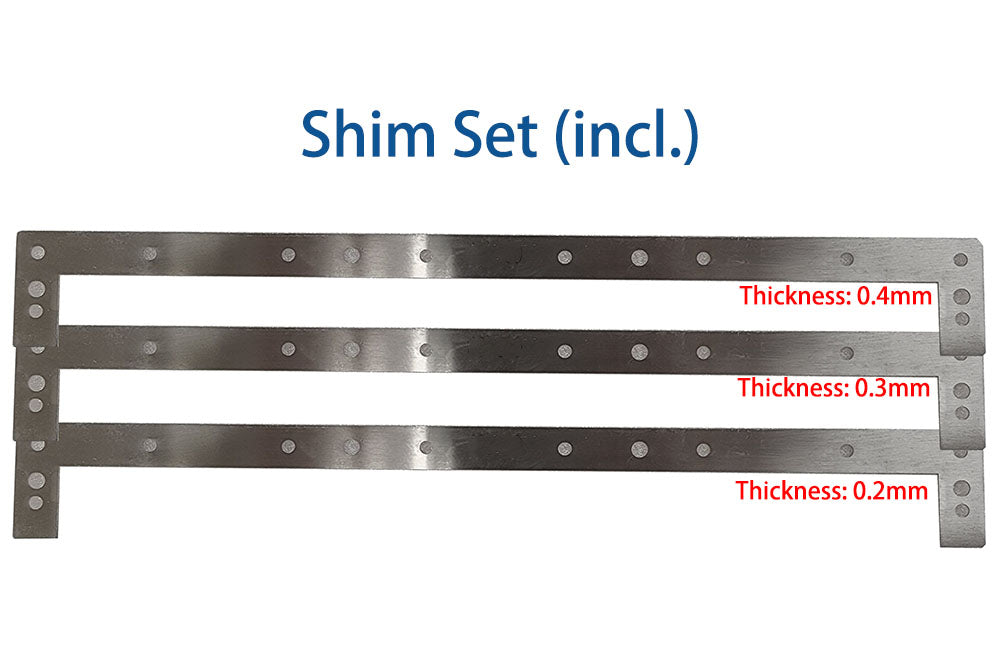

  • 2 sets of stainless steel shims: 0.2mm, 0.3mm, and 0.4mm.

Application Note

To achieve the best coating, adjustment of suitable parameters including but not limited to slurry viscosity, slurry feeding speed, the gap between slot die and substrate, shim thickness, coating speed, drying temperature, etc.

Related Products
  • a > 400 mm wide flat-bed coater and a syringe pump are recommended.
