80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80
  • 80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80
  • 80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80
  • 80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80
  • 80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80
80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80

80 mL Cr12MoV Alloy Containers w/ Adaptor for Vacuum Planetary Centrifugal Milling - PCV-SS-80

SKU: pcv-ss-80

Price: RFQ

Specifications

 The Cr12MoV steel containers are used for the planetary centrifugal vacuum mixer MSK-PCV-300-LD and MSK-PCV-310AR for nanoscale ball milling Sold in quantity of one. SPECIFICATIONS Mixing Planetary Centrifugal Vacuum Mixing The centrifugal force of rotation and revolution induces convection, homogenizing the materials With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials Container 80 ml container made of Cr12MoV Steel Adapter Aluminum adapter for the 80ml container. Maximum Mixing Volume and Weight Container Max Sample Volume Max Sample Weight Max Gross Weight (Container Included) 80 mL 60 mL 90 g 300 g Attention: Sample material overload might damage the motor and/or cause spilling. Follow both the volume and weight limit when loading the sample Application Notes Always use the mixer on level & stable surface for best performance and maximum safety Do not use the mixer in a hazardous atmosphere, or with flammable, explosive, corrosive, poisonous material! Check the chemical resistance of the container with different materials before loading the sample! Do not overload the mixer! Stop the mixing operation immediately if abnormal sound/vibration is observed Use a digital balance to make sure the sample loading is balanced before mixing Double check if the containers are mounted correctly and securely before mixing Do not open the cover lid until the rotation has completely stopped! Do not retrieve the containers and/or put hands close to the mixing fixture while the rotation has not completely stopped! Only use the included containers for the mixing operation! Double check to make sure there is no foreign object in the mixer before mixing

Mixing
  • Planetary Centrifugal Vacuum Mixing
    • The centrifugal force of rotation and revolution induces convection, homogenizing the materials
    • With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials
Container

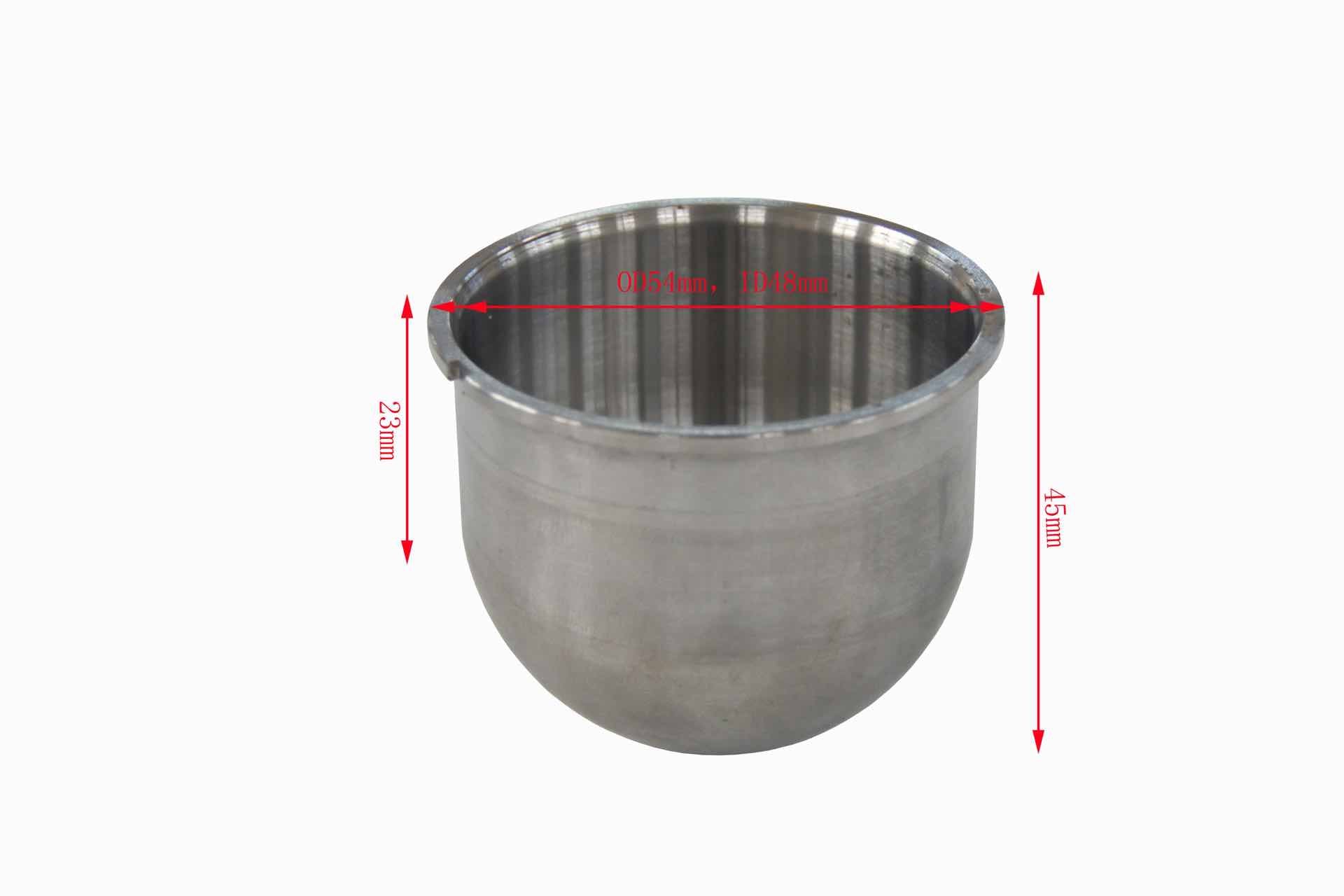

  • 80 ml container made of Cr12MoV Steel
Adapter
  • Aluminum adapter for the 80ml container.
Maximum Mixing Volume and Weight
  • Container Max Sample Volume Max Sample Weight Max Gross Weight (Container Included)
    80 mL 60 mL 90 g 300 g
  • Attention: Sample material overload might damage the motor and/or cause spilling. Follow both the volume and weight limit when loading the sample
Application Notes
  • Always use the mixer on level & stable surface for best performance and maximum safety
  • Do not use the mixer in a hazardous atmosphere, or with flammable, explosive, corrosive, poisonous material! Check the chemical resistance of the container with different materials before loading the sample!
  • Do not overload the mixer! Stop the mixing operation immediately if abnormal sound/vibration is observed
  • Use a digital balance to make sure the sample loading is balanced before mixing
  • Double check if the containers are mounted correctly and securely before mixing
  • Do not open the cover lid until the rotation has completely stopped! Do not retrieve the containers and/or put hands close to the mixing fixture while the rotation has not completely stopped!
  • Only use the included containers for the mixing operation! Double check to make sure there is no foreign object in the mixer before mixing
,
Container Max Sample Volume Max Sample Weight Max Gross Weight (Container Included)
80 mL 60 mL 90 g 300 g
