Roll to Roll Device for Laminating Rolling Machine up to 8" Width with Tension Control - MSK-RR-laminator

Working Voltage

• 220 VAC, 50/60Hz
• 220VAC Power plug is not included (Please click here to order the plug)
• You may use a 100W transformer to operate at 110V

Max. Power Consumption

• 50W

Front Panel & Speed Control

• Torque sensor control for R2R rolling press ( 110V- 240V AC)

Reeling Width

• Width is adjustable from 2" - 8" for the flexible substrate material

Traverse Speed

• The film traverse speed is dependent on its calendaring speed, normally <1.5 meters/min

Roller's O.D

• Min. roller ID 40 mm
• Two 87mm (3.43 inches) x 41 mm ID plastic roll are included for winding

Reeling/Unreeling Roll Diameter

• Max. 230mm

Optional Alignment Mechanism

• The optional alignment base allows easy alignment with precise control.
• Please select from the options bar.

Compliance

• CE certified
• Protective Cover is Optional and at an extra cost

Application Notes

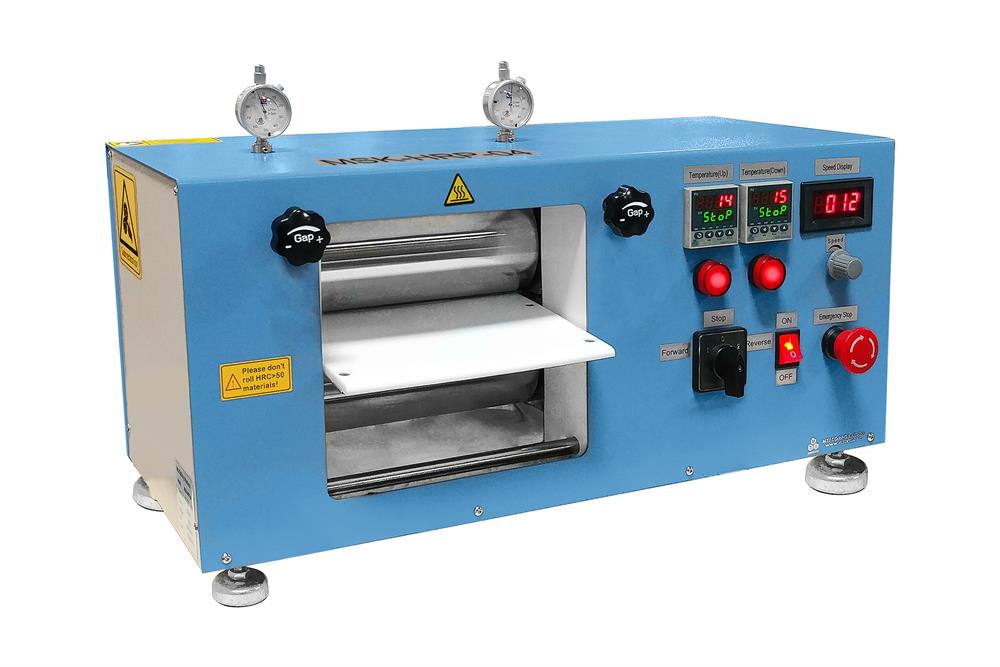

• This roll-to-roll device is compatible with MTI MSK-HRP series tabletop calendaring machines( Pic. 1& 2)

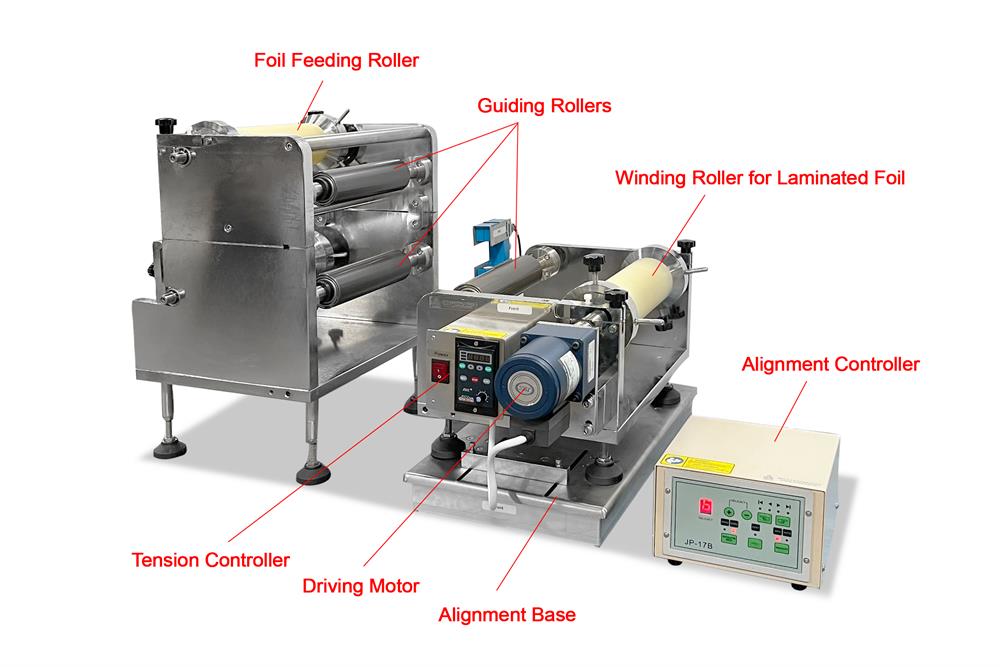

•  Automatic alignment ( rectify a deviation) device is available at extra cost ( see Pic. 3)

Pic. 1 Pic. 2 Pic. 3
