SKU: msk-110d

Price: RFQ

Description

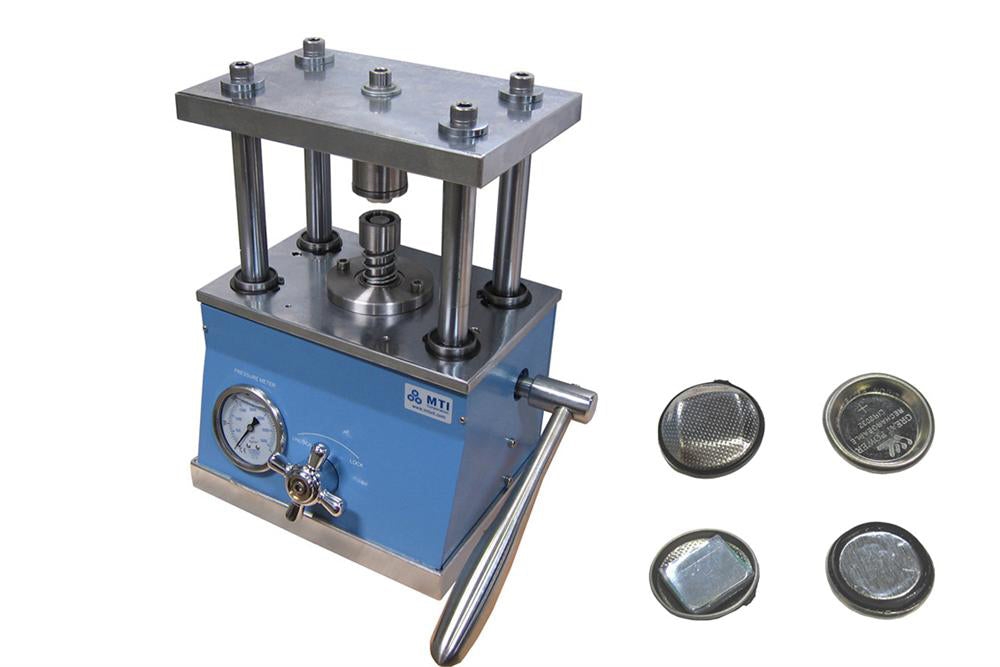

 MSK-110D is a newly designed CE Certified coin cell disassembler with lighter weight and a smaller footprint. The coin cell disassembling machine is suitable for disassembling various types of coin cells, such as CR2032, CR2025, and CR2016, without destroying the internals of the cell in order to study the materials inside. It can also disassemble CR2325, CR2450, and other special size cases with optional die sets. In addition, customers can easily replace the original die for crimping purpose. MSK-110D is designed for operations outside a glove box . (An aluminum tray is included since July 20, 2016) SPECIFICATIONS: Standard Disassembling Die One set of disassembling die for CR2032, CR2025, & CR2016 PTFE Anti-Corrosion Core prevents coin cells from being short-circuited Die is consumable, please click the picture below to order a replacement Disassembling Die PTFE Anti-corrosion Die Pressure Max. 8 metric Ton hydraulic with automatic return Structure Heavy Duty Steel Platform Compliance CE Certified Warning & Application Notes Attention: The built-in small hydraulic pump is not designed for holding high pressure. Pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell). Access the Over-pressure limit screw by removing the front panel (click first picture below for details) Disassembled coin cell cases by MSK-110D (click second picture below for details) How to Install the Disassembling Die on MSK-110D This hydraulic crimper may be not suitable for use in the 1000 grade clean room. Please consult with your cleanroom expert before purchasing. Click here to watch the video walkthrough of replacing the lifting jack. Attention: Please use MTI Branded Coin Cell Cases with our crimper. We don't guarantee the crimping quality if other brand cells are used. Maintenance & Equipment Ca Electrolytes are highly corrosive materials, therefore, the die set must be cleaned with ethanol after the completion of each experiment in order to avoid any corrosion damages. Also turn the hydraulic valve to Lock position when not in use. Please be aware of that MTI will not be liable for any losses/damages from improper use, improper care & maintenance, and abuse of the product. A 13"x9" 12 gauge commercial grade aluminum tray is included to keep the workstation clean in case of an oil leak.

Standard Disassembling Die
  • One set of disassembling die for CR2032, CR2025, & CR2016
  • PTFE Anti-Corrosion Core prevents coin cells from being short-circuited
  • Die is consumable, please click the picture below to order a replacement
Disassembling Die  PTFE Anti-corrosion Die
Pressure
  • Max. 8 metric Ton hydraulic with automatic return
Structure
  • Heavy Duty Steel Platform
Compliance
  • CE Certified
Warning & Application Notes
  • Attention: The built-in small hydraulic pump is not designed for holding high pressure. Pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell).
  • Access the Over-pressure limit screw by removing the front panel (click first picture below for details)
  • Disassembled coin cell cases by MSK-110D (click second picture below for details)

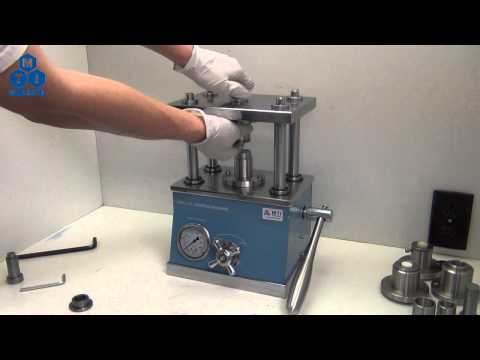

  • How to Install the Disassembling Die on MSK-110D
  • This hydraulic crimper may be not suitable for use in the 1000 grade clean room. Please consult with your cleanroom expert before purchasing.

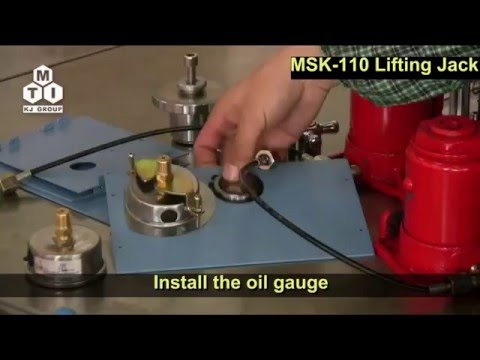

  • Click here to watch the video walkthrough of replacing the lifting jack.
  • Attention: Please use MTI Branded Coin Cell Cases with our crimper. We don't guarantee the crimping quality if other brand cells are used.

Maintenance & Equipment Ca Electrolytes are highly corrosive materials, therefore, the die set must be cleaned with ethanol after the completion of each experiment in order to avoid any corrosion damages. Also turn the hydraulic valve to Lock position when not in use. Please be aware of that MTI will not be liable for any losses/damages from improper use, improper care & maintenance, and abuse of the product.
A 13"x9" 12 gauge commercial grade aluminum tray is included to keep the workstation clean in case of an oil leak.
