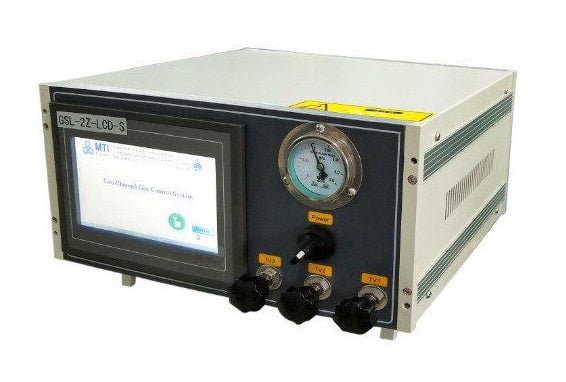

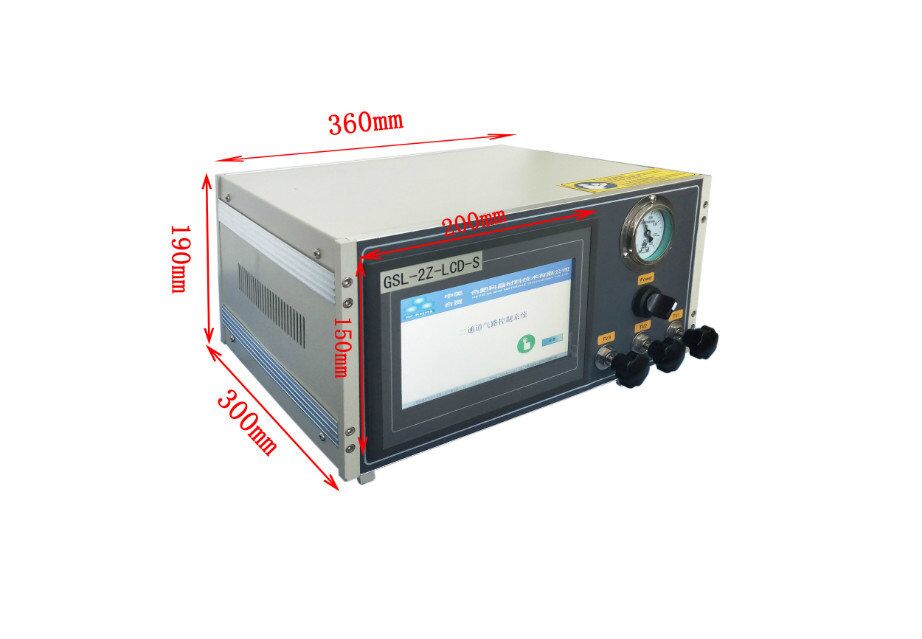

Compact 2 Channel MFC Gas Delivery System with PLC Touch Panel Control- GSL-2Z-LCD-S
  • Compact 2 Channel MFC Gas Delivery System with PLC Touch Panel Control- GSL-2Z-LCD-S
  • Compact 2 Channel MFC Gas Delivery System with PLC Touch Panel Control- GSL-2Z-LCD-S
  • Compact 2 Channel MFC Gas Delivery System with PLC Touch Panel Control- GSL-2Z-LCD-S
Compact 2 Channel MFC Gas Delivery System with PLC Touch Panel Control- GSL-2Z-LCD-S

Compact 2 Channel MFC Gas Delivery System with PLC Touch Panel Control- GSL-2Z-LCD-S

SKU: gsl-2z-lcd-s

Price: RFQ

Specifications

 GSL-2Z-LCD-S is a compact two-channel gas mixer that is designed for the control of 2 types of gasses flowing through vacuum-sealed tube furnaces at a low cost. SPECIFICATIONS Mass Flow Controller inside Note: Other range MFC can be customized at extra cost upon request. Two Precision Mass Flow Controller ( MFC) inside ) Working Temp. : 5~45 ºC Max. Pressure: 3x10 6 Pa Accuracy: ±1.5% FS Liner: ±0.5-1.5%F.S. Duplicate accuracy: ±0.2%F.S. Controlling Range: Controller 1: 1~ 99 SCCM Controller 2: 1~199 SCCM Power Voltage: AC 208 - 240V Single phase 50/60Hz Power: 100 W in total May order a 100W transformer to operate at 110VAC ( Click Pic below to order ) PLC Touch Screen 6" color touchscreen control panel to make parameter setting easy. Touchscreen Control and PC remote switchable, RS485 Port and a supplied software are included for remote operation by PC, not compatible with LabVIEW for now. Mechanical Pressure Gauge Measurement Range : -0.1~0.15 MPa (0.01 MPa/grid) Needle Valve 316 Stainless Steel Gas Pipeline One stainless steel gas mixing tank is built-in Internal pipeline: 1/4" O.D stainless steel External pipeline: 1/4" O.D PTFE Gas Mixing Tank: Φ 80X120mm Stop Valve & Fittings 316 stainless steel needle valve, Φ 1/4” Swagelok Tube Fitting Compliance All components are CE certified NRTL (UL61010) or CSA certification is available at extra cost. Oxygen Monitoring ( Optional) An Optional oxygen Sensor can be used to monitor the oxygen level of gas(es) used in CVD systems for preventing or reducing oxidation. Please click the picture left to learn more: Related Products CVD & PECVD Furnace Click pictures below to order bubbler or evaporator for CVD

Mass Flow Controller inside

Note: Other range MFC can be customized at extra cost upon request.
  • Two Precision Mass Flow Controller ( MFC) inside )
  • Working Temp. : 5~45 ºC
  • Max. Pressure: 3x106 Pa
  • Accuracy: ±1.5% FS
  • Liner: ±0.5-1.5%F.S.
  • Duplicate accuracy: ±0.2%F.S.
  • Controlling Range:
    • Controller 1: 1~ 99 SCCM
    • Controller 2: 1~199 SCCM

Power
  • Voltage: AC 208 - 240V Single phase 50/60Hz
  • Power: 100 W in total
  • May order a 100W transformer to operate at 110VAC ( Click Pic below to order )

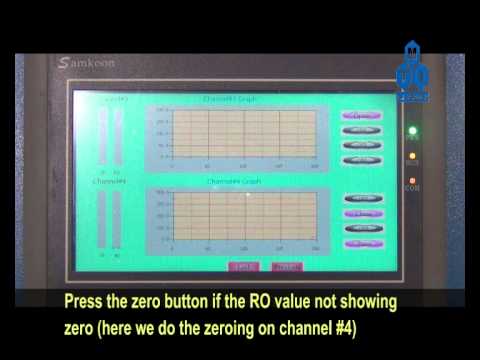

PLC Touch Screen

  • 6" color touchscreen control panel to make parameter setting easy.
  • Touchscreen Control and PC remote switchable, RS485 Port and a supplied software are included for remote operation by PC, not compatible with LabVIEW for now.
Mechanical Pressure Gauge Measurement Range:-0.1~0.15 MPa (0.01 MPa/grid)
Needle Valve 316 Stainless Steel
Gas Pipeline
  • One stainless steel gas mixing tank is built-in
  • Internal pipeline: 1/4" O.D stainless steel
  • External pipeline: 1/4" O.D PTFE
  • Gas Mixing Tank: Φ80X120mm
  • Stop Valve & Fittings
    • 316 stainless steel needle valve,
    • Φ1/4” Swagelok Tube Fitting
Compliance
  • All components are CE certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
Oxygen Monitoring ( Optional)
  • An Optional oxygen Sensor can be used to monitor the oxygen level of gas(es) used in CVD systems for preventing or reducing oxidation. Please click the picture left to learn more:
