SKU: fl-60wd

Price: RFQ

Description

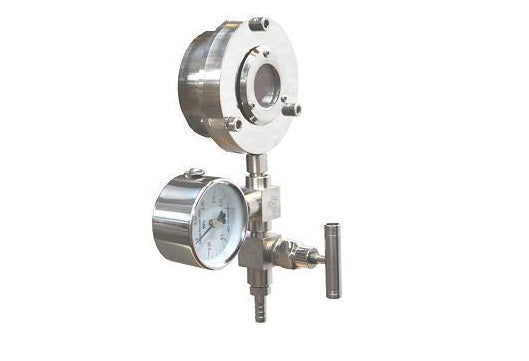

 This is a smart sealing assembly w/ quartz observation window. The user can check the inside of a reaction chamber without interrupting the process. The flange has three sizes which fit 60mm O.D processing tube. Check in the options bar. SPECIFICATIONS Package included One flange with gauge and valve, one steel sealing rings, two high-temperature silicone O-rings ( 300 o C Max.), and three screws, as well as the observation window. Feature Made of 304 Stainless Steel with double high-temperature silicon O-rings on each flange. 30 mm Dia UV grade quartz view window is installed in the center of the flange. Dial Vacuum gauge and valve are installed on the side of the flange. 1/4" hose Nipple is connected to valve. Excellent for any type of tubing: ceramic, glass, quartz and steel pipe. The assembly kit will seal 60-62 mm diameter alumina and quartz tube. Warning Refractory tube block must be placed in front of the flange (see picture below) to avoid heat radiation melting the silicone O-ring. Customers may order a ceramic block from related products below. Water cooling flange with view window is available upon request. Two flanges with view window are needed for viewing through the tube. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns. Related Please back to other Sealing flanges for 60mm (2.36") O.D tube Application Note Shine light inside the tube holding sample in the vacuum.

Package included One flange with gauge and valve, one steel sealing rings, two high-temperature silicone O-rings ( 300oC Max.), and three screws, as well as the observation window.
Feature
  • Made of 304 Stainless Steel with double high-temperature silicon O-rings on each flange.
  • 30 mm Dia UV grade quartz view window is installed in the center of the flange.
  • Dial Vacuum gauge and valve are installed on the side of the flange.
  • 1/4" hose Nipple is connected to valve.
  • Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
  • The assembly kit will seal 60-62 mm diameter alumina and quartz tube.



Warning
  • Refractory tube block must be placed in front of the flange (see picture below) to avoid heat radiation melting the silicone O-ring. Customers may order a ceramic block from related products below.
  • Water cooling flange with view window is available upon request.
  • Two flanges with view window are needed for viewing through the tube.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Related  Please back to other Sealing flanges for 60mm (2.36") O.D tube
Sealing flanges for 60mm O.D tube
Application Note Shine light inside the tube holding sample in the vacuum.
