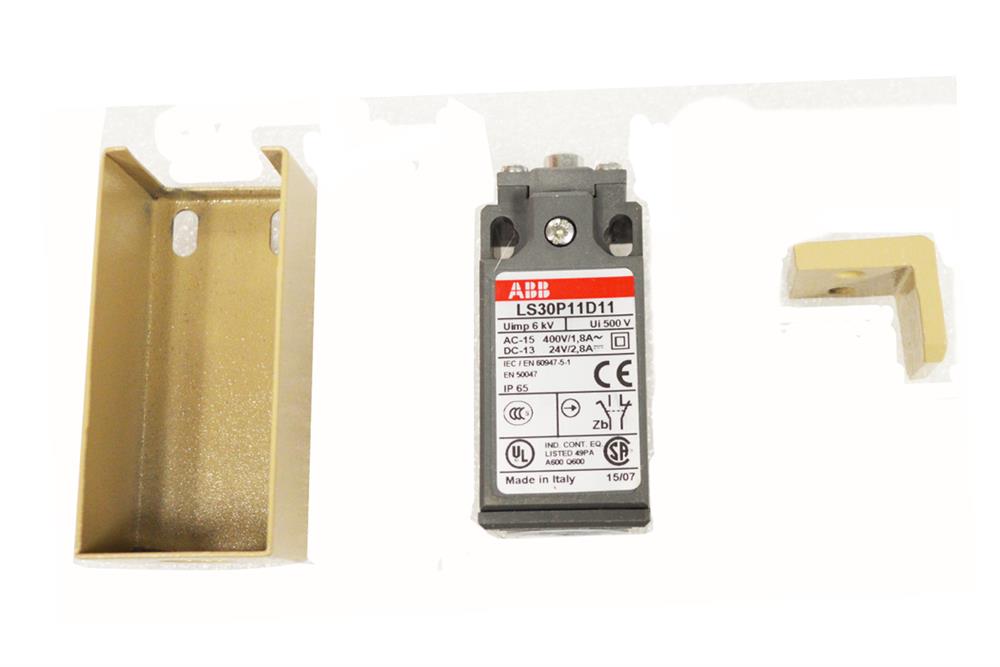

ABB Locking Interlock Switch, FA-ABB-LS30P11D11
  • ABB Locking Interlock Switch, FA-ABB-LS30P11D11
ABB Locking Interlock Switch, FA-ABB-LS30P11D11

ABB Locking Interlock Switch, FA-ABB-LS30P11D11

SKU: fa-abb-ls30p11d11

Price: RFQ

Specifications

 ABB Locking Interlock Switch is designed to guard the safety of MTI furnace, cut the power if open the lid during furnace heating process. Specification: ItemCategory Limit Switch Brand ABB Product Net Width 30 mm Net weight 0.070 kg Compliance UL Rated Insulation Voltage (Ui): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V Rated Operational Current AC-15 (Ie): (130 V) 5.5 A (230 V) 3.1 A (240 V) 3 A (24 V) 10 A (400 V) 1.8 A Rated Operational Current DC-13 (Ie): (110 V) 0.6 / 66 A (24 V) 2.8 / 67.2 A (250 V) 0.27 / 67.5 A Resistance Between Contacts: 25 m FAQ Suggest moving the part inside the interlock switch upwards more to solve malfunction.

ItemCategory
 Limit Switch
Brand ABB
Product Net Width 30 mm
Net weight 0.070 kg
Compliance UL
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
acc. to UL/CSA 600 V
Rated Operational Current AC-15 (Ie):
(130 V) 5.5 A
(230 V) 3.1 A
(240 V) 3 A
(24 V) 10 A
(400 V) 1.8 A
Rated Operational Current DC-13 (Ie):

(110 V) 0.6 / 66 A
(24 V) 2.8 / 67.2 A
(250 V) 0.27 / 67.5 A
Resistance Between Contacts:
25 m
FAQ
Suggest moving the part inside the interlock switch upwards more to solve malfunction.
Inline image 1
