1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - ALPlate

1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - ALPlate

150mm x 120mm x 10mm
RM0.00 MYR
RM0.00 MYR
Skip to product information
1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - ALPlate
  • 1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - ALPlate
1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - ALPlate

1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - ALPlate

SKU: alplate

Price: RFQ

Description

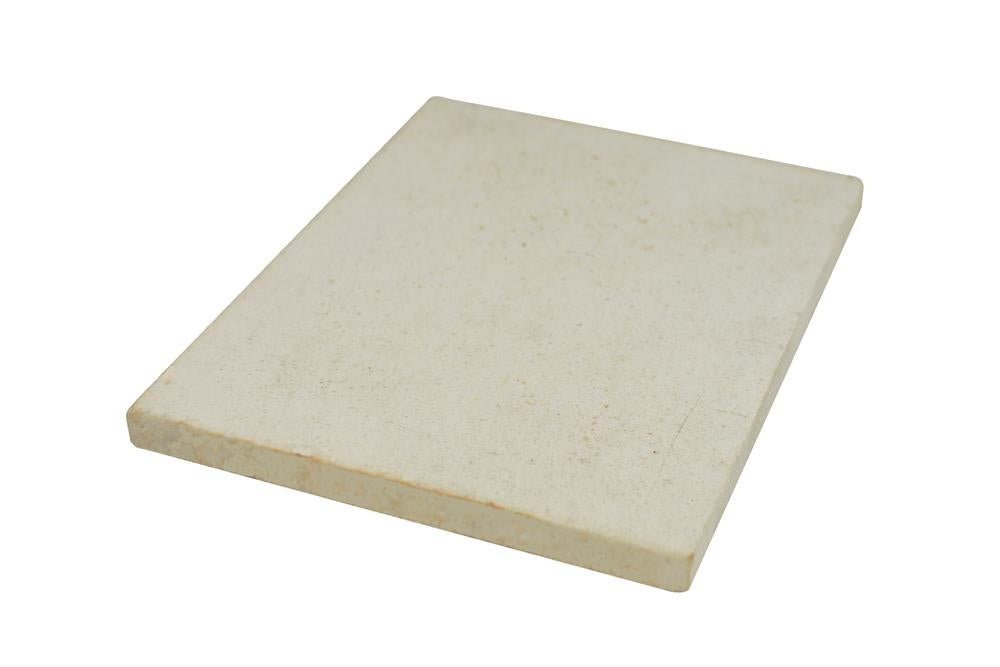

 EQ-AlPlate-1512 is a 1700 o C max r efractory alumina board to be put on the bottom of the MTI KSL-1700X muffle furnaces.




Features
  • Max Working Temperature: 1700 °C
  • Ideal for use as furnace support in sintering, heat treating, and chemical thermal process systems
  • Non-Flammable
  • Excellent thermal shock resistance
  • Resistant to oxidation and attack by furnace atmospheres
  • Excellent thermal stability
  • Product Composition: ~78% Alumina, ~21% SiO2, ~0.3% Fe2O3.
Product Dimensions
  • Size 1: 150 mm L x 120 mm W x 10 mm for KSL-1700X-A1 and A2
  • Size 2: 280 mm L x 200 mm W x 10 mm for KSL-1700X-A3
Application Note
  • Use the plate as a crucible supporter.
  • Use the plate as a workaround for the damaged furnace floor.
  • Contact us for its compatibility with other muffle furnaces.
  • Can be used as insulation packing in furnace spaces and around furnace sight tubes & ports
