Description

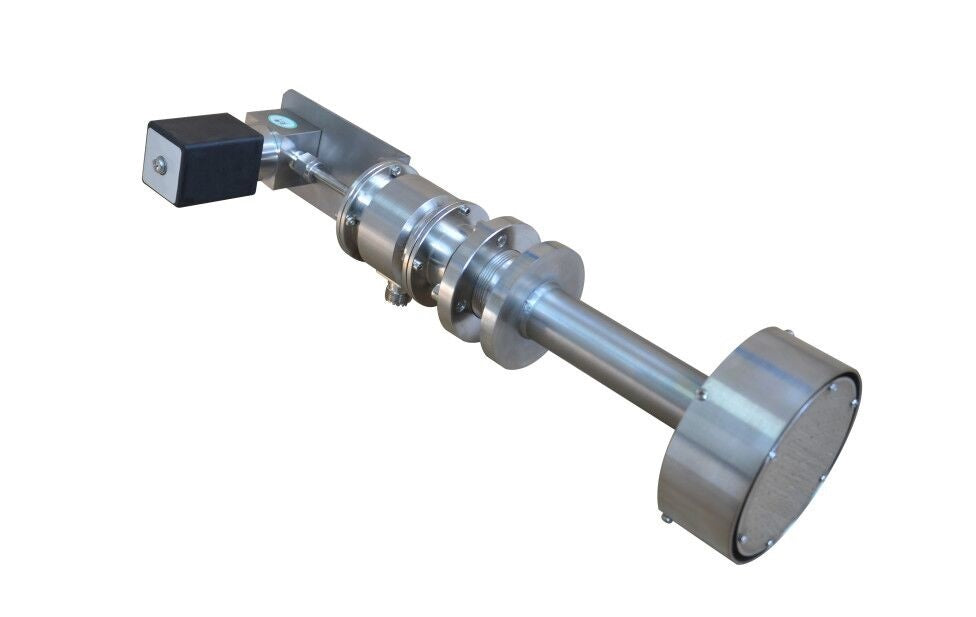

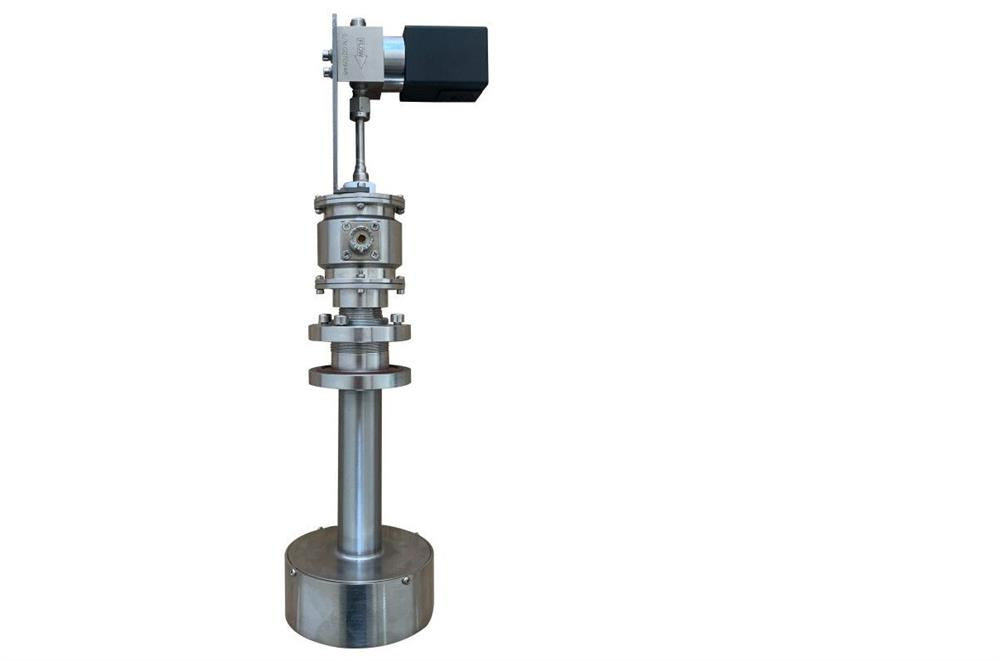

 PESH-4 is a 4'' Dia. Shower Head for DIY of Plasma CVD system. It is a necessary tool to coat a thin film by CVD or ALD method.

Structure
  • Material:  SS 304
  • One 24DC solenoid valve on the top to control gas or vapor delivery electronically
  • The power cable of the RF plasma generator is inserted into the showerhead
  • 13.56 MHz FR generator is required to produce a plasma ( click picture below to order )
Pin Hole Size
1.0  mm Dia.
Shower

 Double-layer shower to make gas delivering more uniform
Dimension
( Click picture right  for details)
Warranty 1-year limited warranty with lifetime support
Weight 2 lbs
