300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
  • 300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
  • 300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
  • 300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
  • 300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
  • 300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
  • 300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002
300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002

300 kg Pneumatic Nail Penetration Tester for All Types of Li-Ion Batteries - MSK-800-TE9002

SKU: 300-kg-pneumatic-nail-penetration-tester-for-all-types-of-li-ion-batteries-msk-800-te9002

Price: RFQ

Specifications

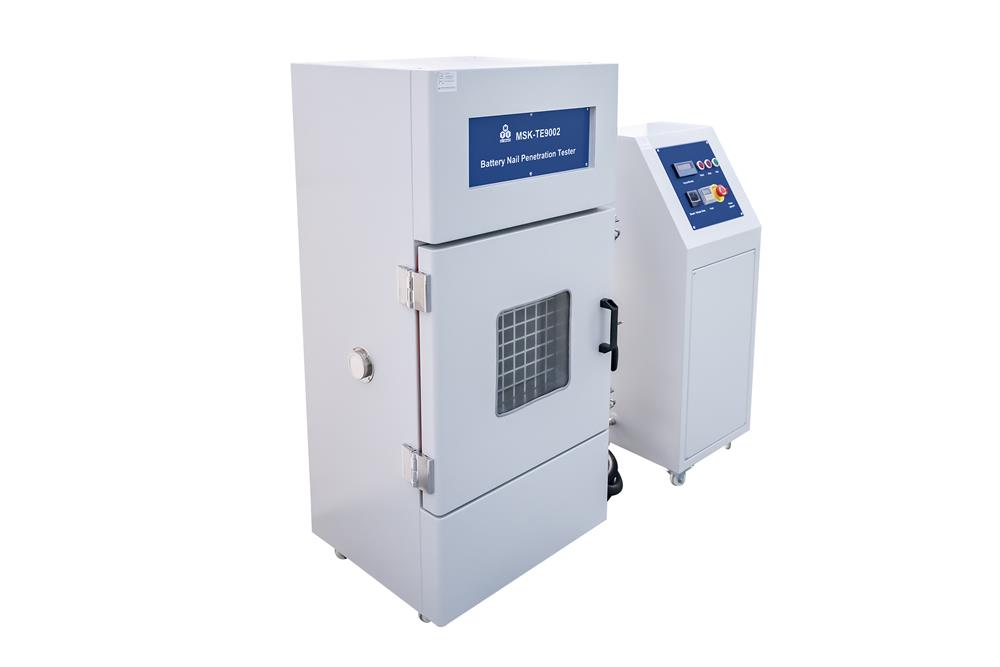

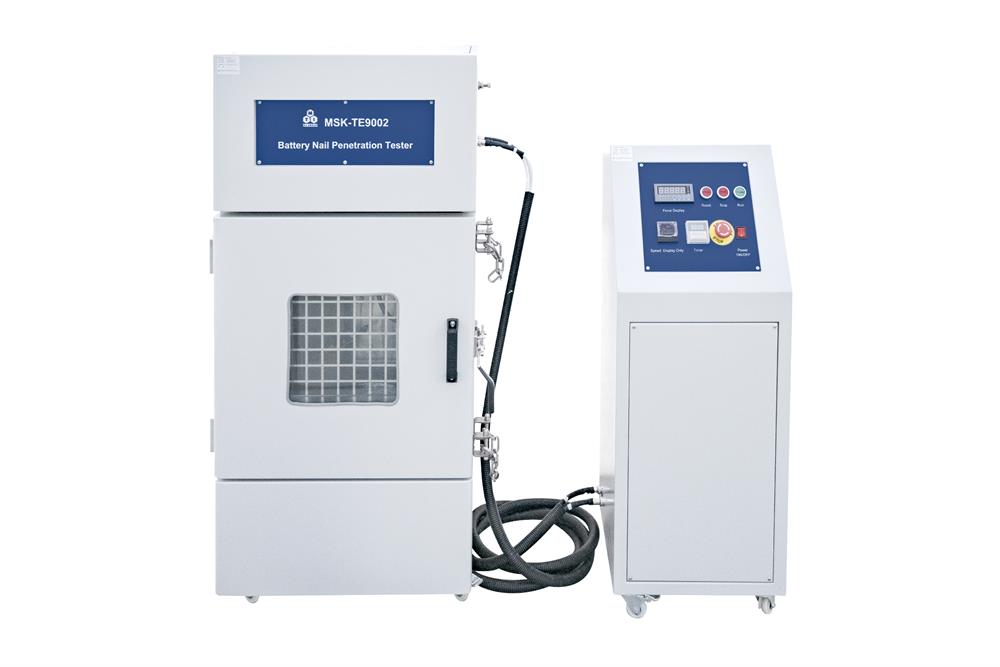

 MSK-800-TE9002 is an economic nail penetration tester for all types of rechargeable batteries, which meets the CE standards. The nail penetration is performed inside a safe and vented stainless-steel test chamber using a 2~8 mm diameter steel nail at variable speed from 10~100mm/s. A dedicated fixture for tightening various types of cells, such as pouches or cylinders is installed in the test chamber. This is an essential tool for advanced research on rechargeable batteries. SPECIFICATIONS: Power 208V- 240VAC, 300W To use the equipment at 110 V, please order a 300W transformer Accessories The driving force is adjustable by the air cylinder valve Digital Display for impact force and speed on the control panel Minimum 0.4 MPa (58 psi) air compressor with 2 gallons tank is required to drive the machine ( Air Compressor is not included, please order it locally or order separately by clicking underlined) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator (pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator pic1 pic2 Penetration Force 0 ~ 300 kg Suitable for single-cell and small battery pack Steel Nails Seven steel nails (2mm, 3mm, 4mm, 5mm, 6mm, 7mm & 8mm diameter, one each) are included in the standard package, please click the picture on the left to view details Length: 100 mm Other diameter nails can be ordered upon request Penetration Speed 10~100 mm/s adjustable Dwell Time 0-9999 seconds Working temperature 0 – 50 °C, 15 - 85% RH Operation Chamber Pouch Cell Cylindrical Cell The chamber inside is made of stainless steel to resist fire and is easy to clean There is a front observation window which is made of double layers of high-strength glass Chamber size: 16" x16 "x 16", (400 x 400 x 400mm) Max. sample size can be accommodated: 8" x 8" x 8" (200 x 200x 200 mm) Feedthrough ports: One (1) port (50 mm Dia.) with a cap on the left for cords Please click the picture to the left to view the details Features on the Back Pressure Release Door: 200mm (L) x 200mm (H) in the back, which will open for pressure release during an explosion. Air Circulation: 100 mm Dia. pipe with an exhaust fan on the back, which may be connected to the vent port in the facility via a tube (not included, please order at a local hardware store) Compliance CE certified only Application & Safety Note The max capacity of Li-Ion batteries to be tested in the chamber should be limited to 4.2V@ 40Ah for a single-cell or 160Wh for a battery pack without protection circus The equipment must be put in an isolated fire-proof room or fume-hood with a venting & extinguish system The operation unit shall be located in the outdoors or fume-hood


Power
  • 208V- 240VAC, 300W
  • To use the equipment at 110 V, please order a 300W transformer
Accessories
  • The driving force is adjustable by the air cylinder valve

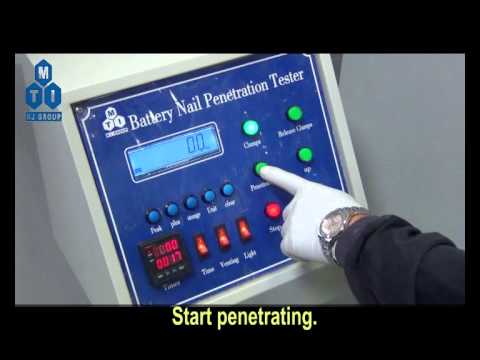

  • Digital Display for impact force and speed on the control panel
  • Minimum 0.4 MPa (58 psi) air compressor with 2 gallons tank is required to drive the machine
    • (Air Compressor is not included, please order it locally or order separately by clicking underlined)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator (pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator
     pic1  pic2
Penetration Force
  • 0 ~ 300 kg
  • Suitable for single-cell and small battery pack
Steel Nails
  • Seven steel nails (2mm, 3mm, 4mm, 5mm, 6mm, 7mm & 8mm diameter, one each) are included in the standard package, please click the picture on the left to view details
  • Length: 100 mm
  • Other diameter nails can be ordered upon request
Penetration Speed
  • 10~100 mm/s adjustable
Dwell Time
  • 0-9999 seconds
Working temperature
  • 0 – 50 °C, 15 - 85% RH
Operation Chamber

 Pouch Cell Cylindrical Cell
  • The chamber inside is made of stainless steel to resist fire and is easy to clean
  • There is a front observation window which is made of double layers of high-strength glass

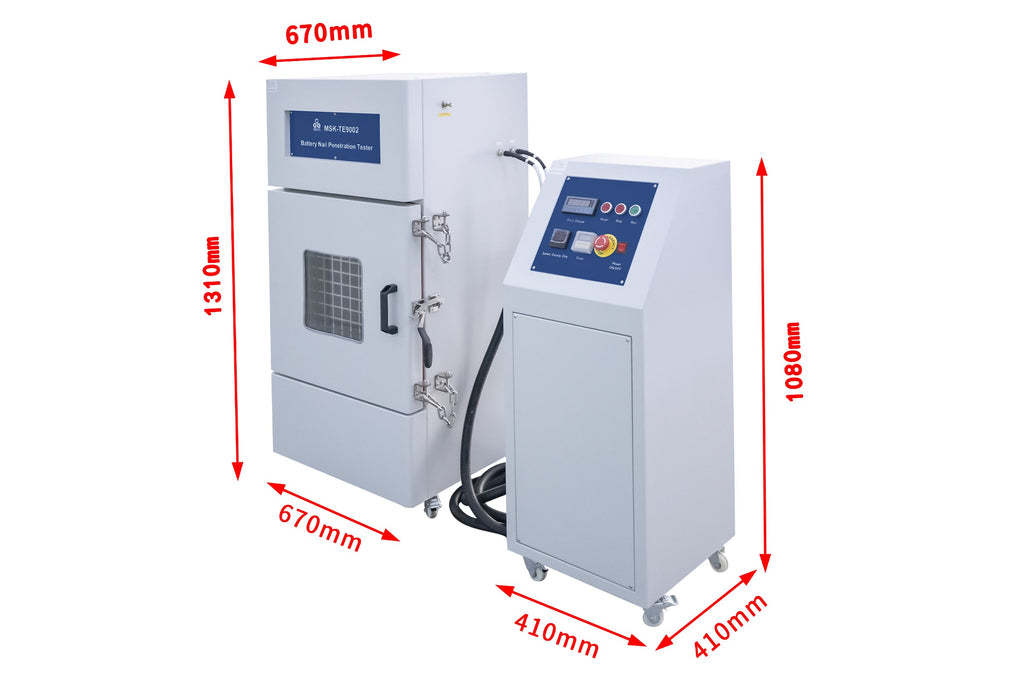

  • Chamber size: 16" x16 "x 16", (400 x 400 x 400mm)
  • Max. sample size can be accommodated: 8" x 8" x 8" (200 x 200x 200 mm)
  • Feedthrough ports: One (1) port (50 mm Dia.) with a cap on the left for cords
  • Please click the picture to the left to view the details
Features on the Back

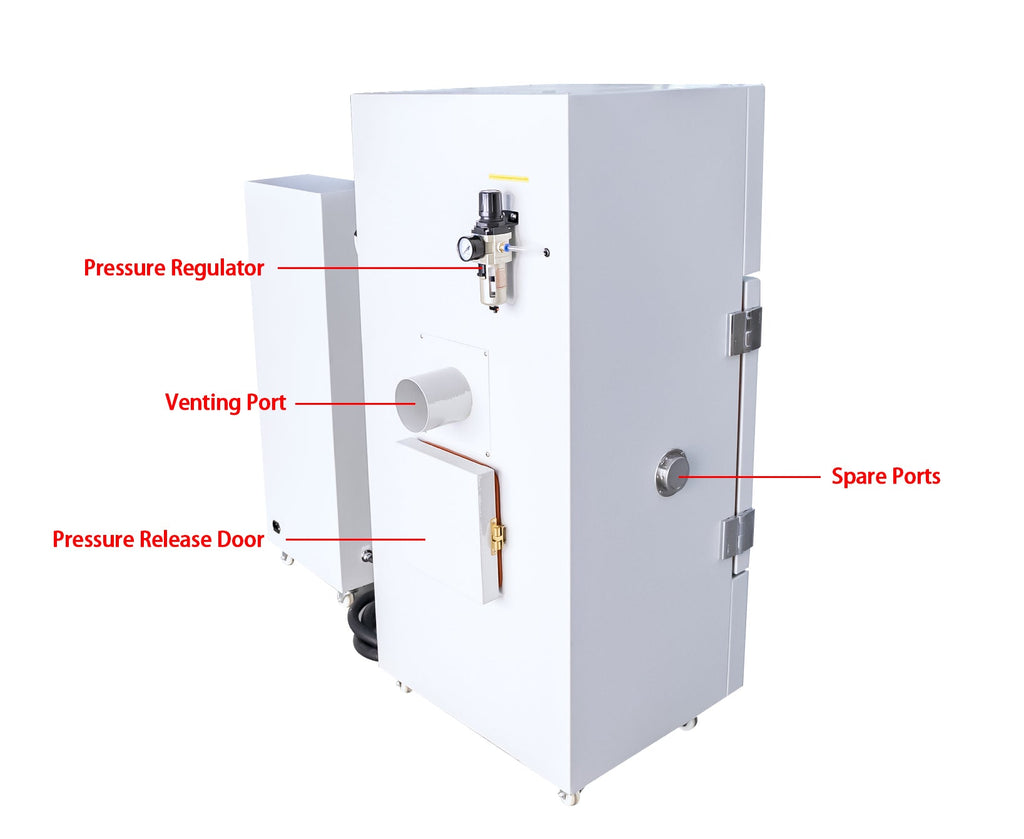

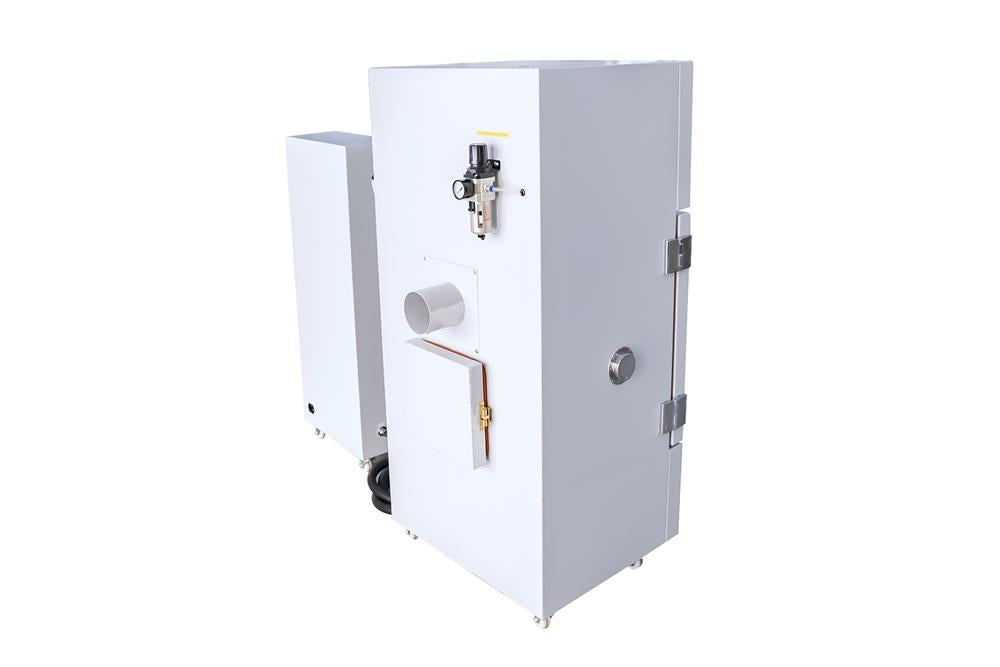

  • Pressure Release Door: 200mm (L) x 200mm (H) in the back, which will open for pressure release during an explosion.
  • Air Circulation: 100 mm Dia. pipe with an exhaust fan on the back, which may be connected to the vent port in the facility via a tube (not included, please order at a local hardware store)
Compliance
  • CE certified only
Application & Safety Note
  • The max capacity of Li-Ion batteries to be tested in the chamber should be limited to 4.2V@ 40Ah for a single-cell or 160Wh for a battery pack without protection circus
  • The equipment must be put in an isolated fire-proof room or fume-hood with a venting & extinguish system
  • The operation unit shall be located in the outdoors or fume-hood
