1500°C Max. Thermogravimetric Tube Furnace ( 50 mm OD) - OTF-1500S-TGA

• Sample size 1 - 10 g.
• Digital balance with an accuracy of 0.1 mg
• Maximum crucible size Ø40×40H mm
• In-situ temperature measurement, up to 1500±0.1°C

• Air-tight configuration, measurements under controlled atmosphere and vacuum.
• 1/4" gas inlet and gas outlet and a KF25 vacuum port
• PC remote control, communication, and data logging.

• 208-240VAC, 1 ph, 50/60Hz
• 2500W

• Continuous working temperature < 1500°C @ 1 atm, <1400°C @ vacuum
• SiC heating elements
• Heating zone: 150 mm
• Temperature uniformity zone: 50 mm @ ±2°C
• Heating rate ≤ 20/min

• 99.5% alumina tube, Ø50×Ø42×1000L mm
• One pair of SS 304 flanges for alumina tube
• 1 needle valve and 1 1/4" compression tube fitting for each flange.
• One 1/4" quick-connect thermocouple fitting.
• One Vacuum/ pressure gauge is installed on one side of the flange

• Eurotherm 3000 programmable temperature controller
• 28 Segments of programmable temperature control via a dedicated computer and software
• +/- 0.1 ºC temperature accuracy
• Cascade temperature control
• S-type thermocouple
• Cold junction temperature compensation

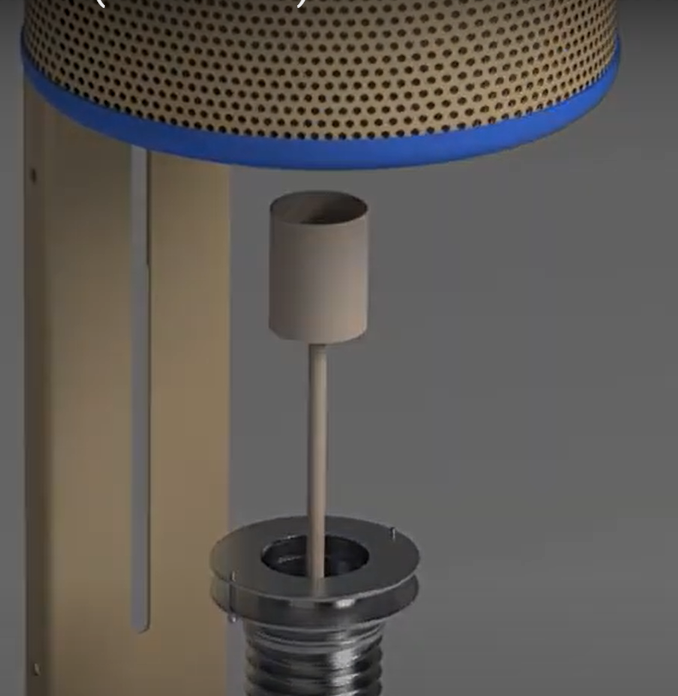

• A precision electronic balance (made in Germany) is located at the bottom of the heating chamber
• Accuracy:  0.001 g resolution
• Sample amount: 1 g minimum;  10 g maximum
• Weight change curve vs temperature will show and recorded on the laptop included

• Four alumina crucibles (8 ml) are included
• Alumina Crucible: High Purity 25 dia. x 25H mm ( 8 ml) Cylindrical with Lid - EQ-CA-D25H25

• The TGA  can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pumpPic. 2)
• Please click the picture below to order the pump and gas delivery system (Pic 3separately:
•

 Warranty

• One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

 Compliance

• CE Certified
• NRTL or CSA certification is available upon request at extra cost.

Dimension

Reference Video
