Specifications

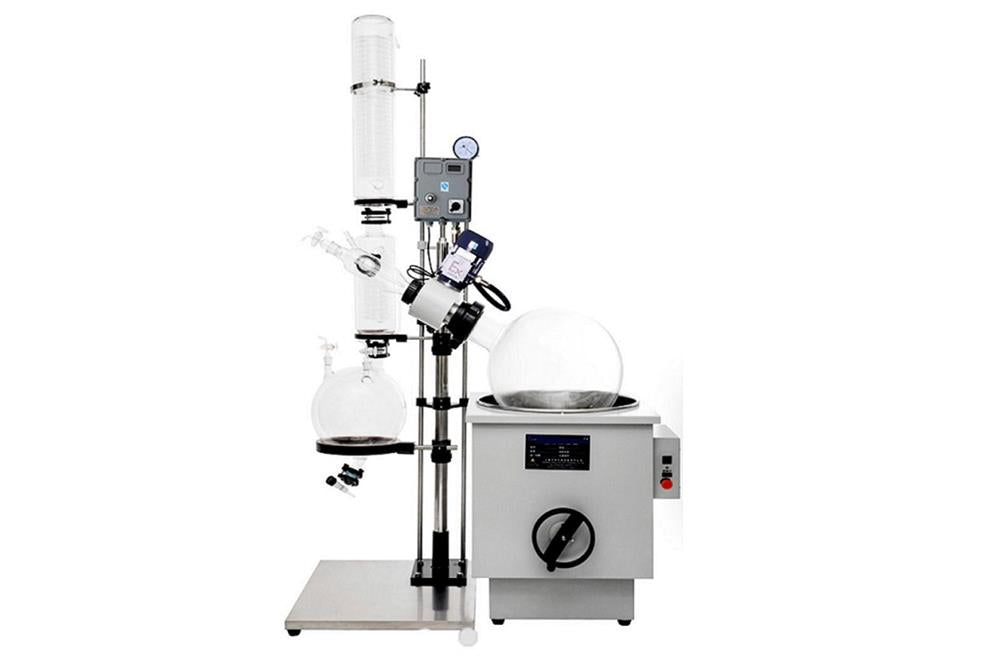

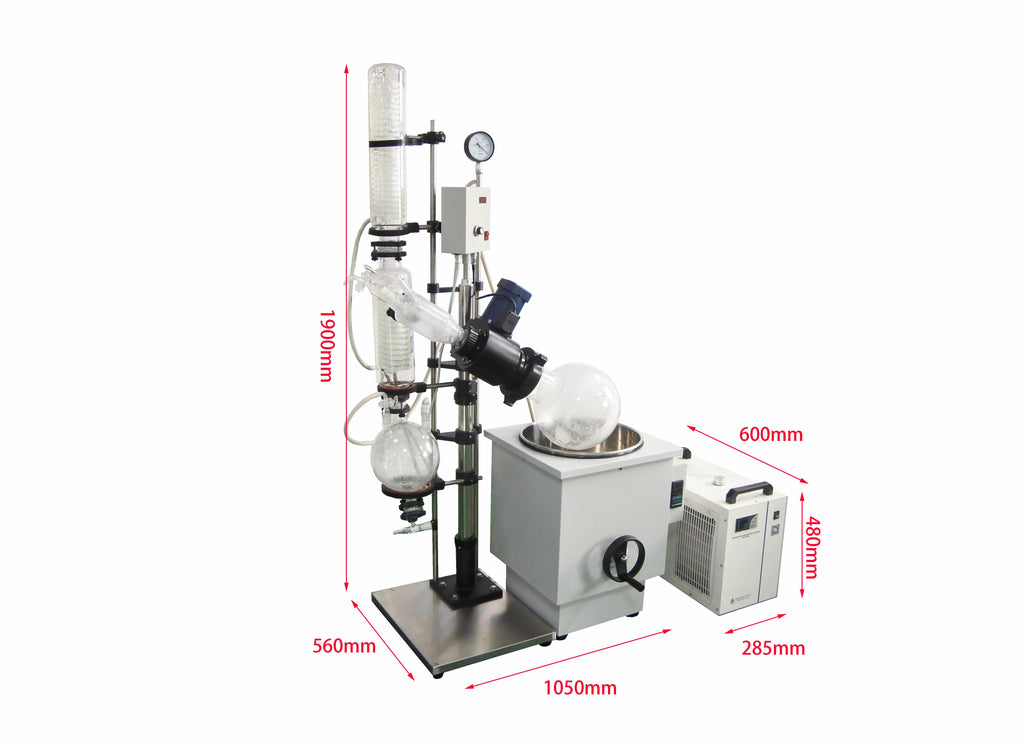

RE-1002 is a rotary evaporator with a 10L stirrer and 5L collector It is an essential tool for the efficient removal of solvents from samples in chemical research. The RE series rotary evaporator heats the rotating flask in a water bath at a pre-set speed, causing the solvent to evaporate. It then cools the material through a pressure-reducing cooling unit consisting of a condenser and a vacuum acquisition device.
Features
|
- Digital control for rotating speed and heating temperature
- Once out of power, the brushless DC motor can automatically load the evaporating flask to a safety position
- Speed range from 0 to 120 rpm
- Stainless steel heating bath with a temperature range from room temperature to 180°C
- Vertical or Diagonal condenser with 0.44 m^2 cooling surface
|
| Power |
- AC 208 - 240V, 50/60 Hz, single phase
- Maximum power: 3500 W
- Heating bath: 3000 W
- Rotating Motor: 200 W
|
Rotating
|
- DC motor for rotating with digital speed display
- Speed Range: 0 - 120 rpm
- Stroke (for lifting): 150 mm
|
| Heating |
- The stainless steel heating bath: 10 Liters
- Temperature range: RT - 99 °C by water bath, and 200°C max. by oil bath
- Temperature accuracy: +/-0.2 °C
- Ambient environment temperature: 5 - 40 °C
|
| Glassware |
- Evaporating flask: 10 L
- Standard evaporating receiving flask: 5 L
- Manually lifting
|
| Evaporating Speed: |
- ~ 3.2 L/ hr. for water
- ~ 8.6 L/ hr. for ethanol
- Condensation area: 0.57 square meters
|
|

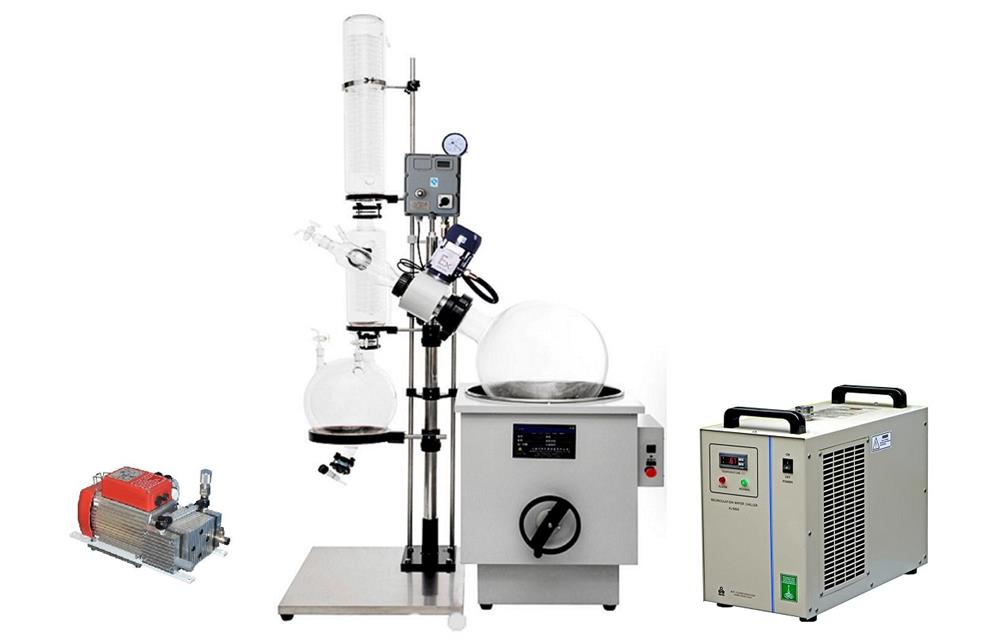

Vacuum
and Water Chiller
|
- One oilless vacuum pump ( Made in Germany is included with Max. vacuum 2.62 Torr ( Click Pic. 1 for details specs)
- A 16 L/minute and 5- 30 °C recirculating water chiller is included, 5- 30 °C (Click Pic. 2 for details specs)
 Oilless Vacuum pump PiC. 1  water chiller Pic. 2
|
| Net Weight |
|
| Compliance |
- CE
- NRTL or CSA certification is available upon request
|
| Warranty |
- One year limited warranty with lifetime support
|
| Demo Video |
|
| Operation Video |
|
https://www.youtube.com/watch?v=_iralNy2_WY
