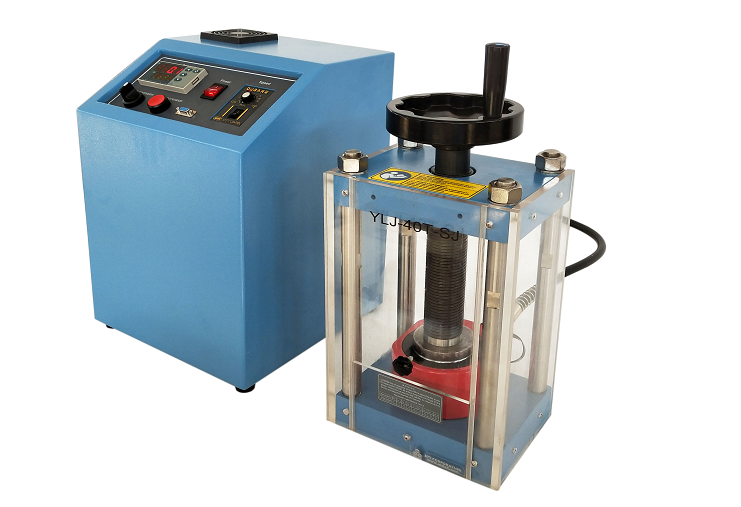

40T Lab Press with Programmable Electric Hydraulic Pump - YLJ-40TA-PE

Motorized  Hydraulic Pump

• Input Voltage:208-240VAC, 50/60Hz (110V version is available via 500W transformer)
• Output Power: 150W
• 180 W AC motor

• Built-in digital pressure controller, which is 30 segments programmable to set up multi-pressure and dwell time during raising pressure. (Pressure settings have to be monotonically increasing. Multi-step pressure relief is not allowed.)
• One pump speed controller is built in to adjust the pump speed
• KF40 feed-through can be installed on the pipe, which allows the pipe is inserted into a glovebox and connected to the press machine. The feedthrough is not included in the standard package and can be ordered at an extra cost.
• RS485 port is built-in on the control panel for PC operation.
• PC software based on Labview is available upon request at an extra cost. ( You must inform us in advance if you need PC operation, and suggest you buy a laptop from us for pre-test )

• 40 Metric Ton for pressing machine
• 65 MPa for the electric pump
• The transparent protection cover is built in the front of the pressing machine

• ±0.5MPa in high pumping speed ±0.1 MPa in low pumping speed

• ISO46, 1.5 L

• ZG3/8, 1 meter long

• 3 meters long hydraulic hose with a KF40 feedthrough flange is optional which allows the machine to work inside the glove box.

• 0 - 12 mm

• 150mm x 150mm x 150mm

• P: pressure (Mpa) applied to your working piece
• T: force (metric ton) applied to the pressure vessel cylinder
• g: standard gravity. g ≈ 9.8 m/s2
• π: ~3.14
• r: radius (cm) of the pressure vessel (1.5 cm)
• *1000 Kg = 1 Metric Ton; 1 Mpa = 10 Kg/cm2

• 10 - 40°C

• Pressing Unit Dimensions: 240mm x 210mm x 670mm (L x W x H, H is included with the handwheel lifting to the highest position )
• Control Unit Dimensions: 220mm x 200mm x 480mm (L x W x H)

• CE Certified

Pressure Display on the gauge (MPa)

6

13

19

26

32

39

46

53

Force on Hydraulic Cylinder (T)

5

10

15

20

25

30

35

40
